Cruise Control Does Not Operate

Test Description

The number(s) below refer to step(s) on the diagnostic table.

(5) The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

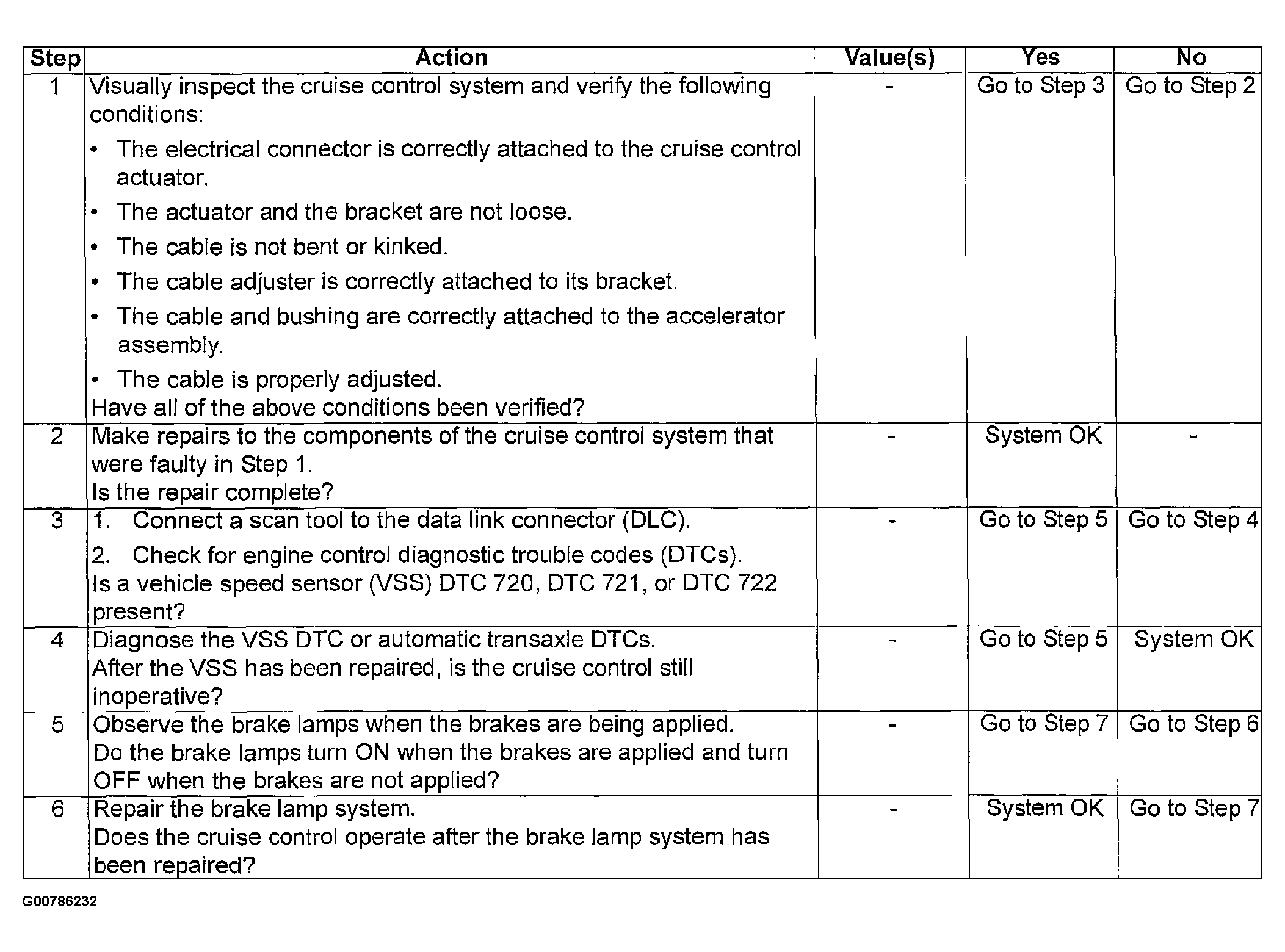

Fig 1: Cruise Control Does Not Operate Chart (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

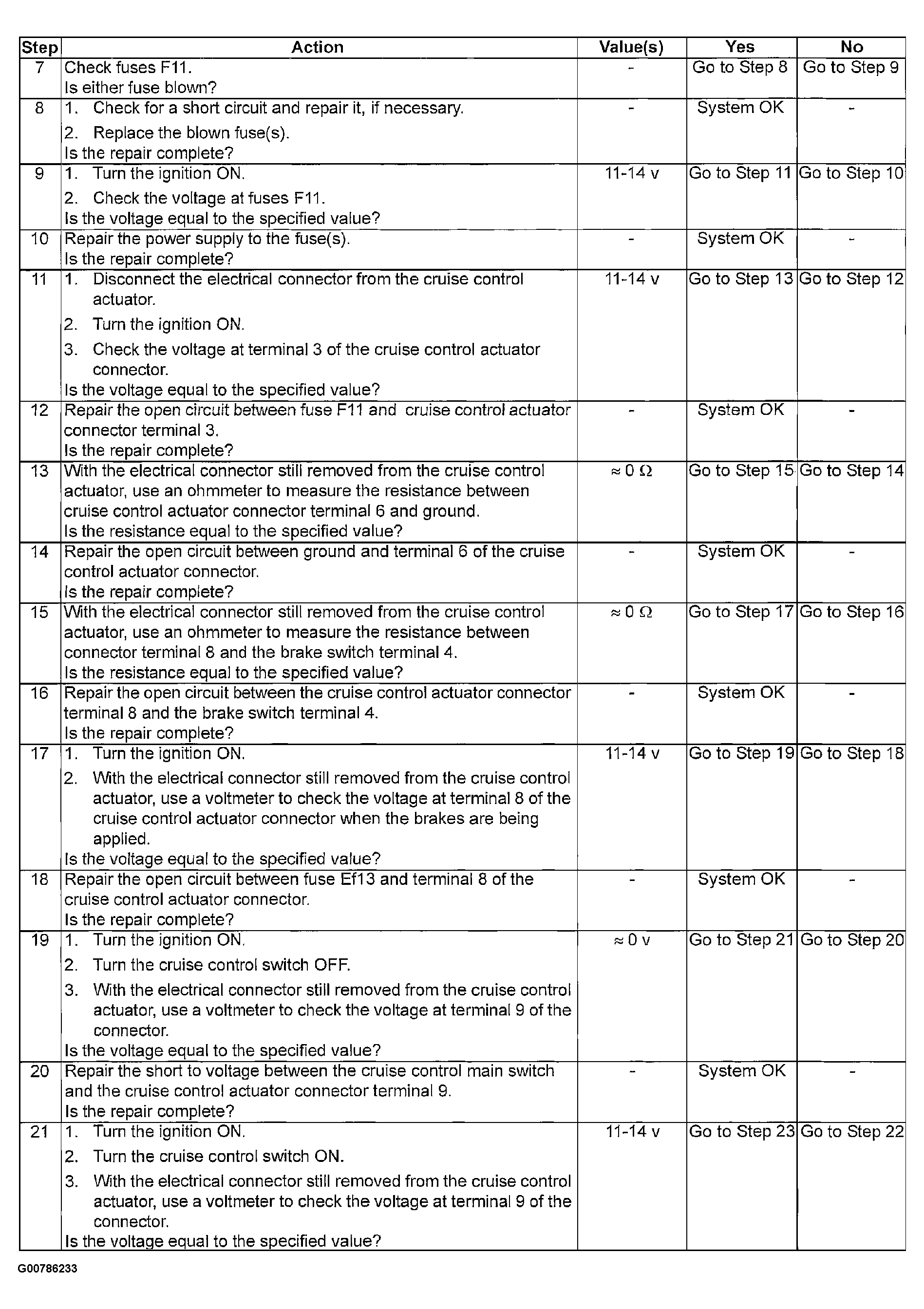

Fig 2: Cruise Control Does Not Operate Chart (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

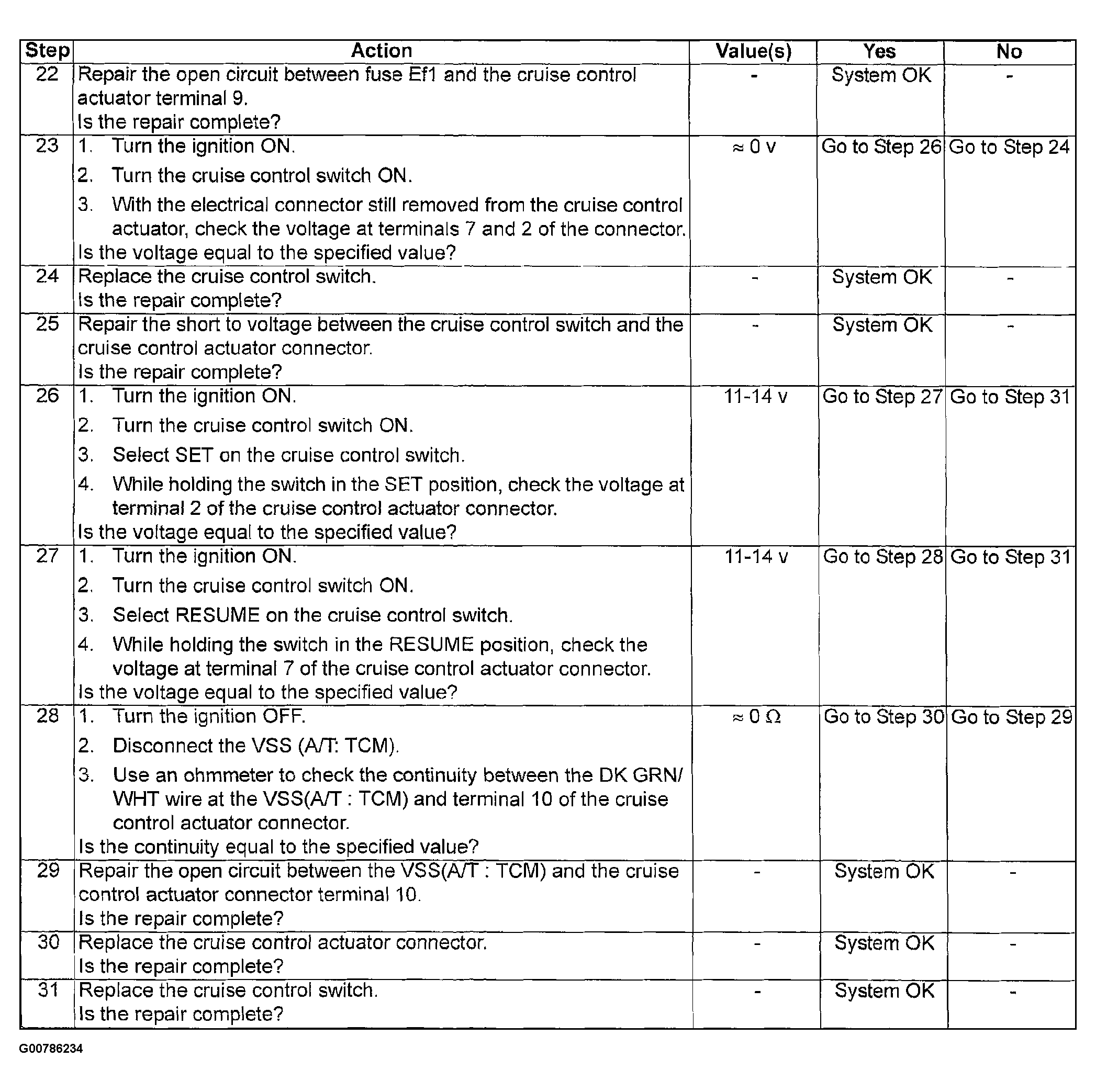

Fig 3: Cruise Control Does Not Operate Chart (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
