Transaxle Components

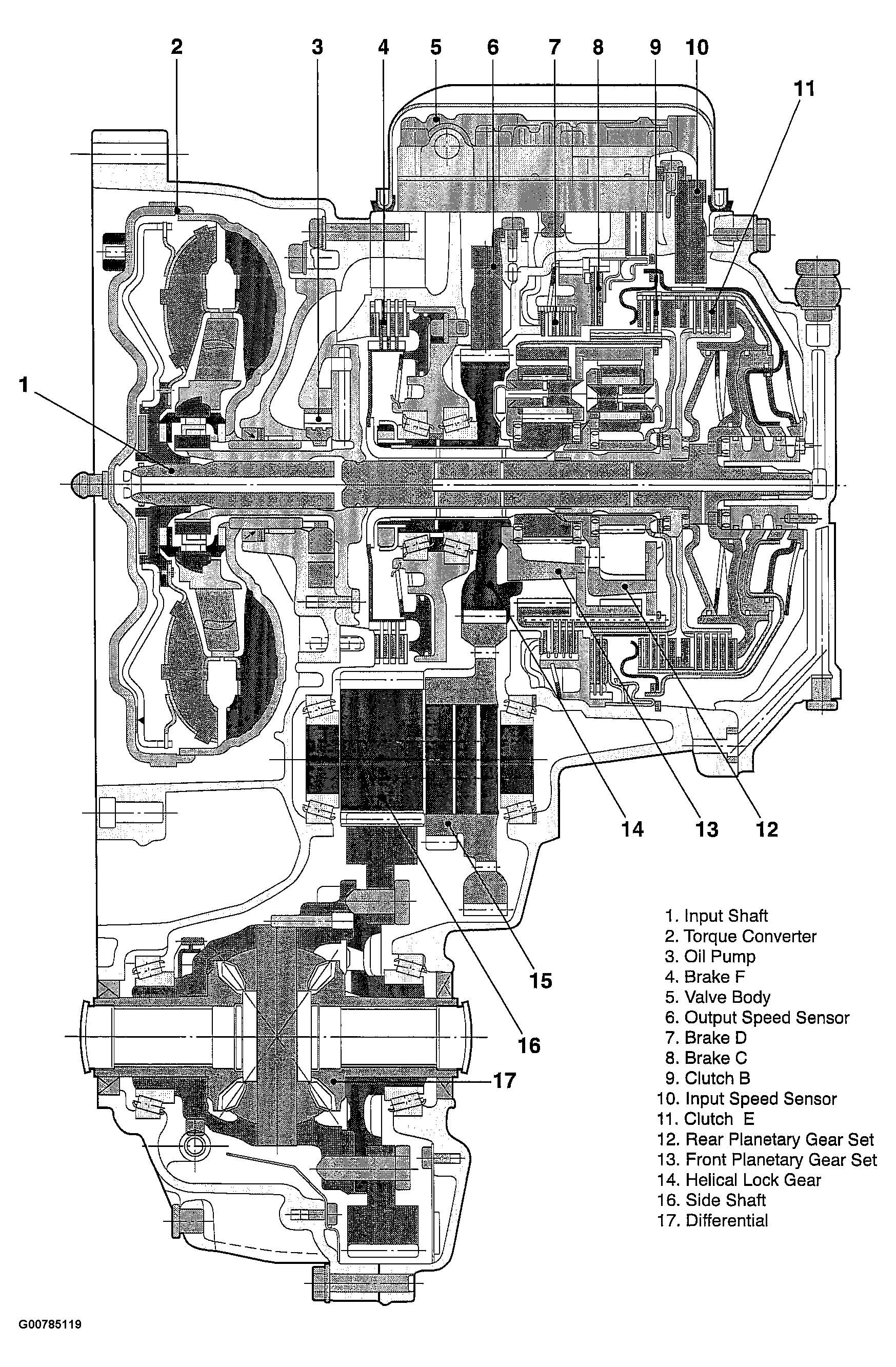

Fig 1: Cut-Away View Of ZF 4HP 16 Automatic Transaxle
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
