System Specifications

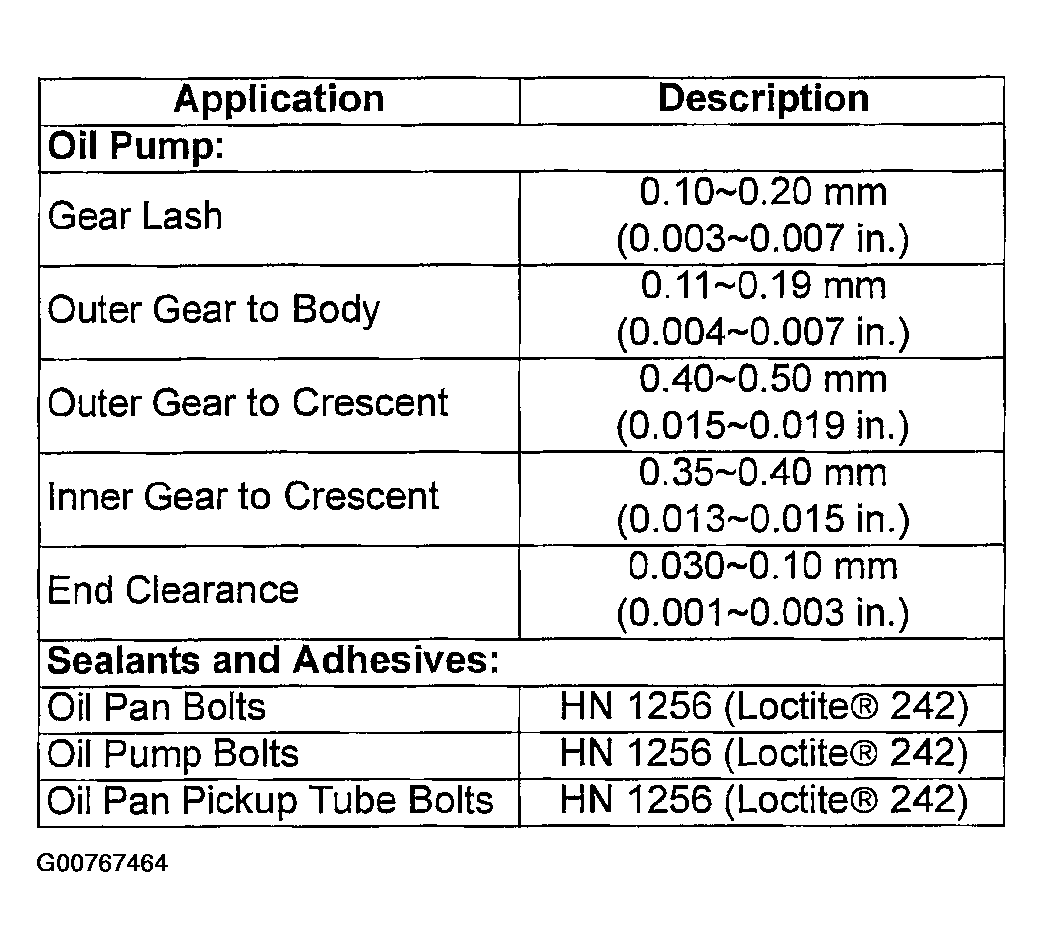

Fig 1: System Specifications Chart (1 Of 2)
G00767464Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: System Specifications Chart (2 Of 2)
G00767465Courtesy of SUZUKI OF AMERICA CORP.
