Draining & Refilling
- Lift up vehicle.

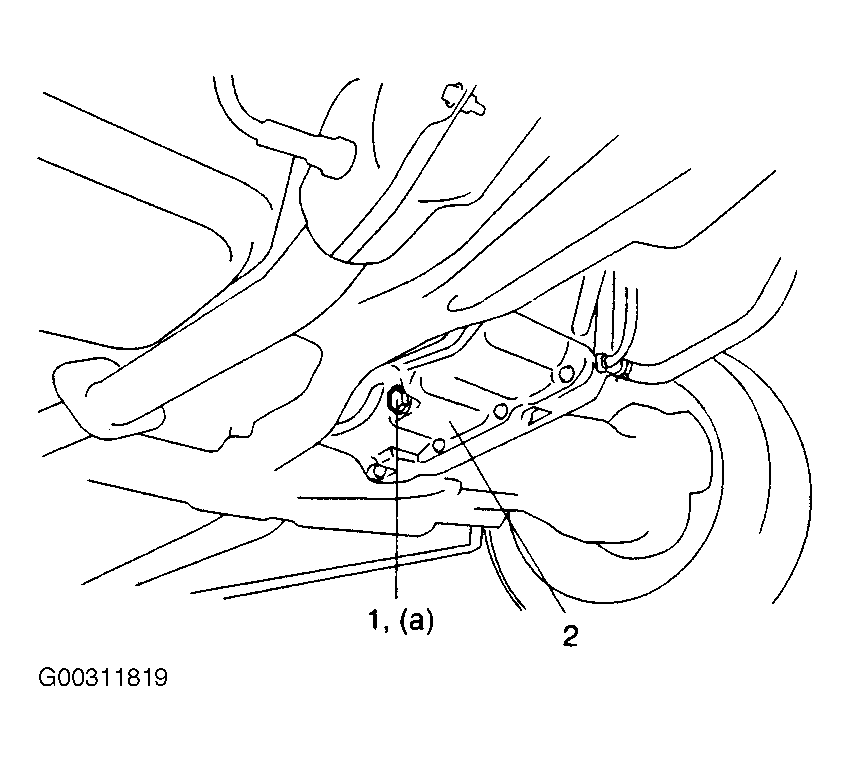

- When engine is cool, remove drain plug "1" from transaxle housing "2" and drain Automatic Transmission Fluid (ATF). See Fig 1 .
- Install a new gasket to drain plug "1".
- Install drain plug "1".
- Lower vehicle and fill with proper amount of recommended fluid. See RECOMMENDED FLUID .
- Check fluid level, at normal temperature. See CHECKING FLUID LEVEL .
