Transmission Range Sensor: Inspection

  1. Disconnect transmission range sensor connector "1".

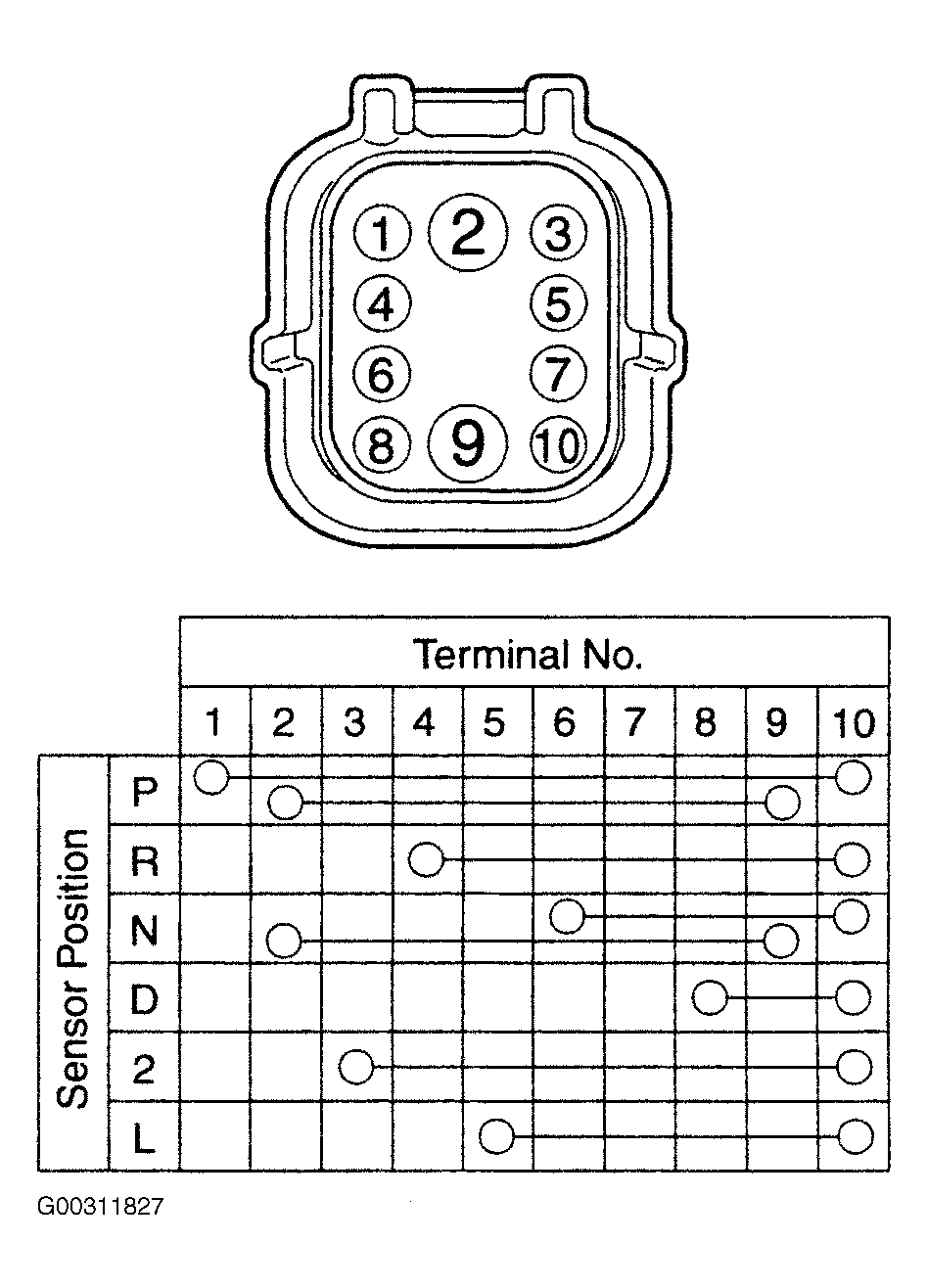

  2. Check that continuity exists at terminals in the following figure by moving select lever. If check result is not as specified, adjust switch. See Figure .
