Differential Side Oil Seal Replacement
WARNING: This page is about a different variant/trim than selected.
- Lift up vehicle and drain transaxle oil.
- Remove drive shaft assembly referring to AXLE SHAFTS .

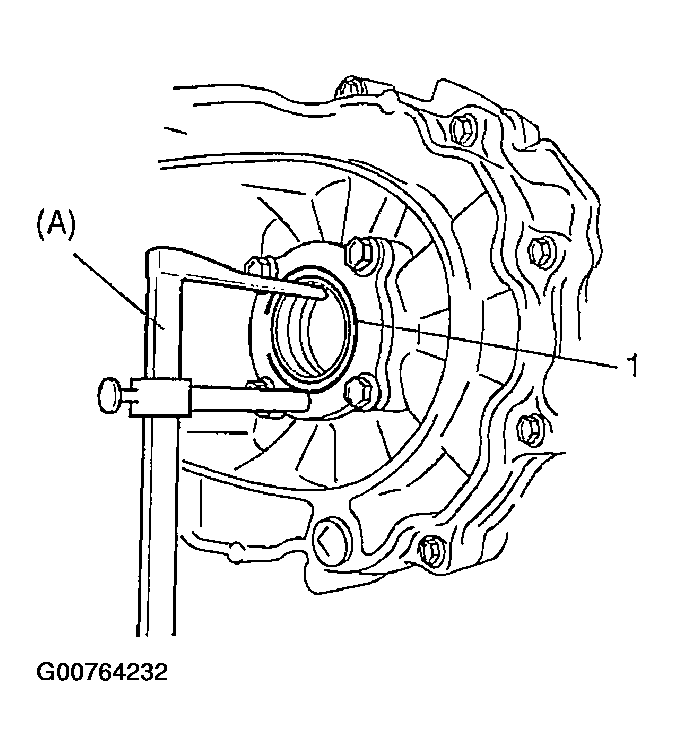

- Remove oil seal (1) by using special tool.
Special tool
(A): 09913-50121

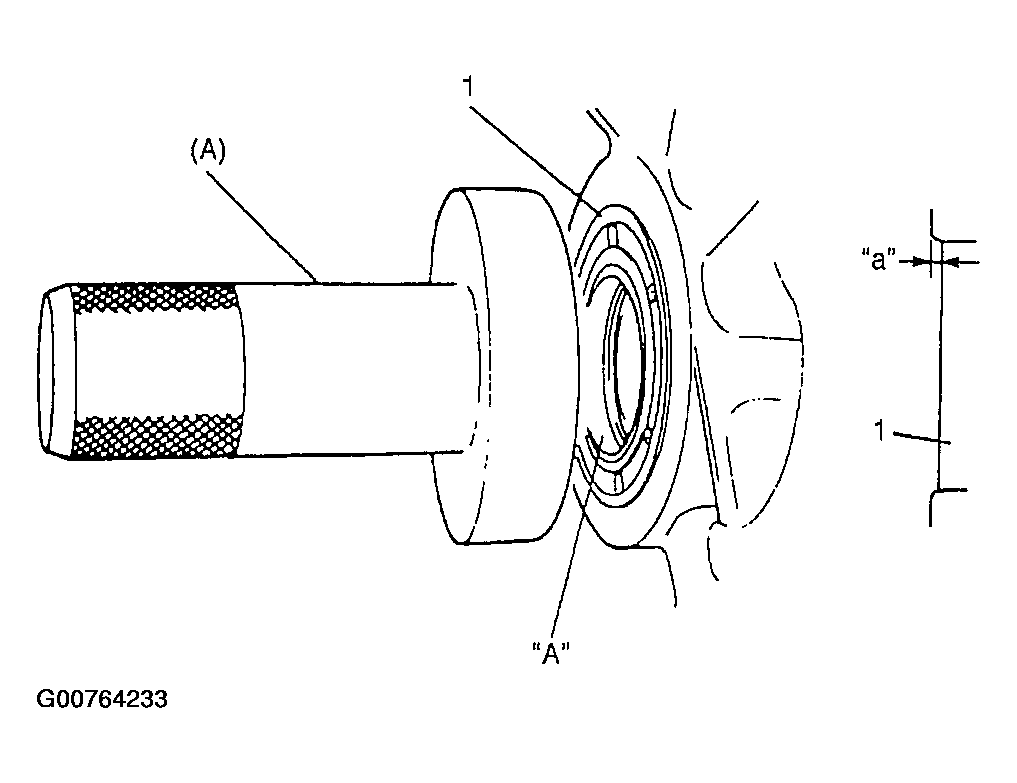

- Install oil seal (1) facing its spring side inward by using special tool and hammer.
Special tool
(A): 09913-85210
Distance between case surface and oil seal
"a": 0 - 0.5 mm (0 - 0.02 in.)
- Apply grease to oil seal lip and at the same time check drive shaft where oil seal contacts and make sure of its smoothness.
"A": Grease 99000-25010
- Insert drive shaft assembly or center drive shaft (1) to differential gear referring to AXLE SHAFTS .
- Install exhaust No. 1 pipe .
- Connect ball stud with knuckle referring to AXLE SHAFTS .
- Pour transaxle oil as specified and make sure that oil has been sealed with oil seal.
