EVAP Canister Purge Vacuum Passage Inspection

Start engine and run it at idle speed. Disconnect vacuum hose from EVAP canister purge valve. With finger placed. against hose disconnected, check that vacuum is applied.

If it is not applied, clean vacuum passage by blowing compressed air.

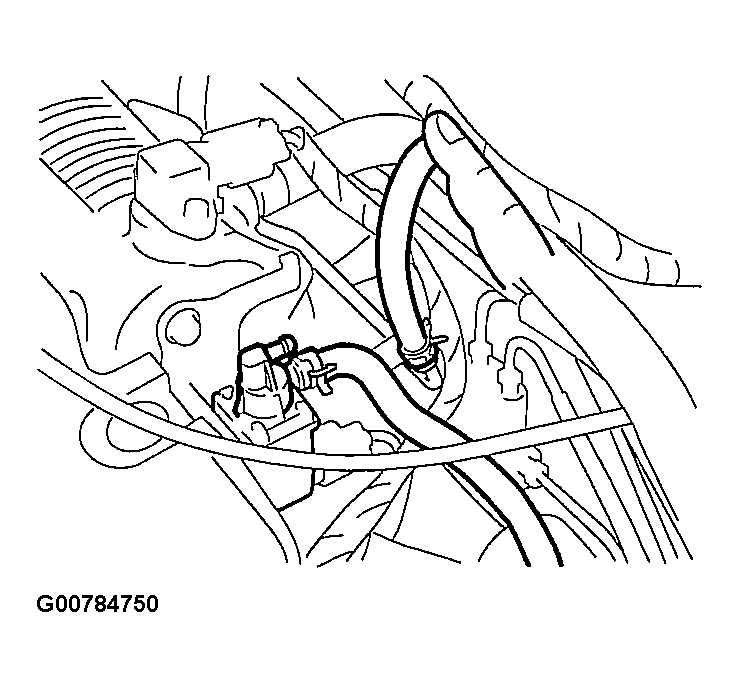

Fig 1: Inspecting EVAP Canister Purge Vacuum Passage
G00784750Courtesy of SUZUKI OF AMERICA CORP.
