Fuel Pump On-Vehicle Inspection

Using sound scope or such, check operating sound of fuel pump when ignition switch (2) turns ON. Fuel pump operating sound should be heard from fuel tank (1) for about 3 seconds and stop.

Fig 1: Inspecting Operating Sound Of Fuel Pump
Courtesy of SUZUKI OF AMERICA CORP.

If the check result is not satisfactory, advance to FUEL PUMP CIRCUIT CHECK .
Fuel pressure should be felt at fuel return hose (1) for 3 seconds after ignition switch ON. If fuel pressure is not felt, advance to FUEL PRESSURE CHECK .

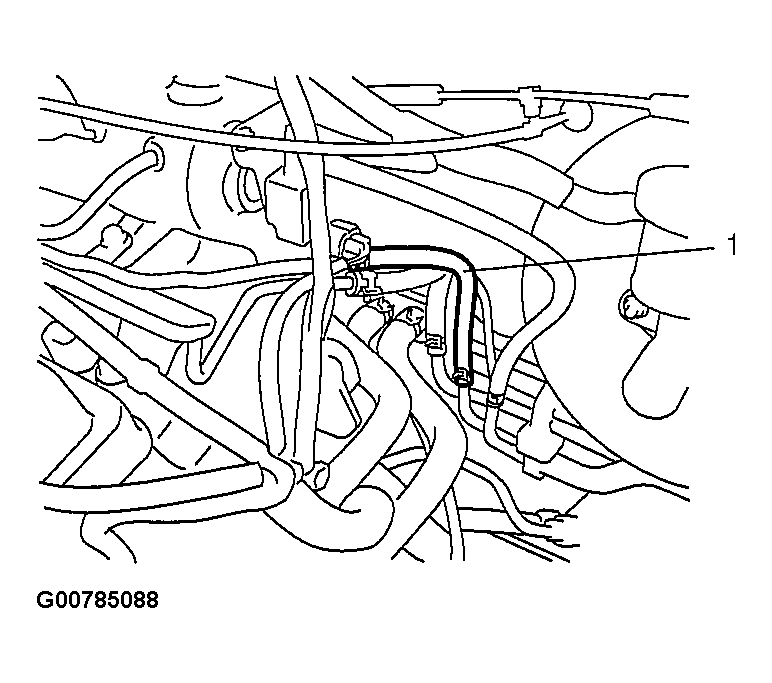

Fig 2: Locating Fuel Return Hose
Courtesy of SUZUKI OF AMERICA CORP.
