Connector: C46

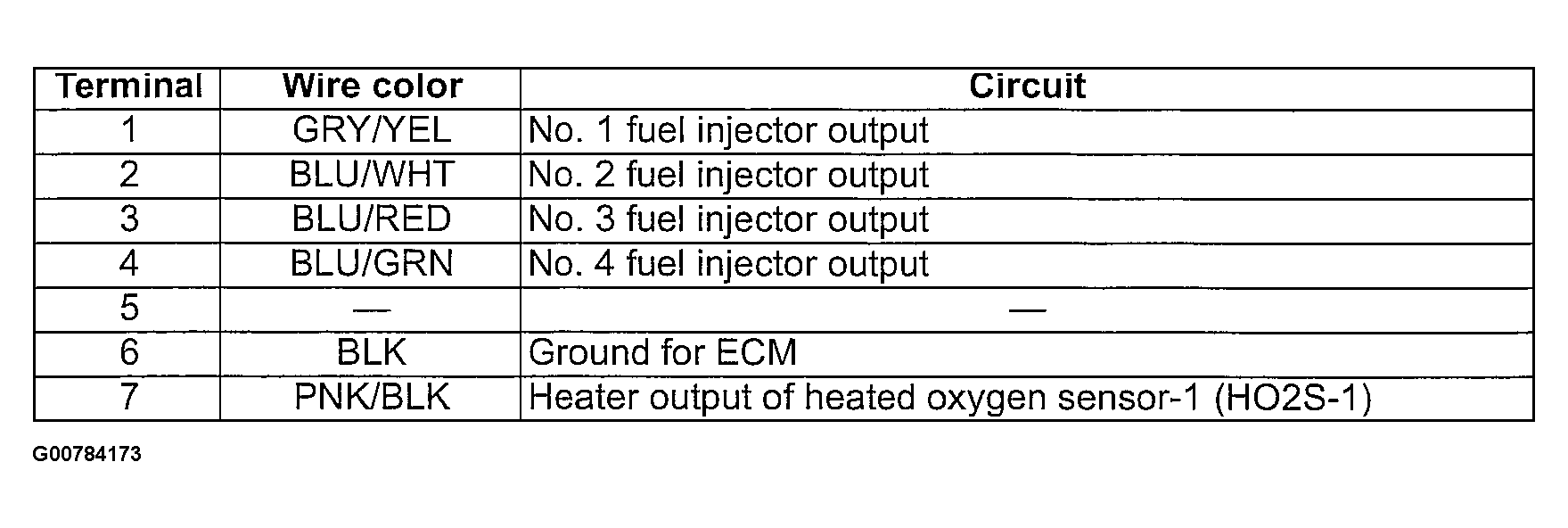

Fig 1: Terminal Connector C46 (1 of 2)
G00784173Courtesy of SUZUKI OF AMERICA CORP.

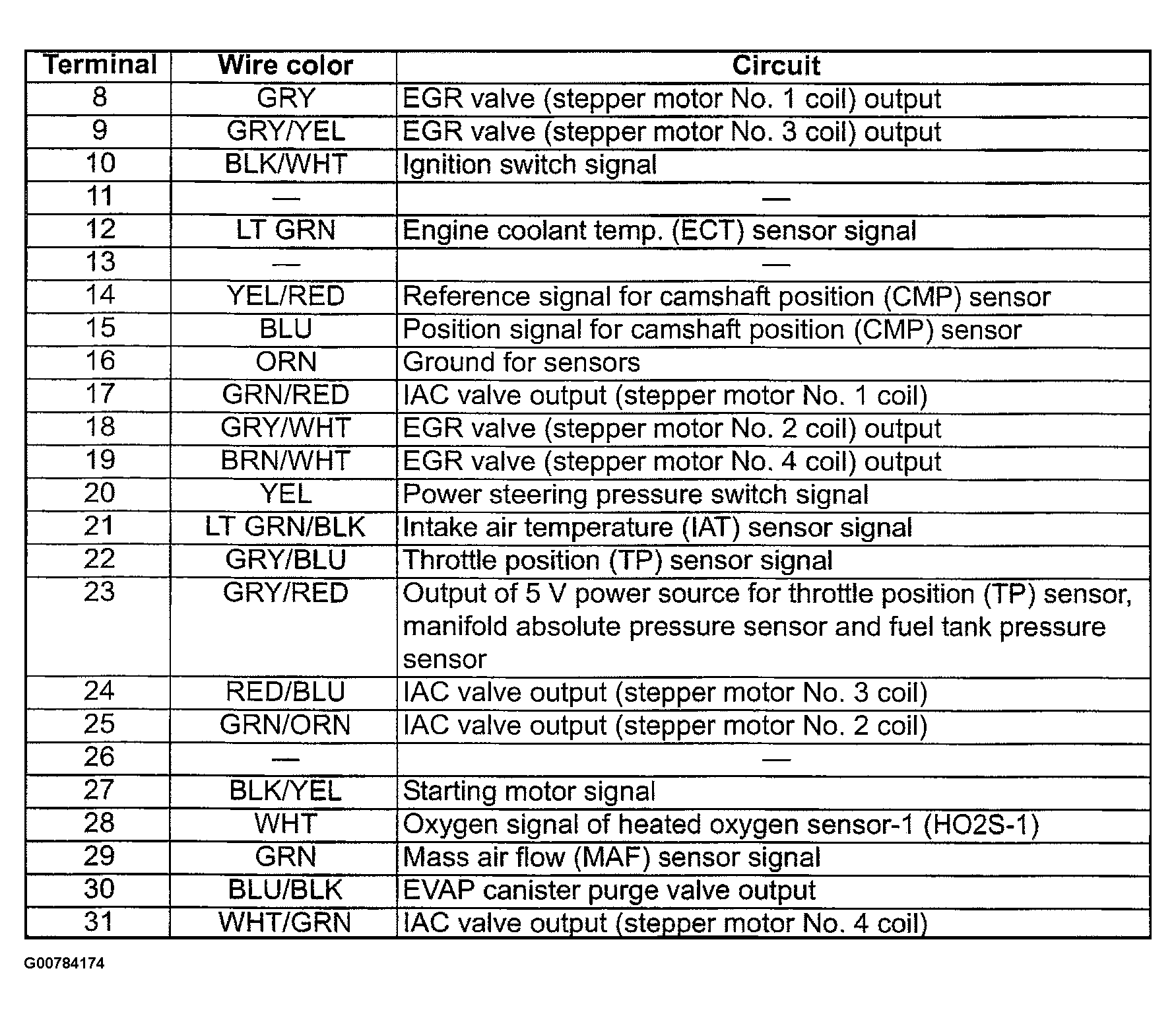

Fig 2: Terminal Connector C46 (2 of 2)
G00784174Courtesy of SUZUKI OF AMERICA CORP.
