Fail-Safe Table

When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.

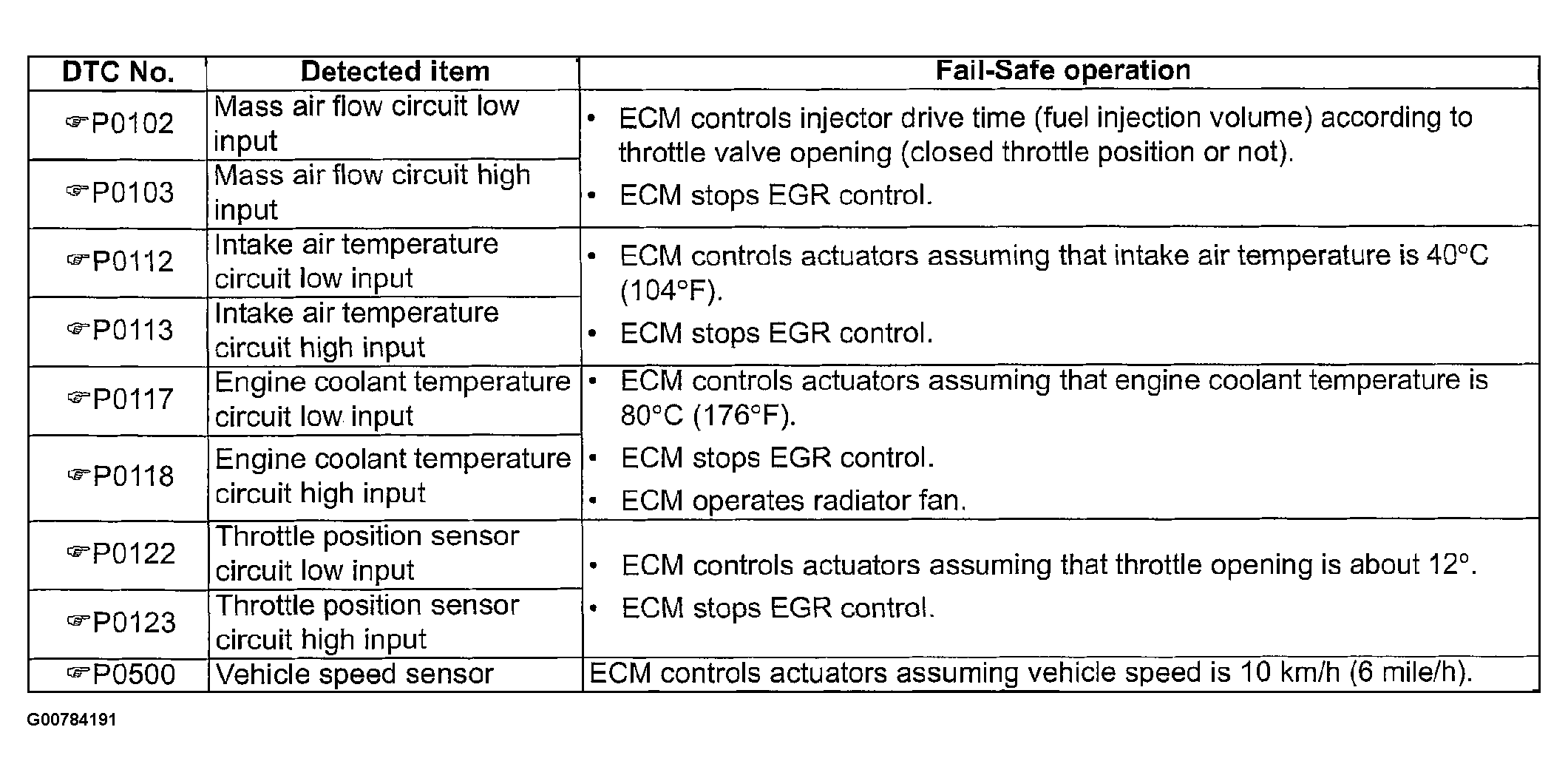

Fig 1: Identifying Fail-Safe Table
G00784191Courtesy of SUZUKI OF AMERICA CORP.
