System/Wiring Diagram

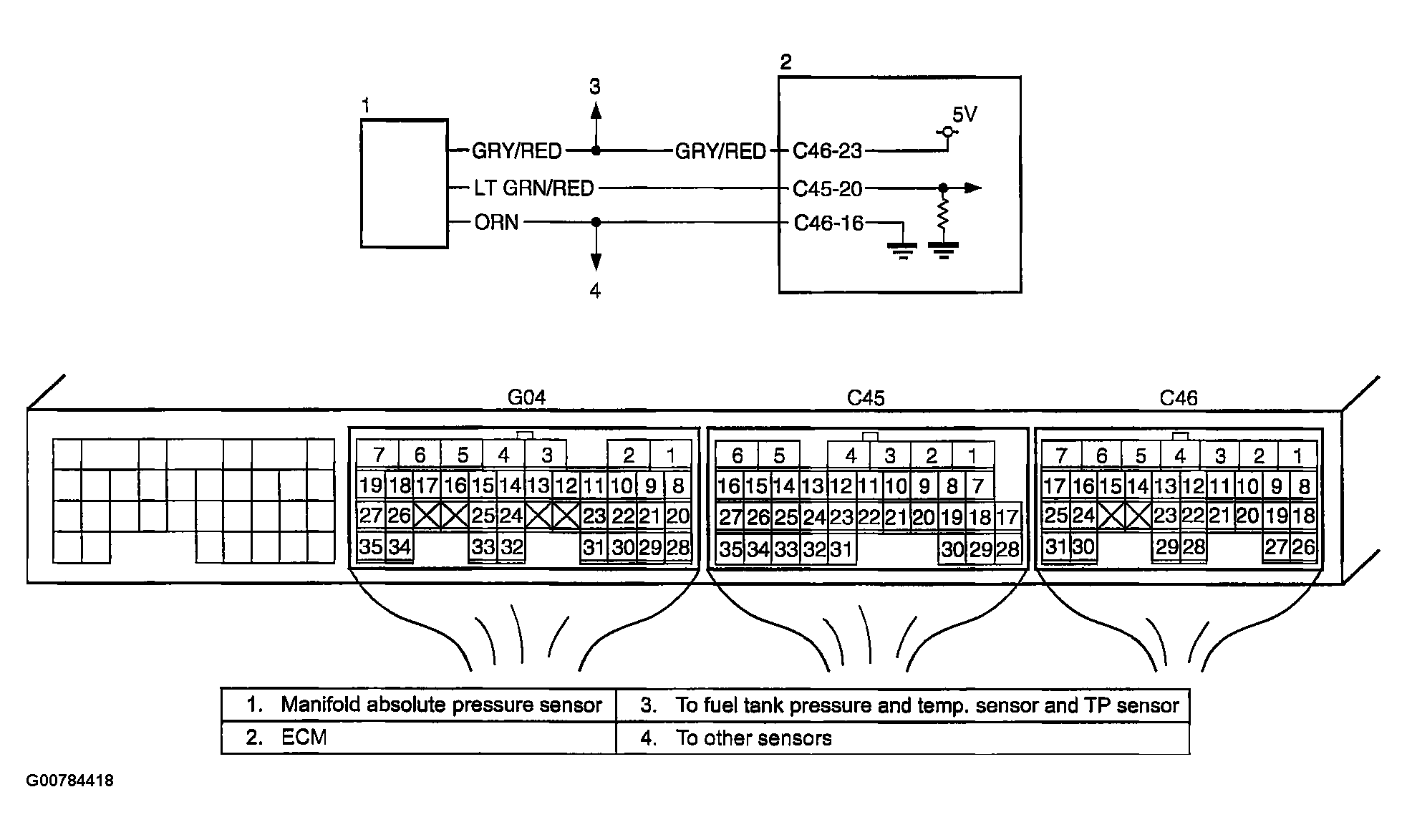

Fig 1: DTC P1108 Manifold Absolute Pressure (MAP) Sensor Rationality - High - System Wiring Diagram
G00784418Courtesy of SUZUKI OF AMERICA CORP.
