DTC Troubleshooting

Fig 1: DTC Troubleshooting Chart (1 of 3)
G00784420Courtesy of SUZUKI OF AMERICA CORP.

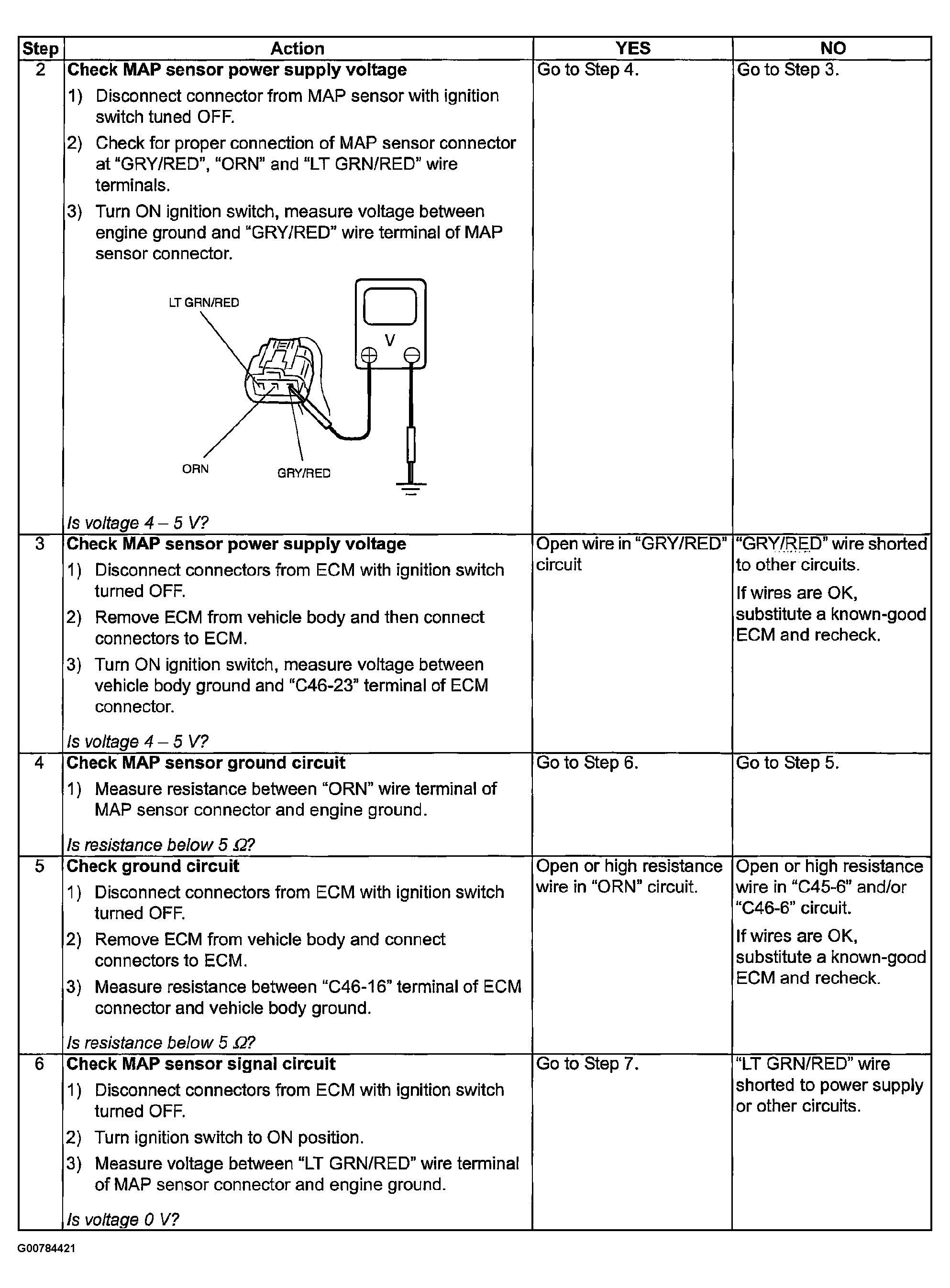

Fig 2: DTC Troubleshooting Chart (2 of 3)
G00784421Courtesy of SUZUKI OF AMERICA CORP.

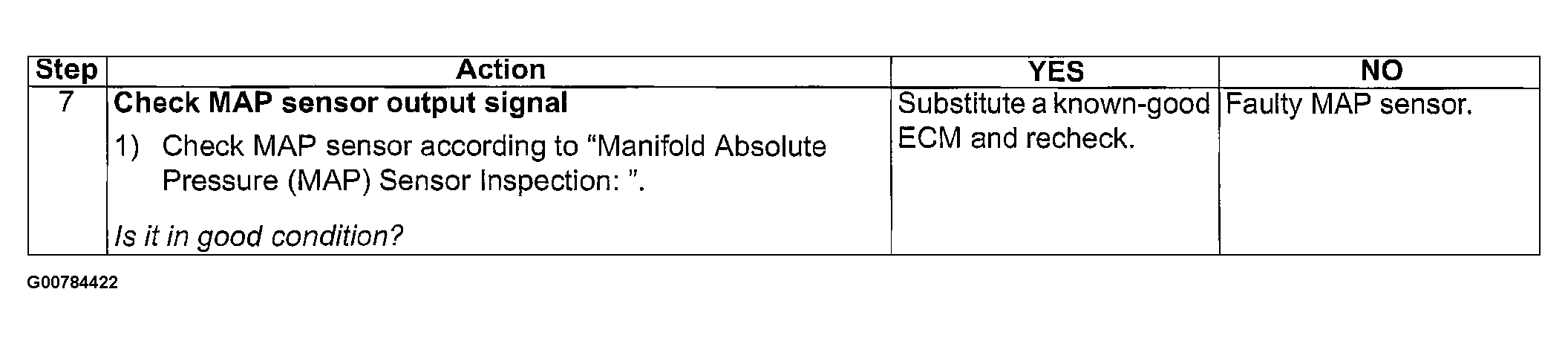

Fig 3: DTC Troubleshooting Chart (3 of 3)
G00784422Courtesy of SUZUKI OF AMERICA CORP.
