System/Wiring Diagram

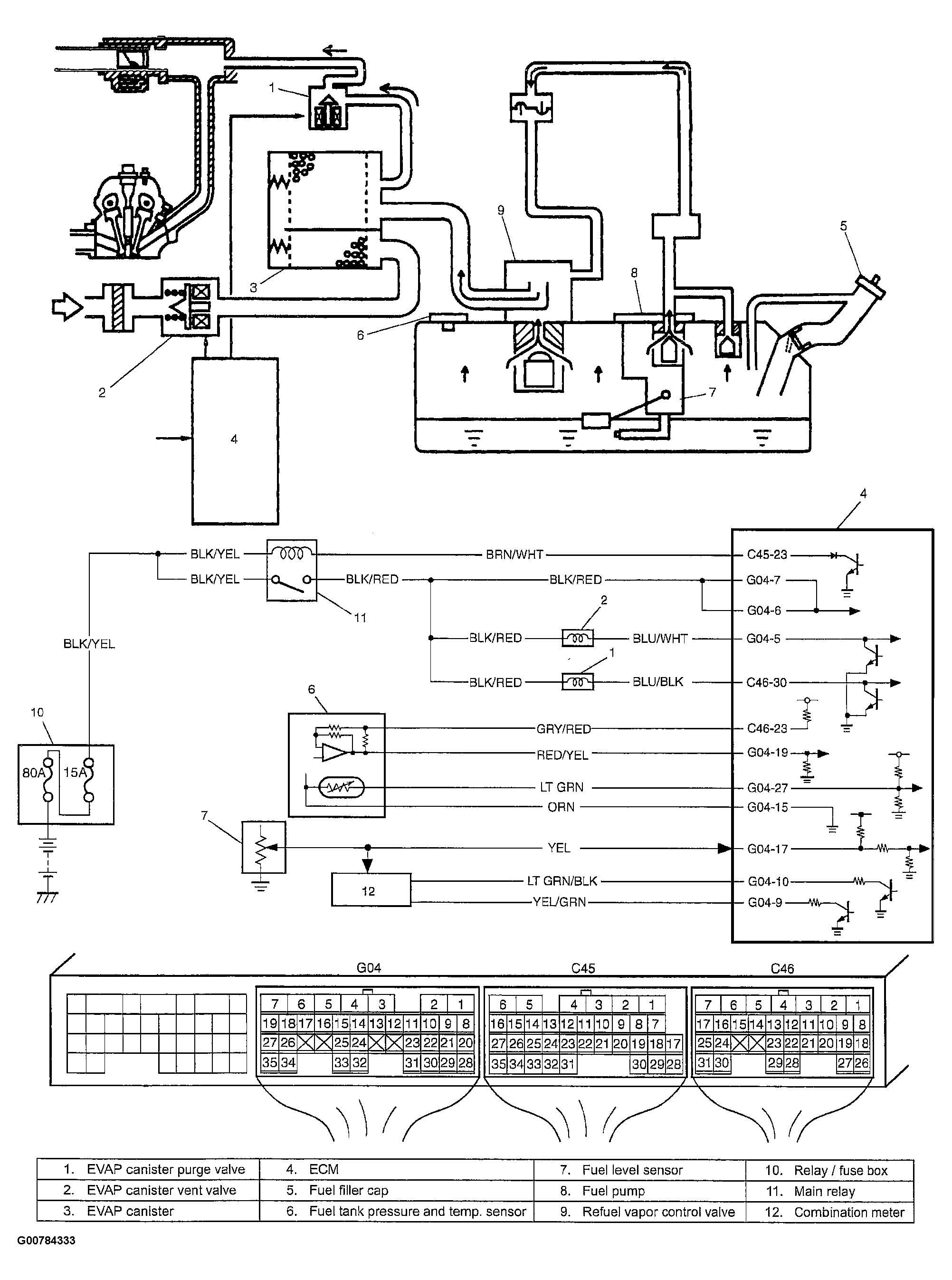

Fig 1: DTC P0442/P0455 Evaporative Emission Control System Leak Detected (Small Leak)/(Gross Leak) - System Wiring Diagram
G00784333Courtesy of SUZUKI OF AMERICA CORP.
