Code (Diagnostic Trouble Codes) Is Not Outputted Even with Diagnosis Switch Terminal Connected to Ground: Notes

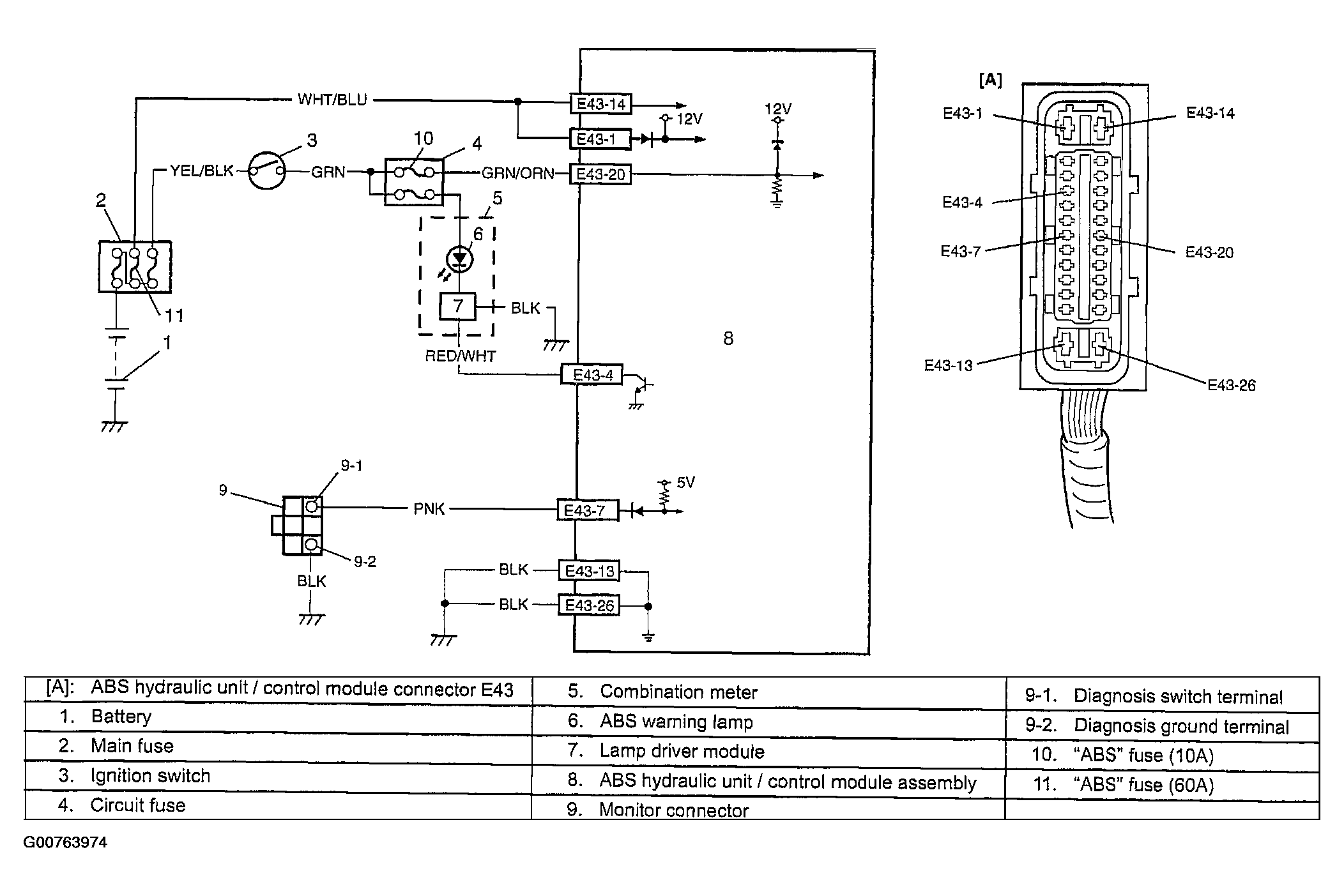

Fig 1: Code (DTC) Is Not Outputted Even with Diagnosis Switch Terminal Connected to Ground - System Wiring Diagram
G00763974Courtesy of SUZUKI OF AMERICA CORP.
