Manual Transaxle Oil Change
- Before changing or inspecting oil, be sure to stop engine and lift vehicle.
- With vehicle lifted up, check oil level and leakage.
If leakage exists, correct it.
- Drain old oil and fill new specified oil by specified amount (up to level hole).

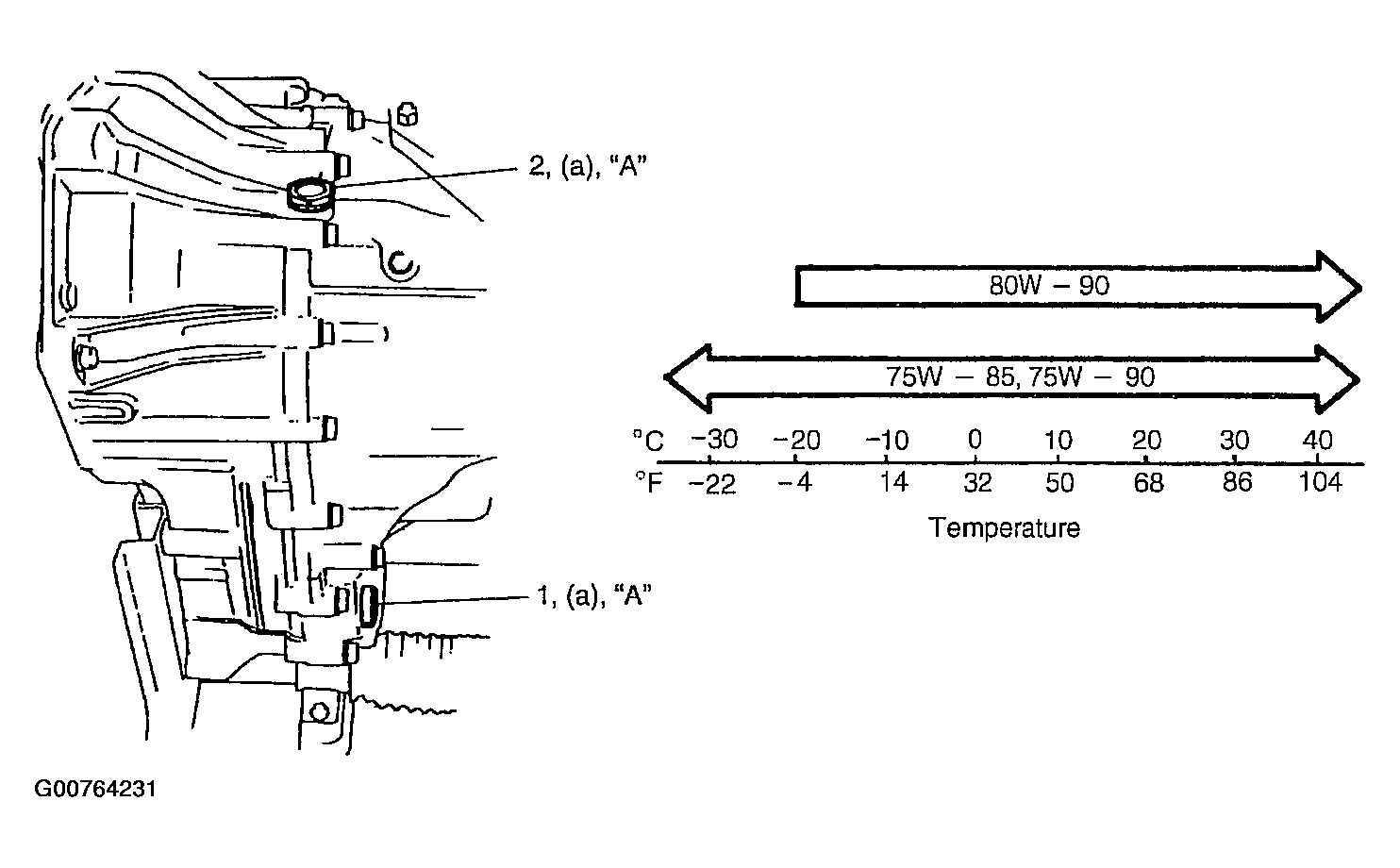

- Torque drain plug (1) and level/filler plug (2) as specified in the following. Apply sealant to thread of drain plug and level / filler plug before installation.
"A": Sealant 99000-31260
Tightening torque
Transaxle oil level / filler and drain plugs (a): 21 N.m (2.1 kg-m, 15.5 lb-ft)
NOTE:- It is recommended to use API GL-4 75W-90 gear oil.
- Whenever vehicle is hoisted for any service work other than oil change, check for oil leakage.
:Transaxle oil API GL-4 (For SAE classification, refer to viscosity chart in the figure.)
Transaxle oil capacity
2.3 liters (4.9/4.0 US/lmp. pt.)
