Removal & Installation

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disconnect negative battery cable. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Open glove box door and release side stops. Remove glove box. Disconnect passenger-side air bag module connector. Remove bolt and screws securing passenger-side air bag module to instrument panel. See Fig 1. Remove passenger-side air bag module.
To install, reverse removal procedure. Tighten air bag module bolt to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

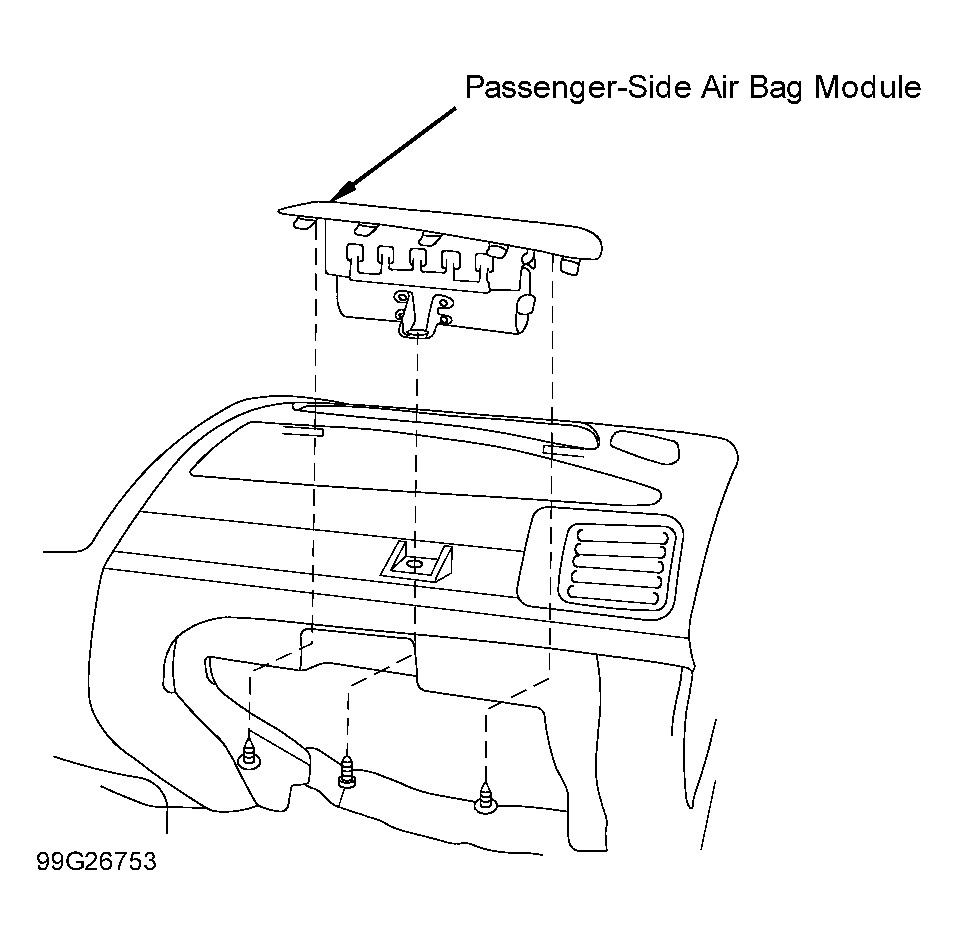

Fig 1: Identifying Passenger-side Air Bag Module

Courtesy of SUZUKI OF AMERICA CORP.
