Evaporative Emission System Tester Components: Locations

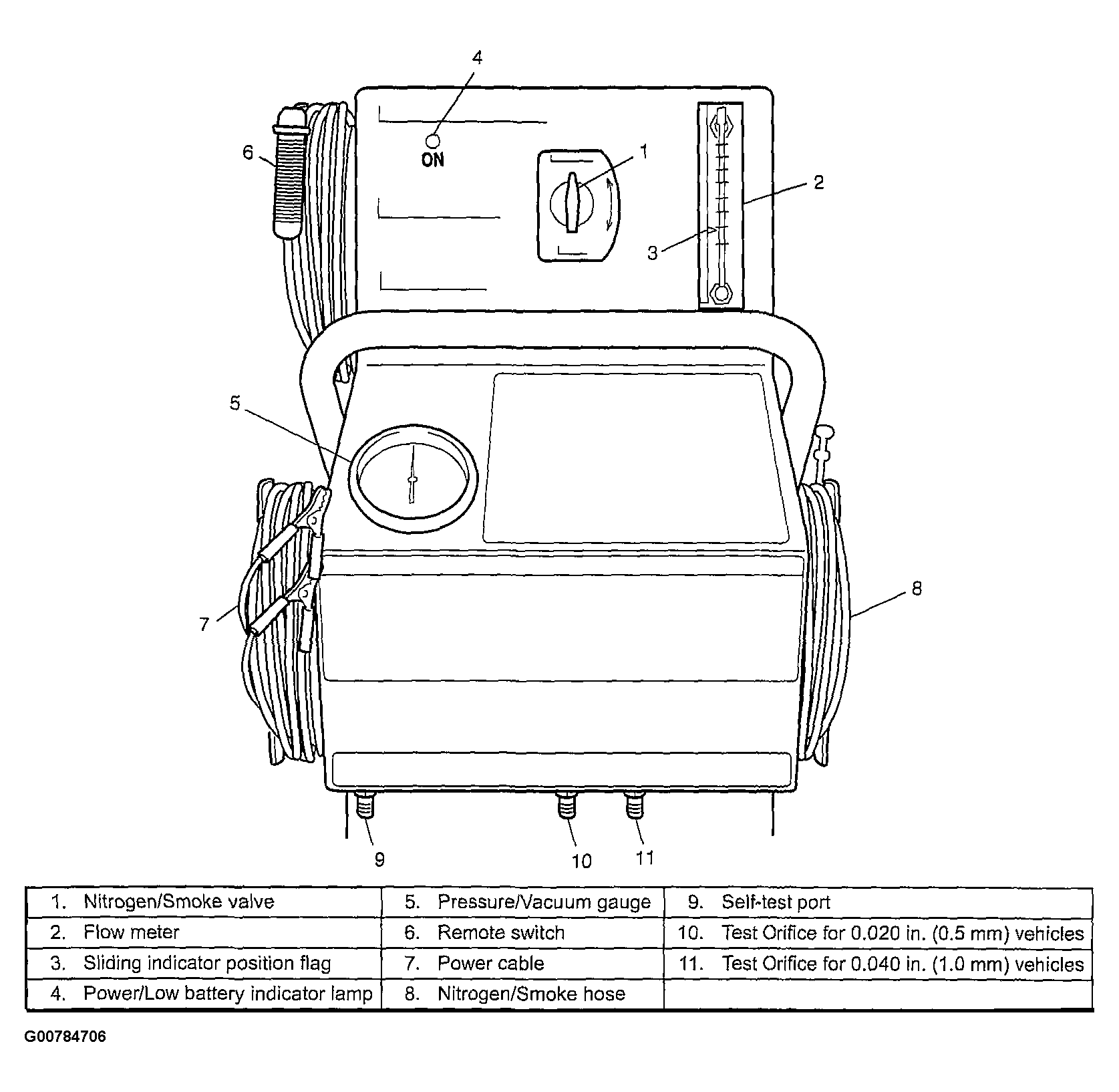

Fig 1: Identifying Evaporative Emission System Tester Locations
G00784706Courtesy of SUZUKI OF AMERICA CORP.
