Fuel Pressure Regulator Removal and Installation: Removal

WARNING:

• A small amount of fuel may be released when it is removed from delivery pipe. Place a shop cloth under delivery pipe so that released fuel is absorbed in it.
• A small amount of fuel may be released when hose is disconnected. Cover hose to be disconnected with a shop cloth.

1. Relieve fuel pressure according to Fuel Pressure Relief Procedure  .
2. Disconnect battery negative cable from battery.
3. Remove engine cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
4. Remove fuel pressure regulator (1) from delivery pipe (3).
5. Disconnect fuel return hose (2) and vacuum hose (4) from pressure regulator.

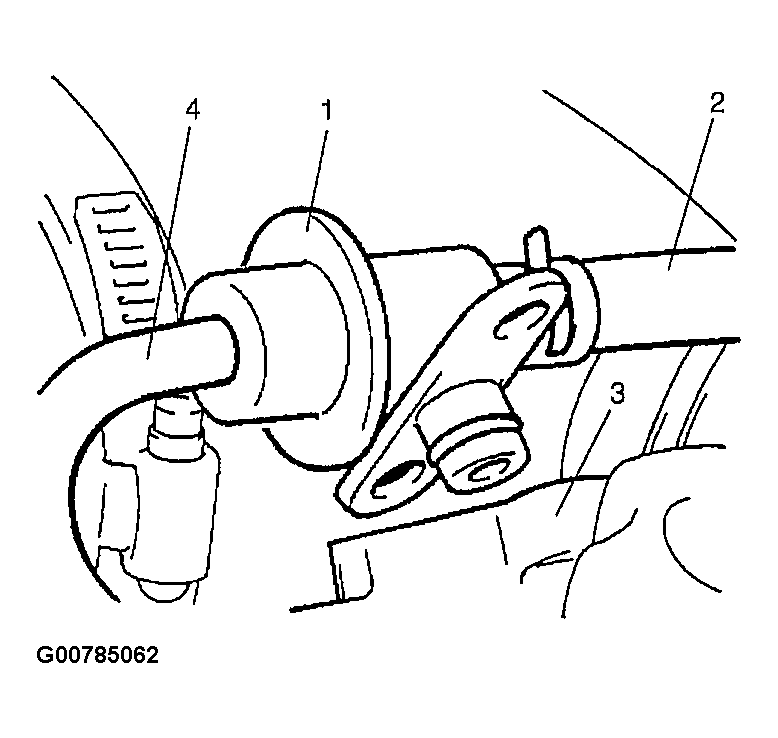

Fig 1: Removing Fuel Pressure Regulator

Courtesy of SUZUKI OF AMERICA CORP.
