Connector: G04

Fig 1: Terminal Connector G04 (1 of 2)
G00784170Courtesy of SUZUKI OF AMERICA CORP.

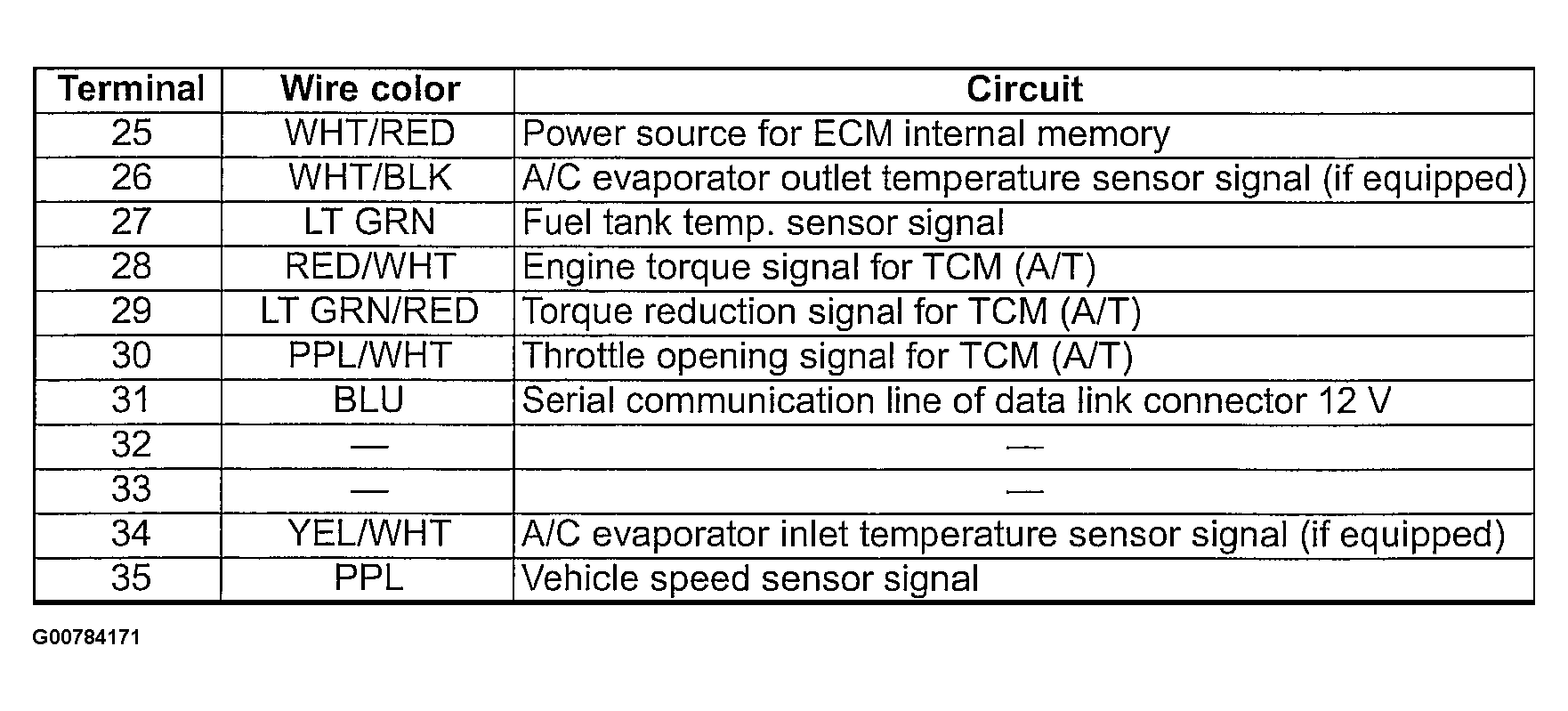

Fig 2: Terminal Connector G04 (2 of 2)
G00784171Courtesy of SUZUKI OF AMERICA CORP.
