Visual Inspection

Visually check the following parts and systems.

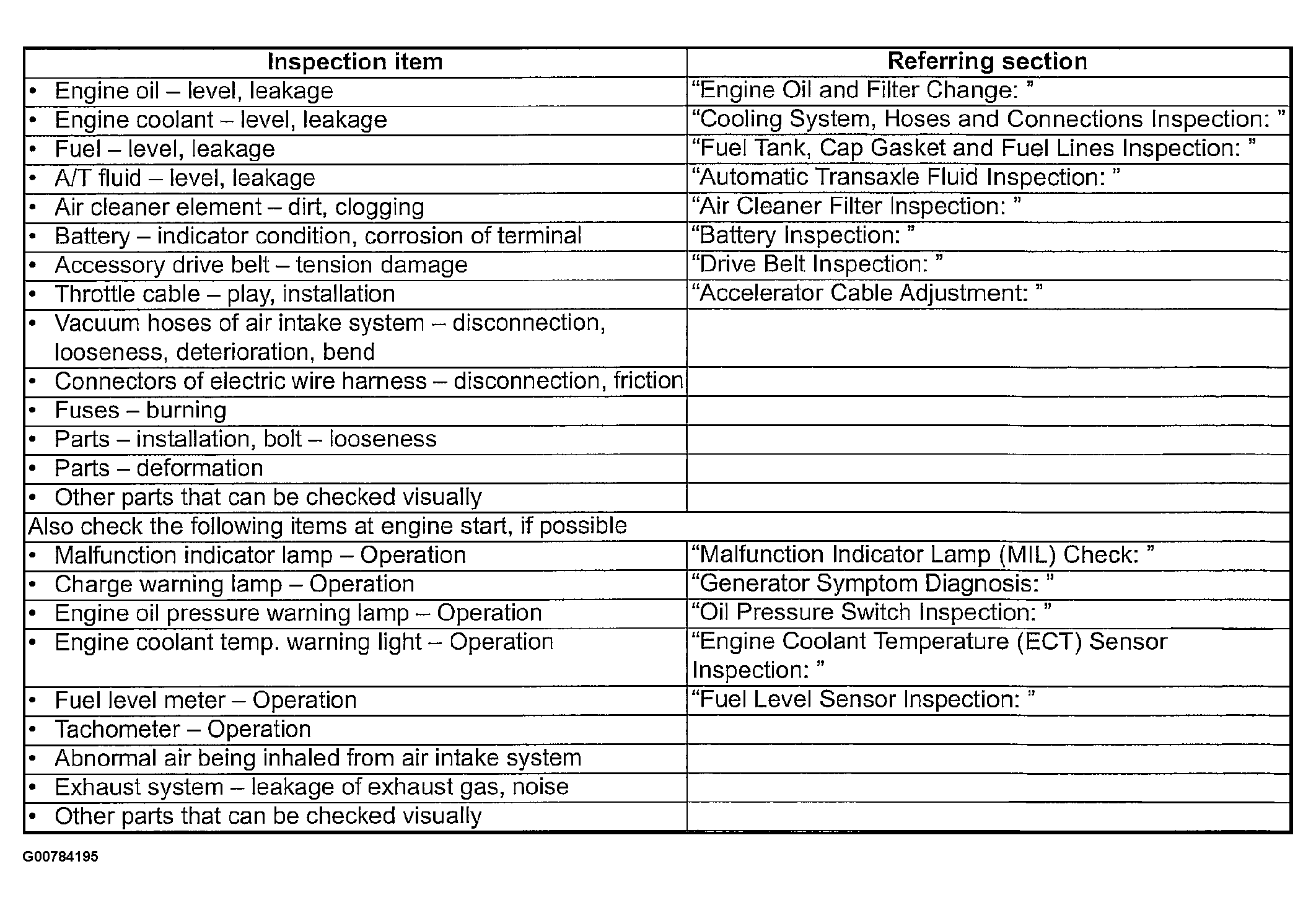

Fig 1: Identifying Visual Inspection
G00784195Courtesy of SUZUKI OF AMERICA CORP.
