DTC P1717: A/T Driver Range (Park/Neutral Position) Signal Circuit Malfunction
>>
DTC Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC Troubleshooting

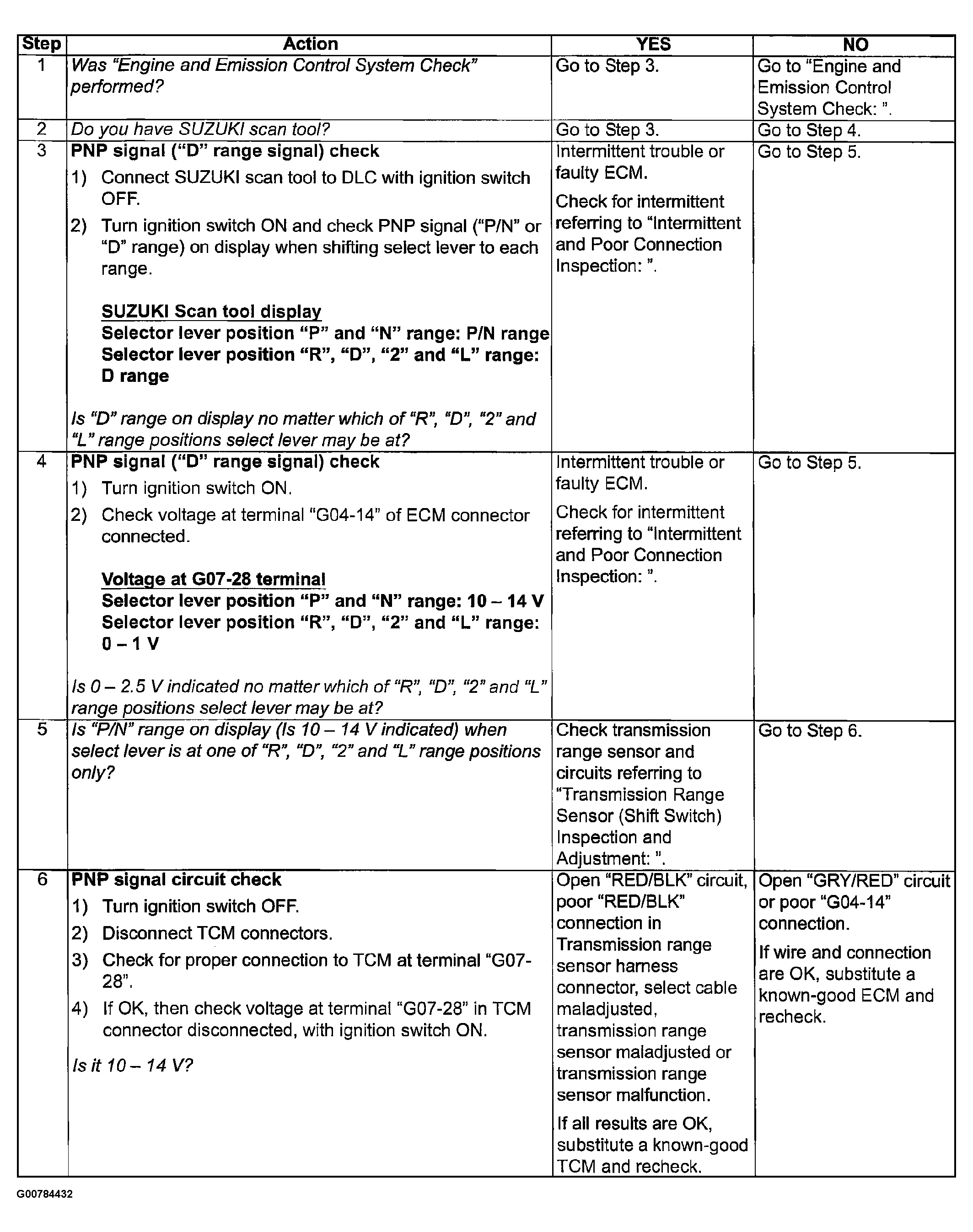

Fig 1: DTC Troubleshooting Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
