DTC Troubleshooting

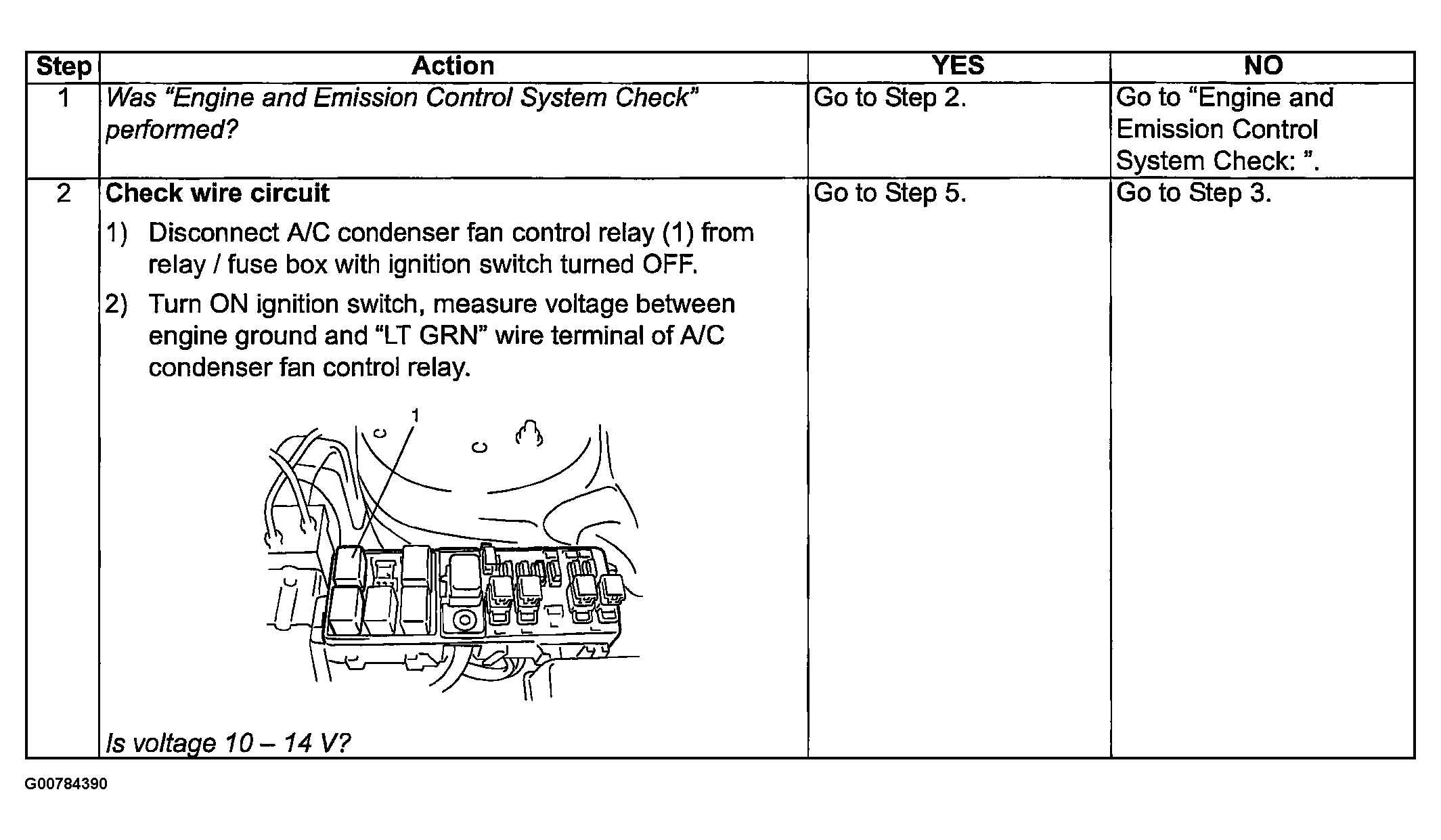

Fig 1: DTC Troubleshooting Chart (1 of 3)
G00784390Courtesy of SUZUKI OF AMERICA CORP.

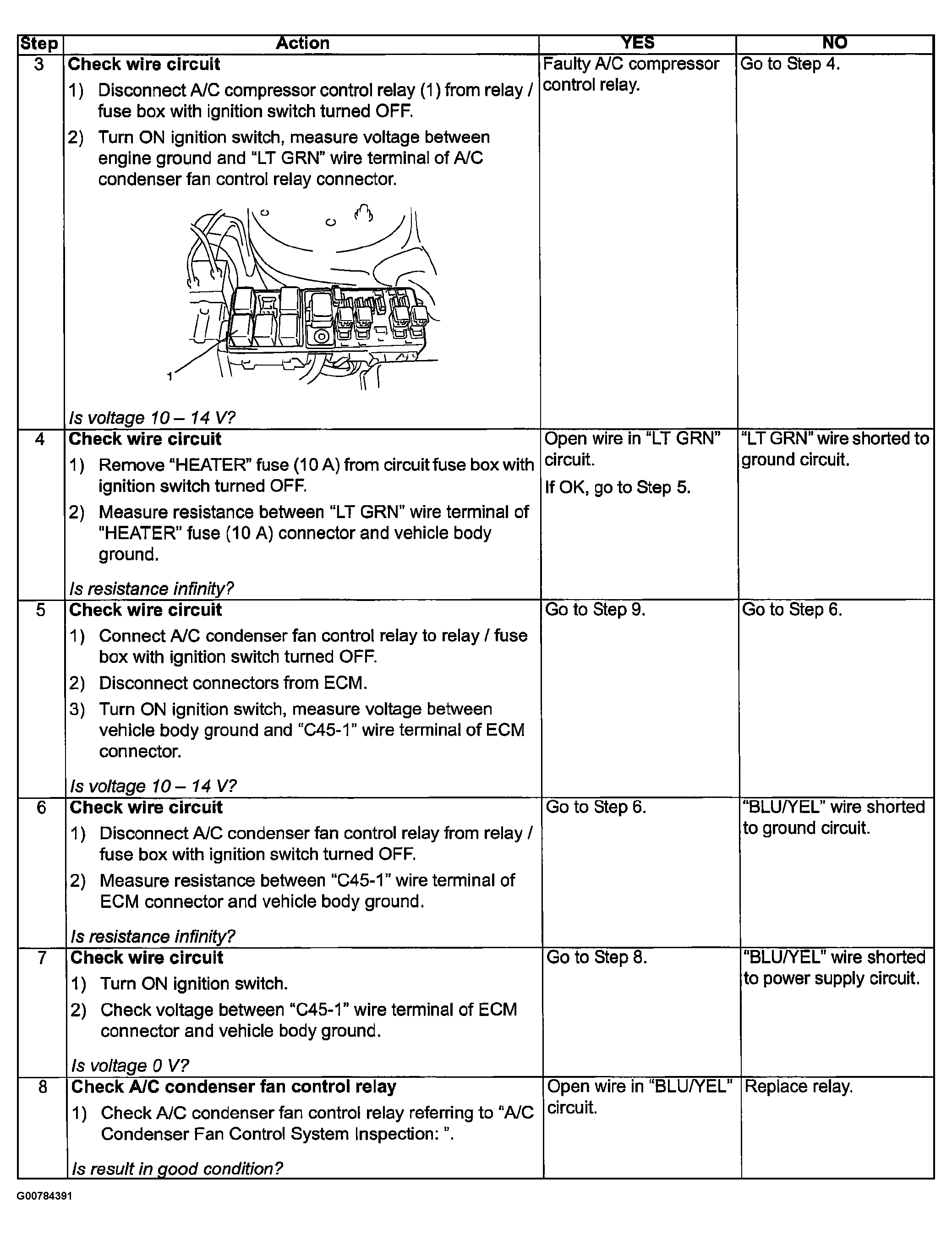

Fig 2: DTC Troubleshooting Chart (2 of 3)
G00784391Courtesy of SUZUKI OF AMERICA CORP.

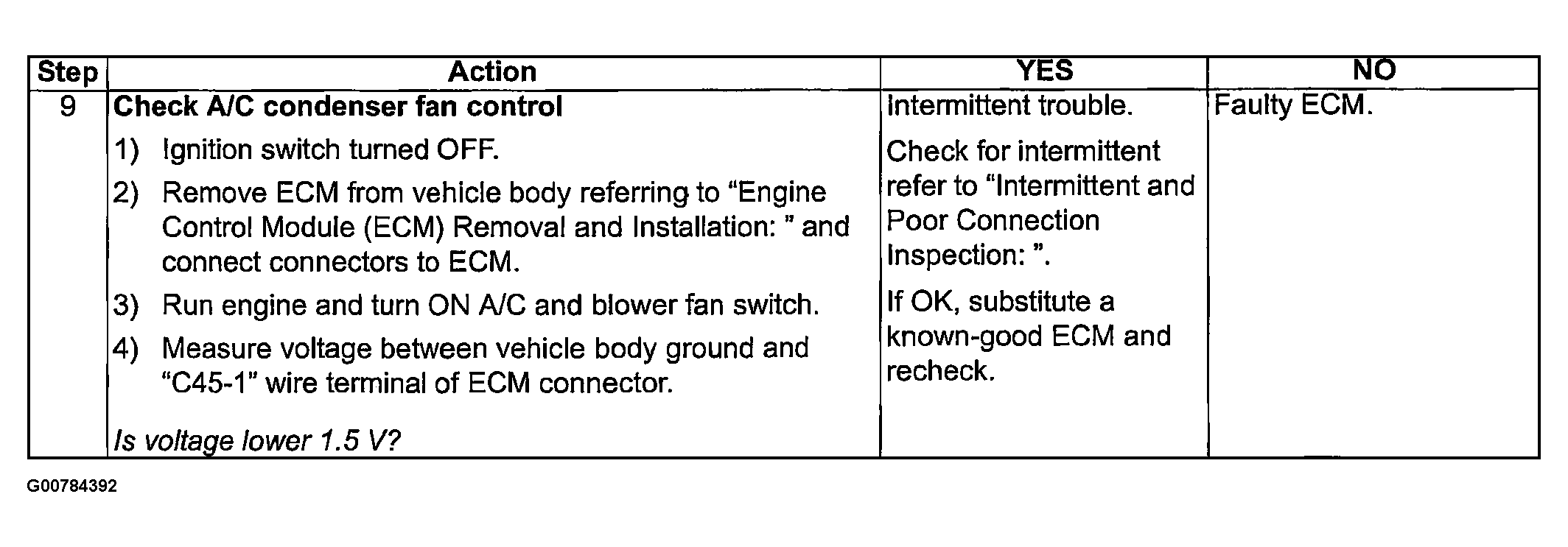

Fig 3: DTC Troubleshooting Chart (3 of 3)
G00784392Courtesy of SUZUKI OF AMERICA CORP.
