System/Wiring Diagram

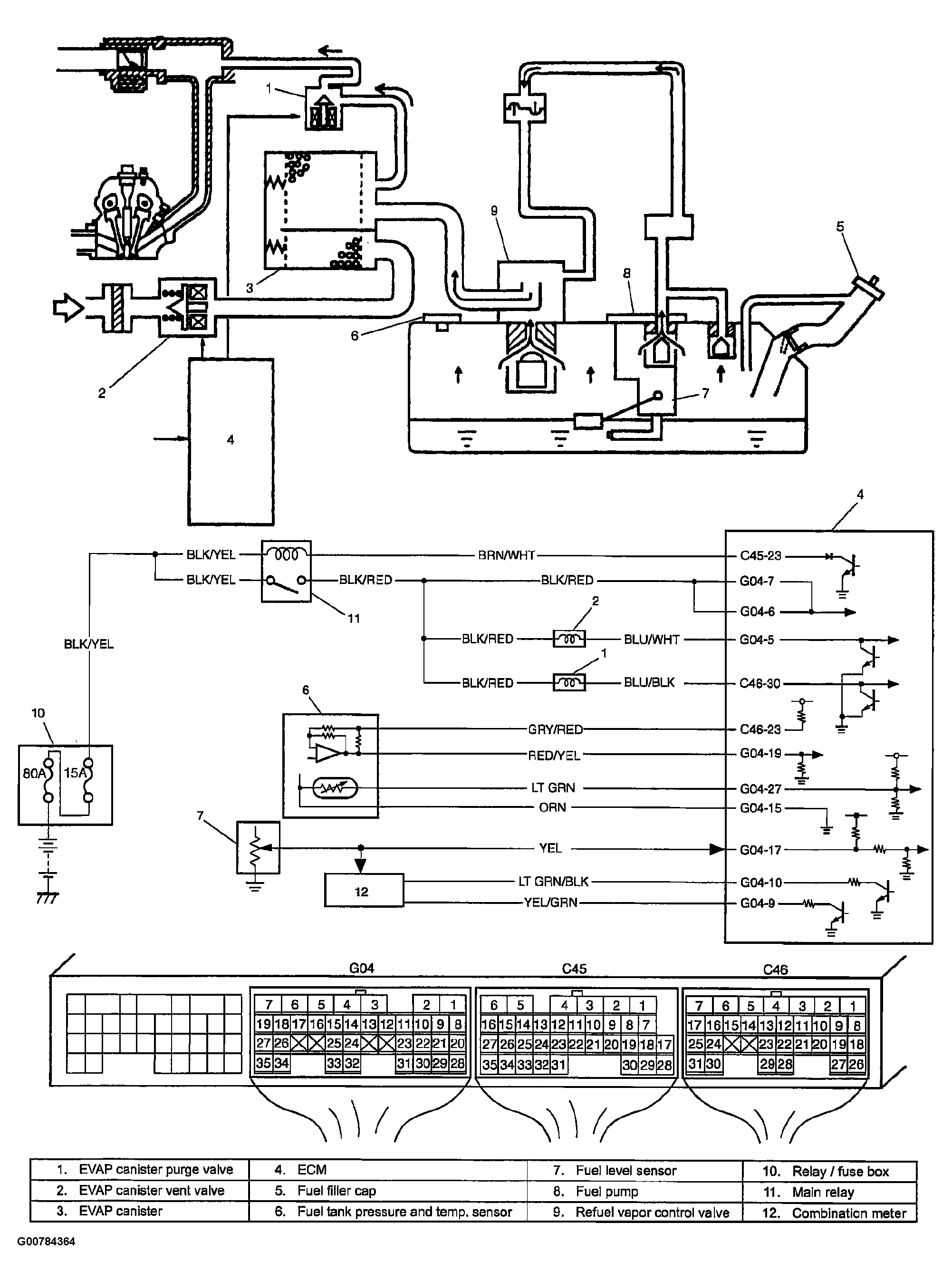

Fig 1: DTC P0456 Evaporative Emission Control System Leak Detected (Very Small Leak) - System Wiring Diagram
G00784364Courtesy of SUZUKI OF AMERICA CORP.
