System/Wiring Diagram

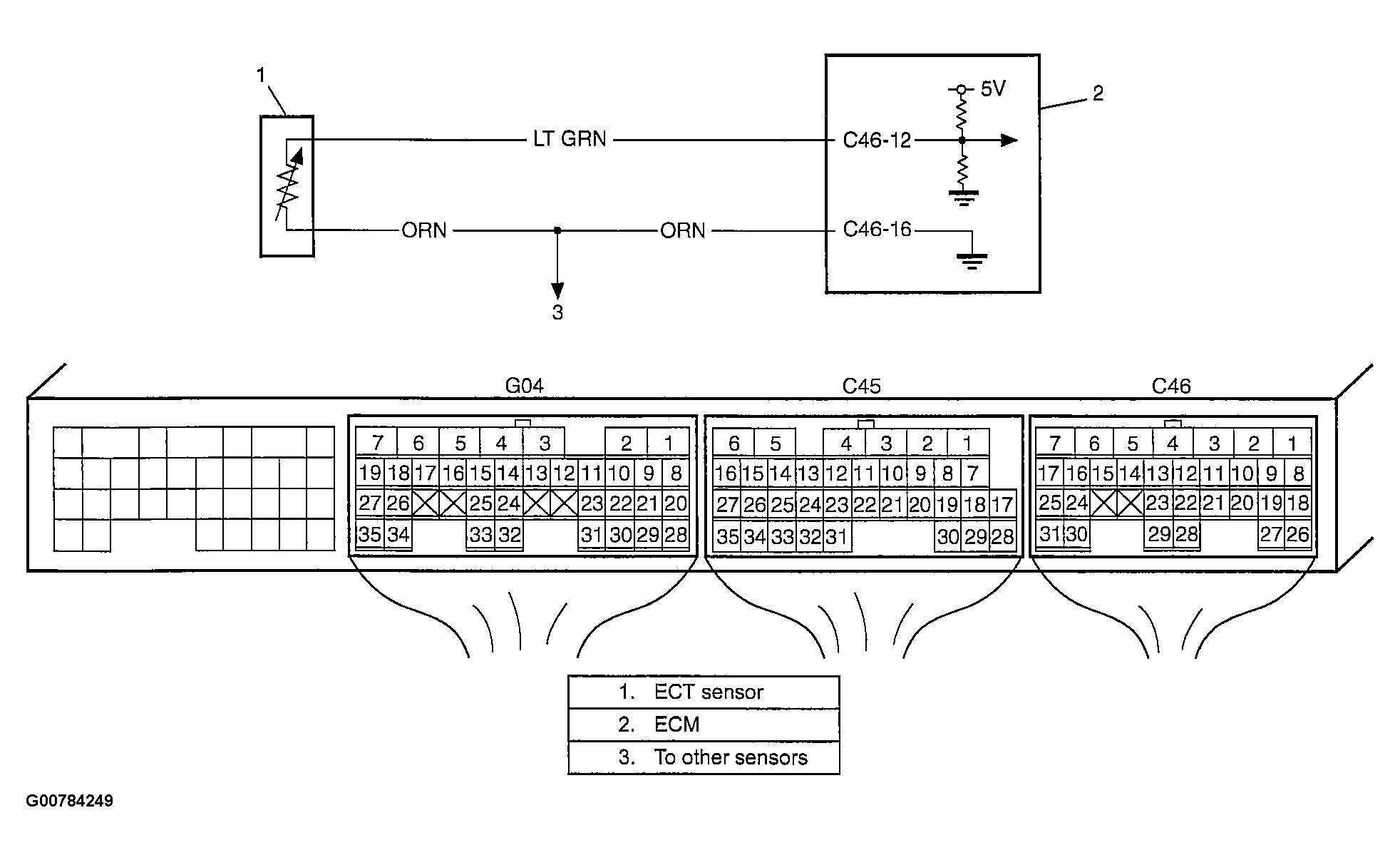

Fig 1: DTC P0118 Engine Coolant Temperature Circuit High Input - System Wiring Diagram
G00784249Courtesy of SUZUKI OF AMERICA CORP.
