System/Wiring Diagram

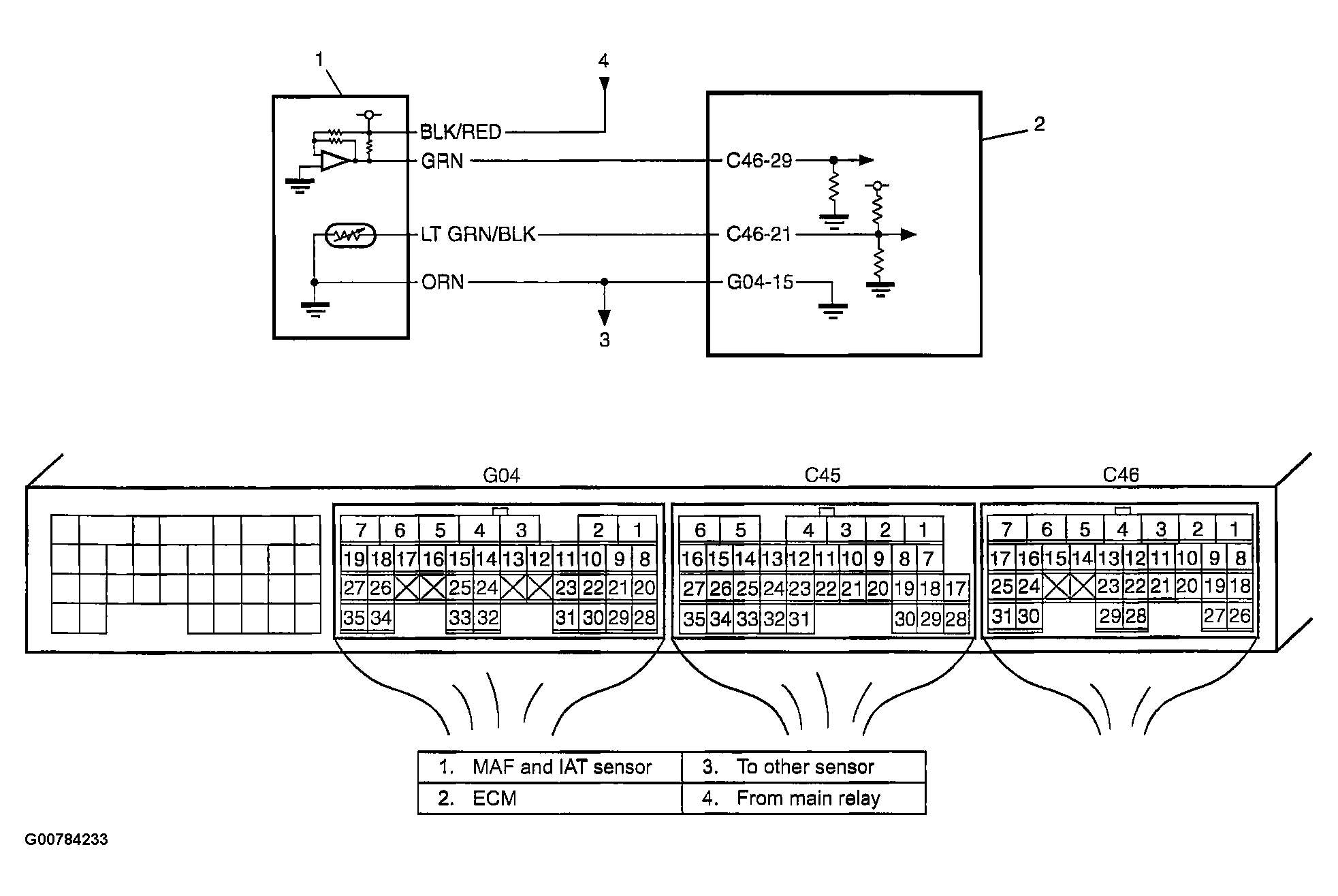

Fig 1: DTC P0112 Intake Air Temperature Circuit Low Input - System Wiring Diagram (1 of 2)
G00784233Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: DTC P0112 Intake Air Temperature Circuit Low Input - System Wiring Diagram (2 of 2)
G00784234Courtesy of SUZUKI OF AMERICA CORP.
