System/Wiring Diagram

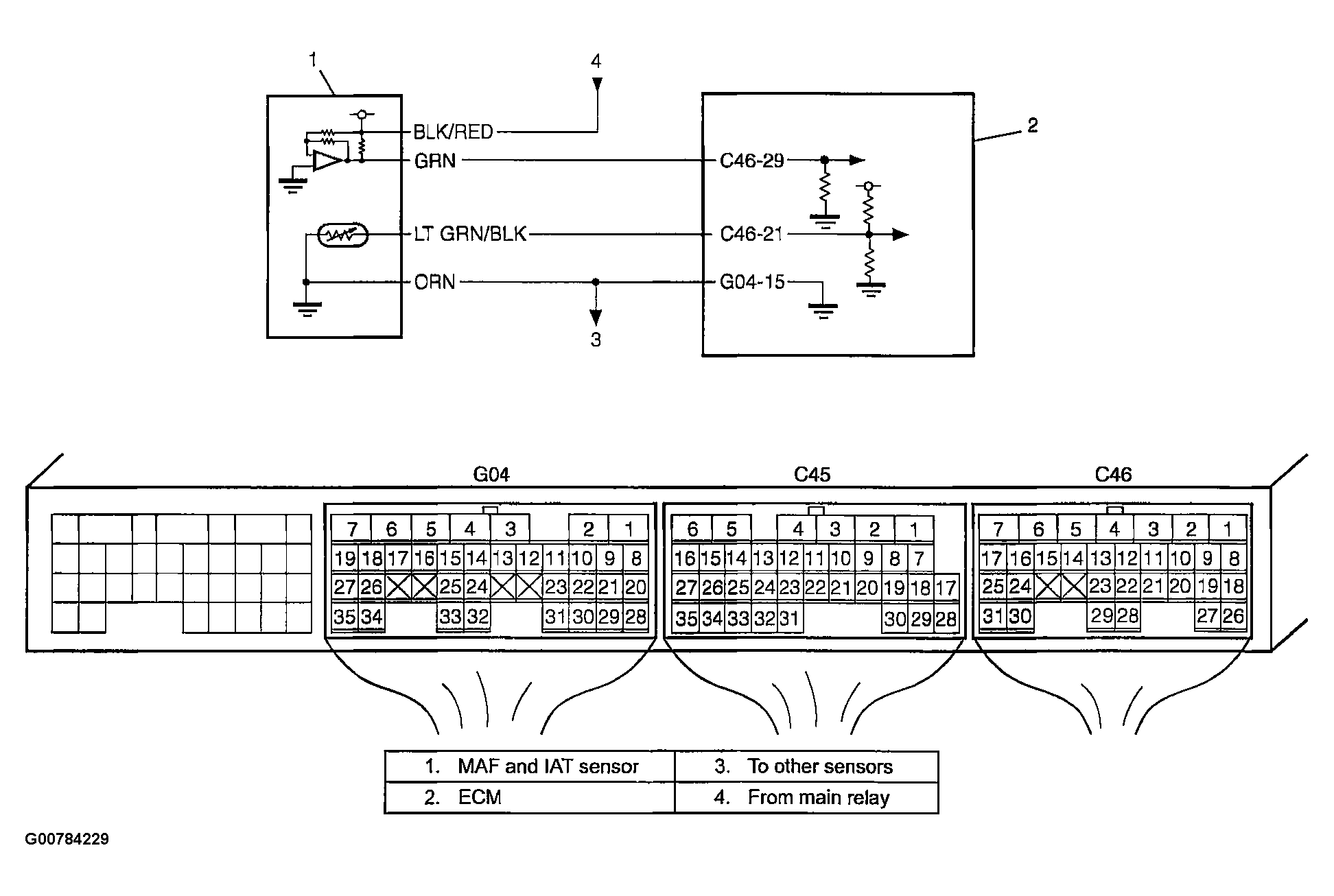

Fig 1: DTC P0111 Intake Air Temperature Circuit Range/Performance - System Wiring Diagram
G00784229Courtesy of SUZUKI OF AMERICA CORP.
