DTC Troubleshooting

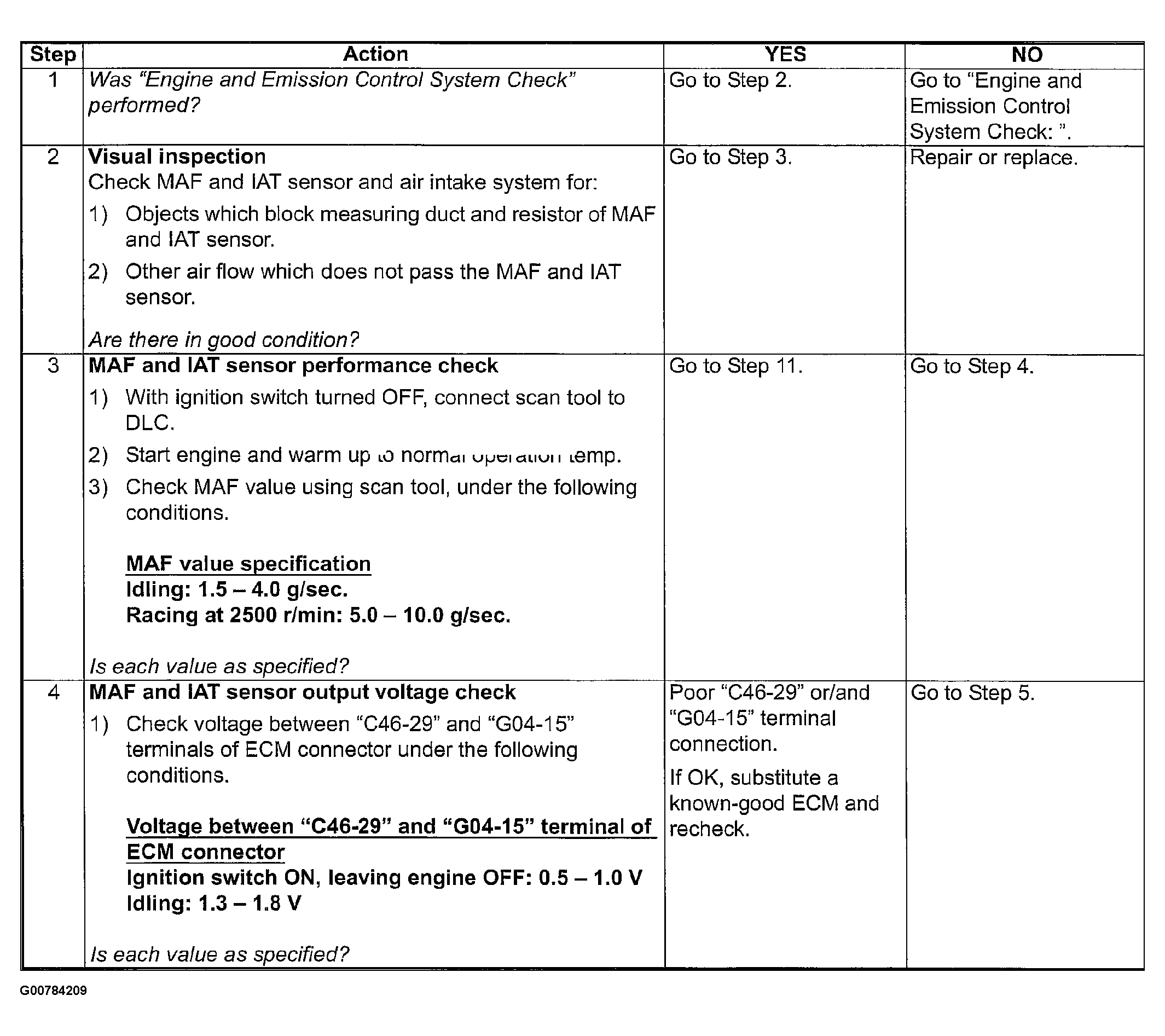

Fig 1: DTC Troubleshooting Chart (1 of 3)
G00784209Courtesy of SUZUKI OF AMERICA CORP.

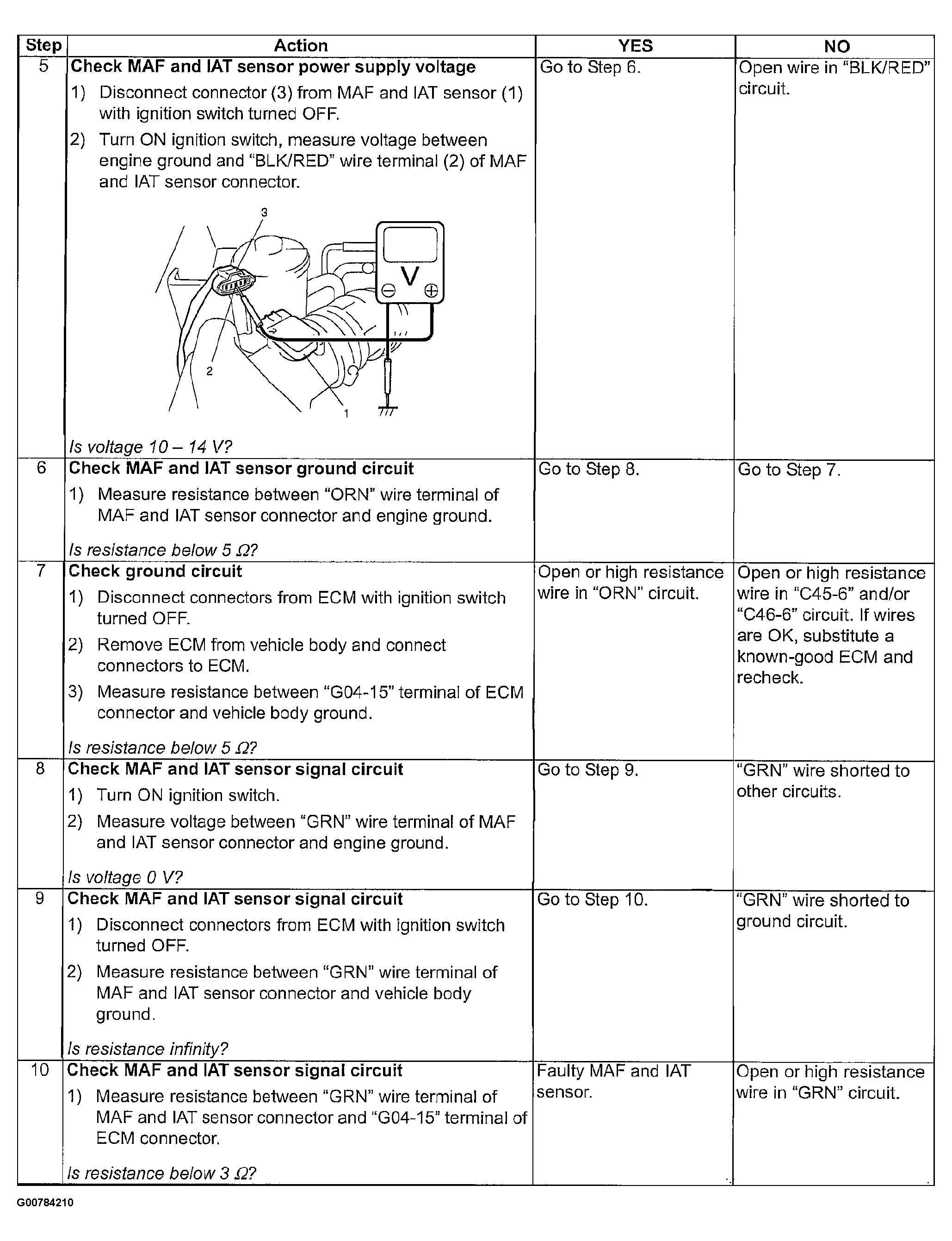

Fig 2: DTC Troubleshooting Chart (2 of 3)
G00784210Courtesy of SUZUKI OF AMERICA CORP.

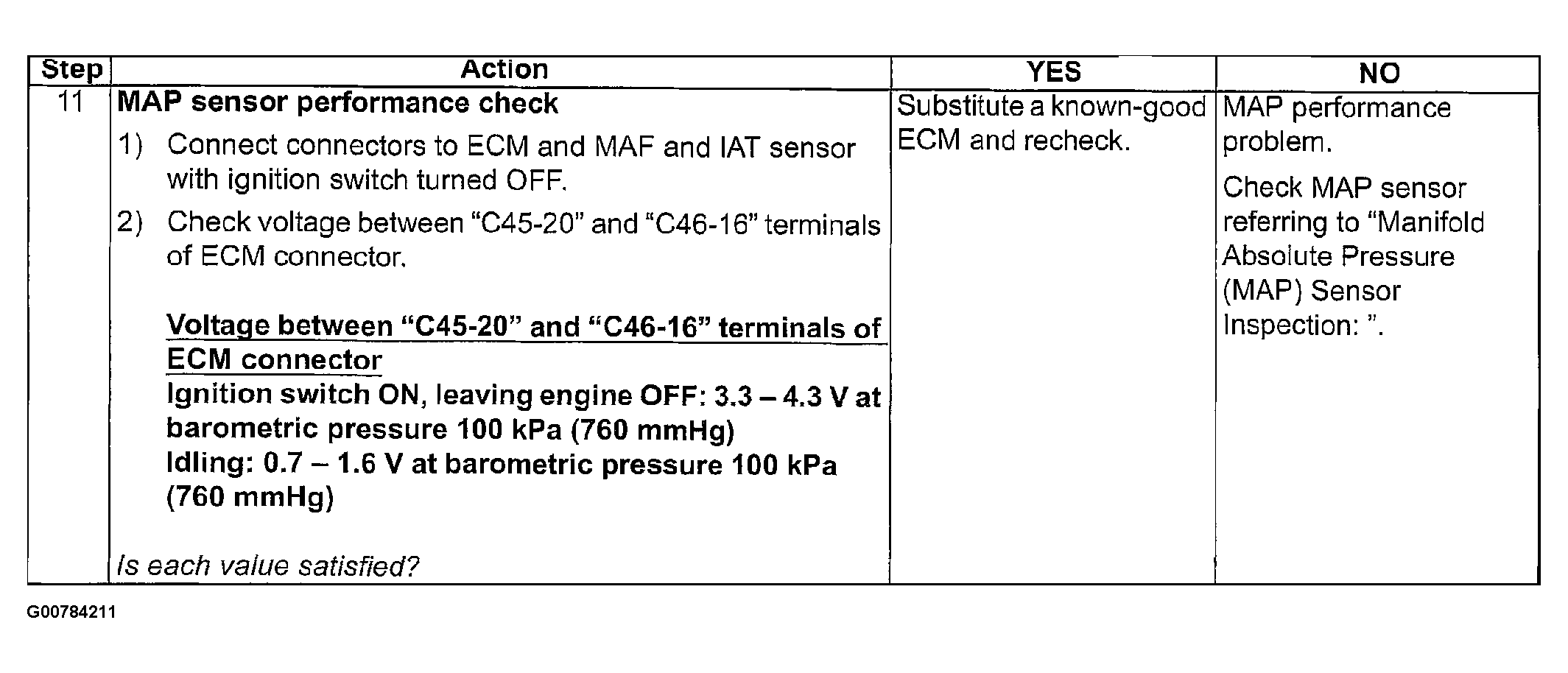

Fig 3: DTC Troubleshooting Chart (3 of 3)
G00784211Courtesy of SUZUKI OF AMERICA CORP.
