Front Wheel Speed Sensor Removal and Installation: Installation

Check that no foreign material is attached to sensor (1) and sensor ring (2).
Install it by reversing removal procedure.
Tightening torque

Front wheel speed sensor bolt (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)

CAUTION: Do not pull or twist wire harness more than necessary when installing front wheel speed sensor.

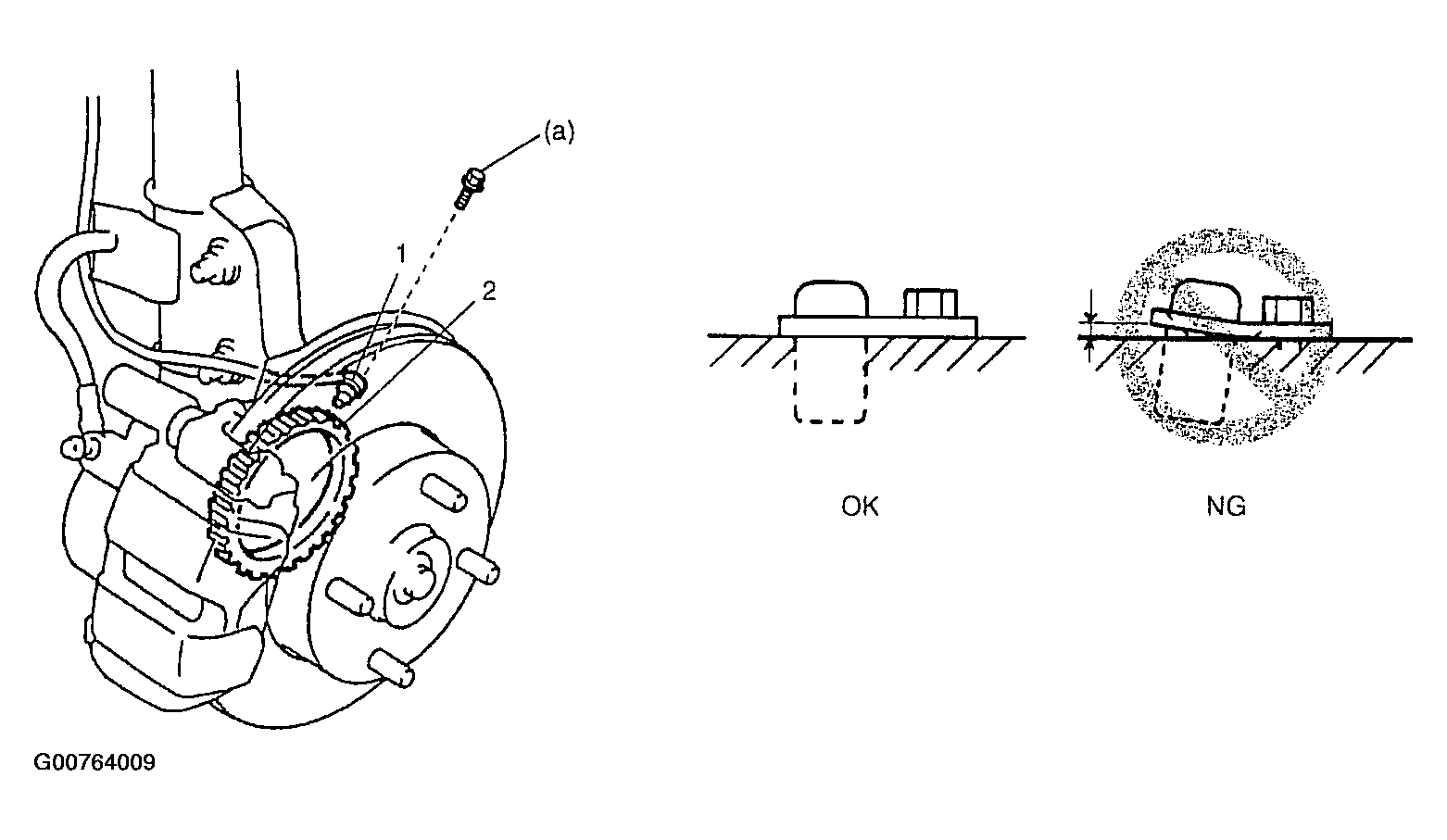

Fig 1: Installing Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Check that there is no clearance between sensor and knuckle.
