Diagnostic Trouble Codes Table
CAUTION:
Be sure to perform ABS Check
before starting diagnosis.

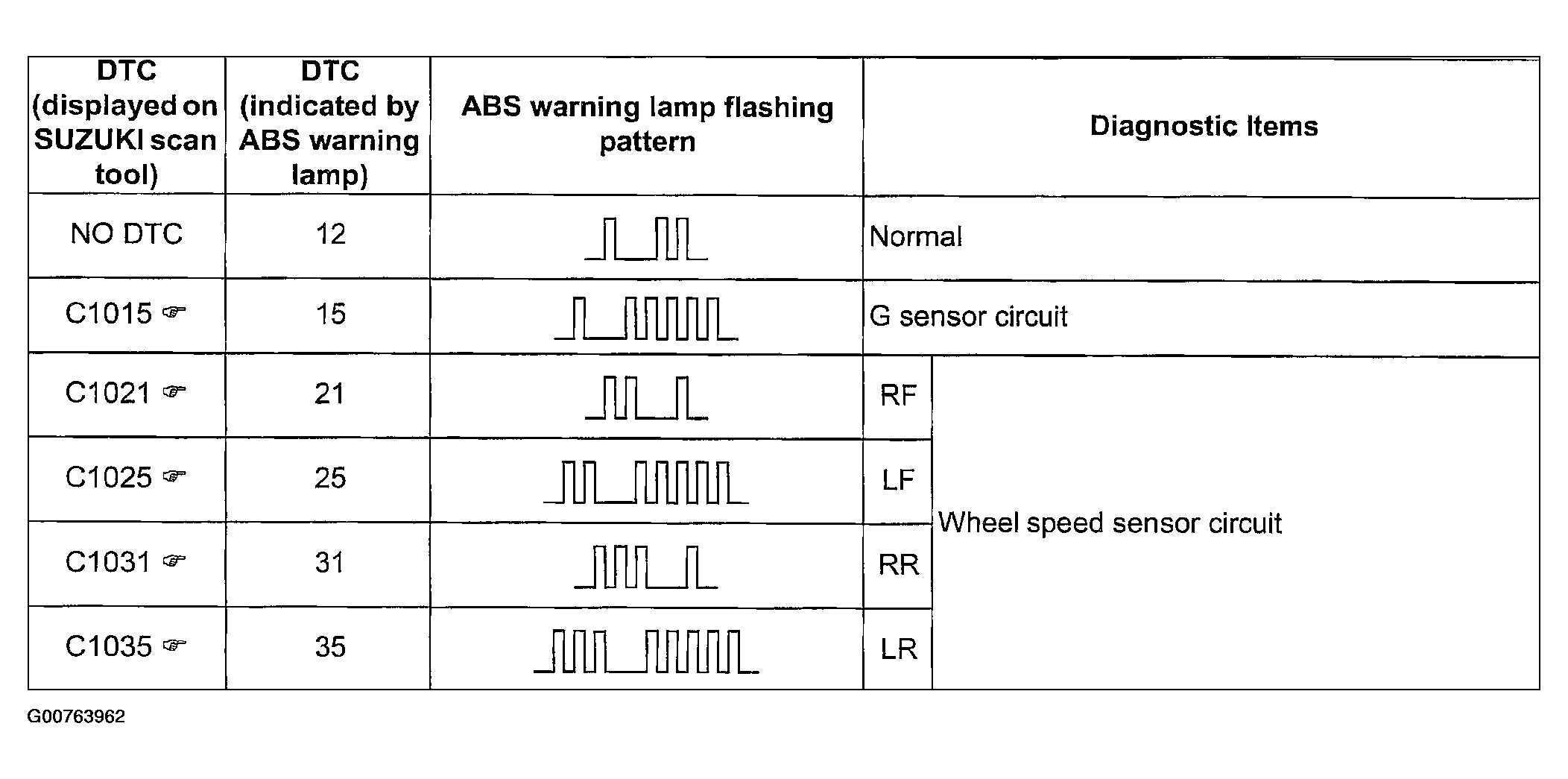

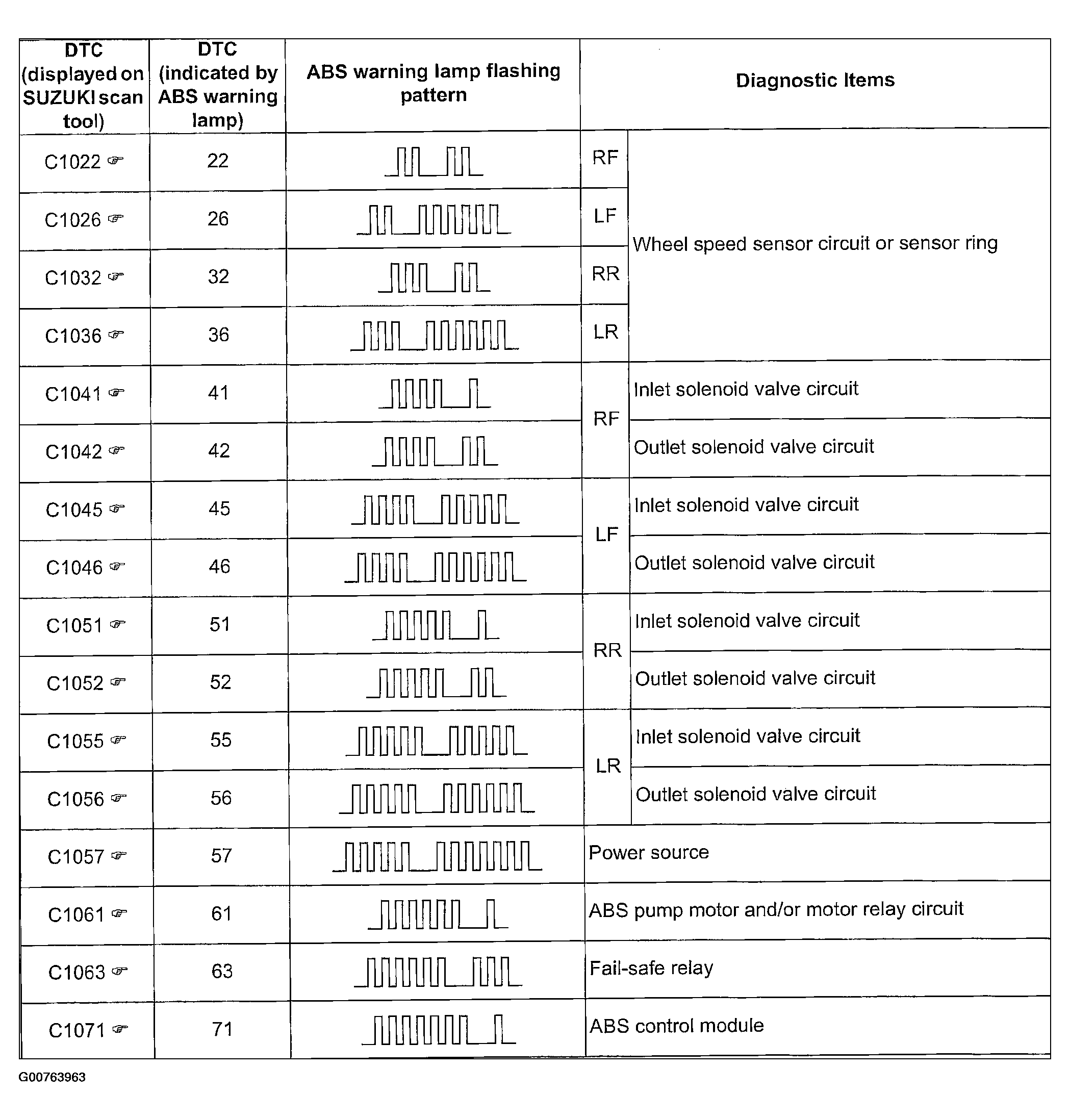

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C1015 (No. 15) | G Sensor Circuit |
| DTC C1021, C1022, C1025, C1026, C1031, C1032, C1035, C1036 (No. 21, 22, 25, 26, 31, 32, 35, 36) | Wheel Speed Sensor Circuit or Sensor Ring |
| DTC C1041, C1045, C1051, C1055, C1042, C1046, C1052, C1056 (No. 41, 45, 51, 55, 42, 46, 52, 56) | Inlet/Outlet Solenoid Circuit |
| DTC C1057 (No. 57) | Power Source Circuit |
| DTC C1061 (No. 61) | ABS Pump Motor and/or Motor Relay Circuit |
| DTC C1063 (No. 63) | ABS Fail-Safe Relay Circuit |
| DTC C1071 (No. 71) | ABS Control Module |
