Power Door Lock And Keyless Entry System (If Equipped) Component Location

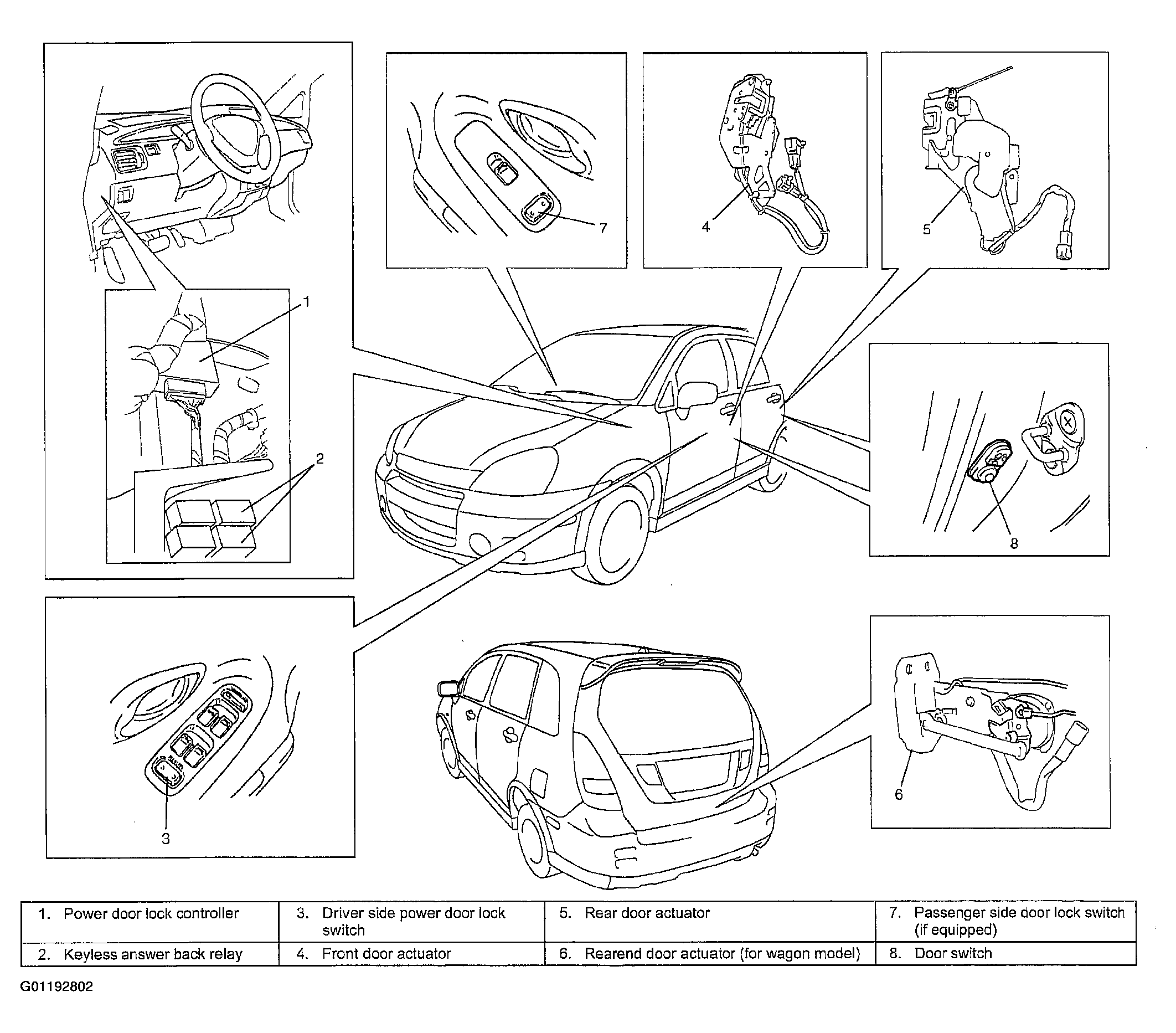

Fig 1: Locating Power Door Lock And Keyless Entry System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
