A/C Condenser Fan Control System Inspection: Troubleshooting

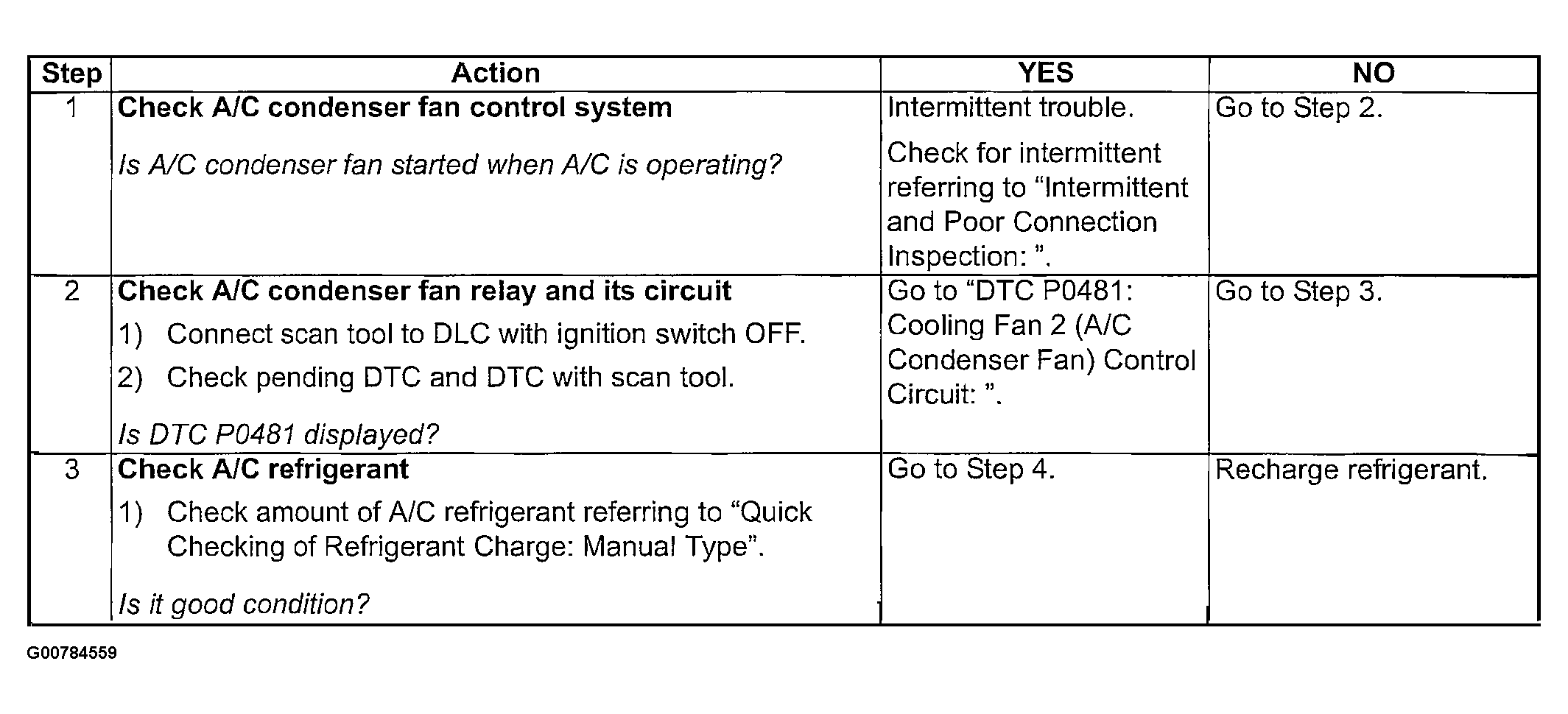

Fig 1: A/C Condenser Fan Control System Troubleshooting Chart (1 of 3)
G00784559Courtesy of SUZUKI OF AMERICA CORP.

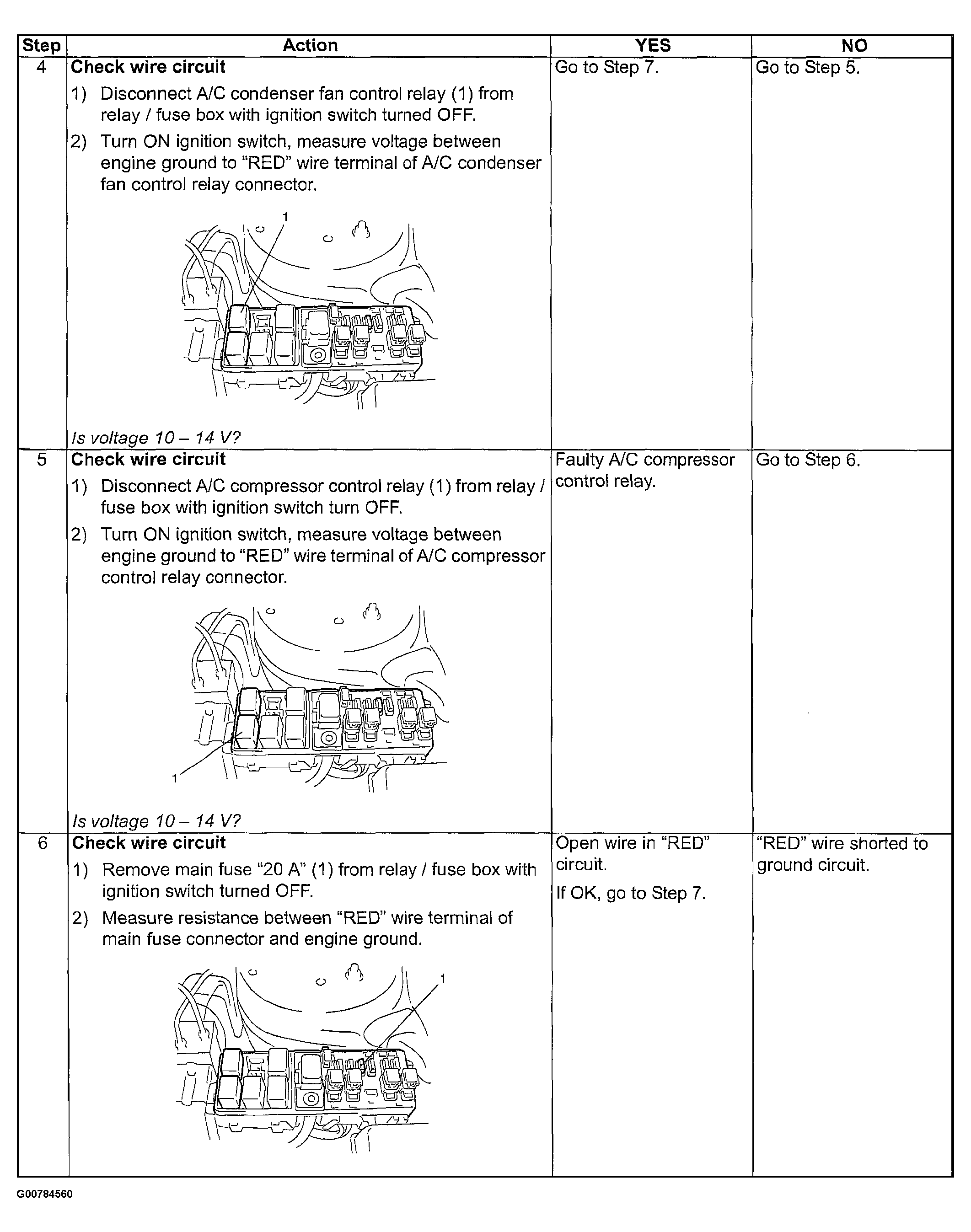

Fig 2: A/C Condenser Fan Control System Troubleshooting Chart (2 of 3)
G00784560Courtesy of SUZUKI OF AMERICA CORP.

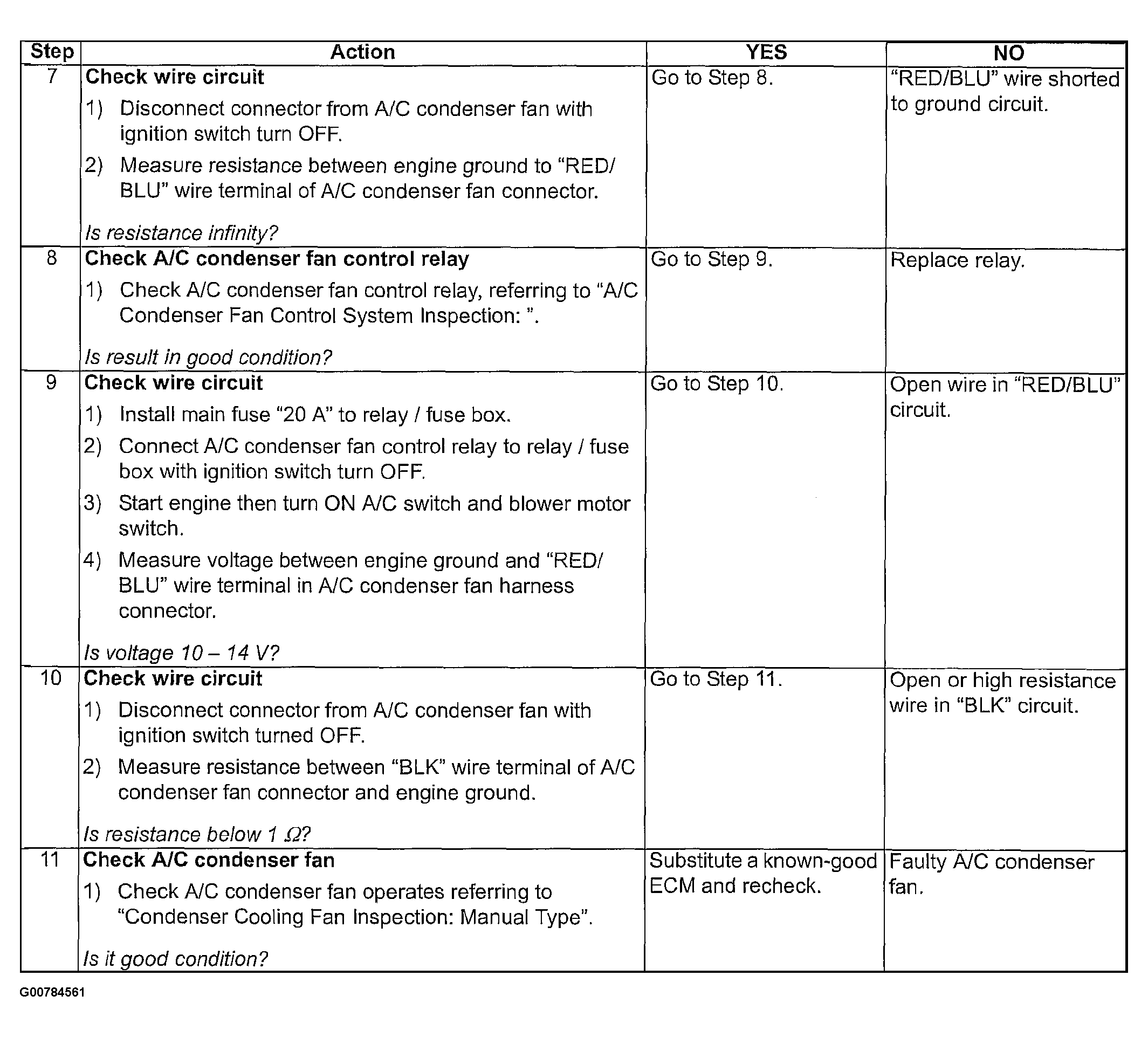

Fig 3: A/C Condenser Fan Control System Troubleshooting Chart (3 of 3)
G00784561Courtesy of SUZUKI OF AMERICA CORP.
