Timing Chain Cover Removal and Installation: Installation

Reverse removal sequence to install timing chain cover (1) noting the following points.

  1. Apply sealant "A" and "B" to area as shown in figure.

    "A": Sealant 99000-31250

    "B": Sealant 99000-31140

    Sealant amount for timing chain cover

    Width "a": 3 mm (0.12 in.)

    Height "b": 2 mm (0.08 in.)

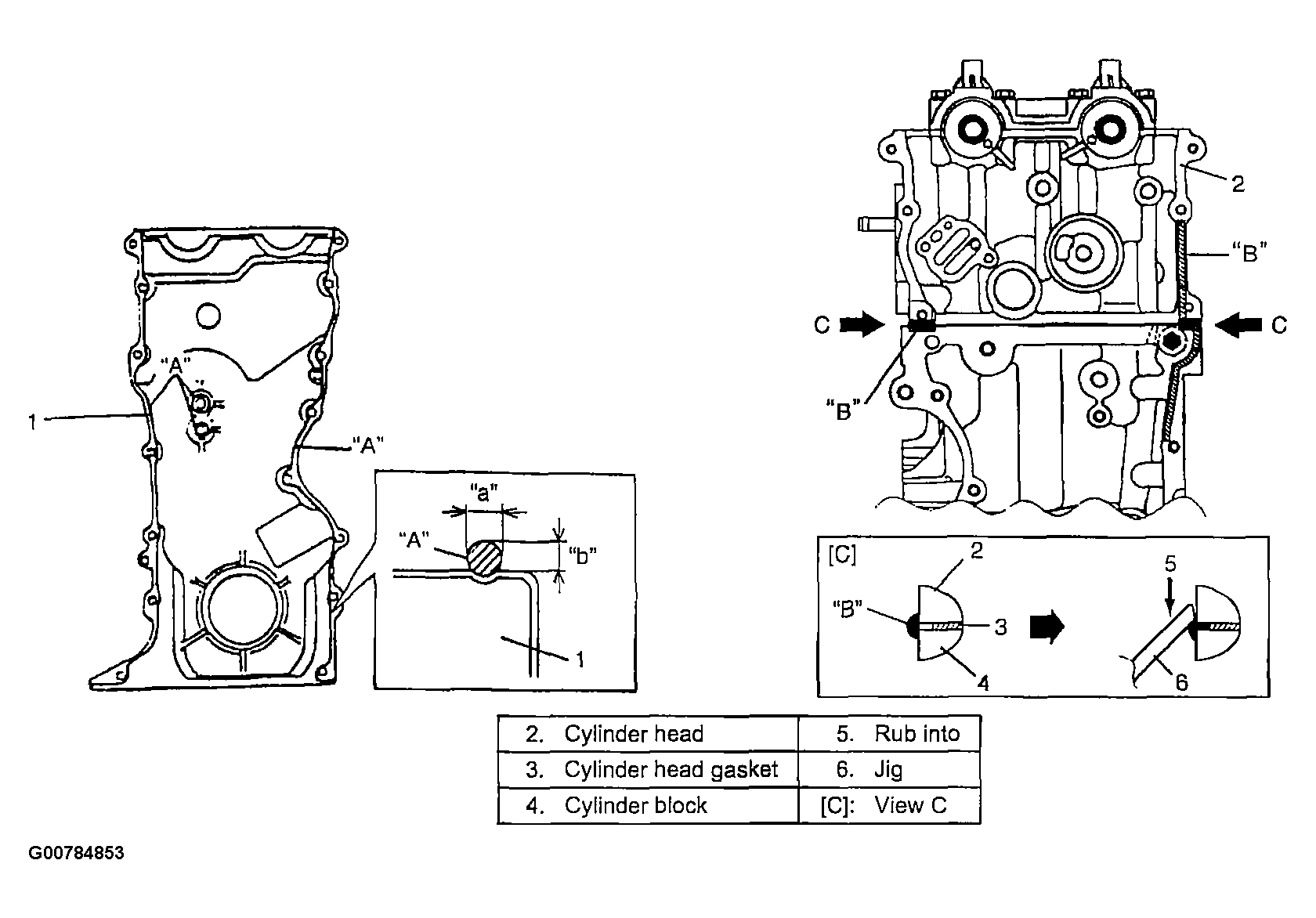

    Fig 1: Installing Timing Chain Cover
    G00784853Courtesy of SUZUKI OF AMERICA CORP.
  2. Apply engine oil to oil seal lip, then install timing chain cover (1). Tighten bolts and nut to specified torque.
    NOTE: Before installing timing chain cover, check that pin is securely fitted.

    Tightening torque

    Timing chain cover bolt and nut (a): 11 N.m (1.1 kg-m 8.0 lb-ft)

    Fig 2: Installing Timing Chain Bolt & Nut
    G00784854Courtesy of SUZUKI OF AMERICA CORP.
  3. Install generator belt idler pulley (1). Tighten nut to specified torque.

    Tightening torque

    Generator belt idler pulley nut (a): 42 N.m (4.2 kg-m, 30.5 lb-ft)

  4. Install generator belt tensioner (2). Tighten bolts to specified torque.

    Tightening torque

    Generator belt tensioner bolt (b): 25 N.m (2.5 kg-m, 18.5 lb-ft)

  5. Install water pump pulley (3).

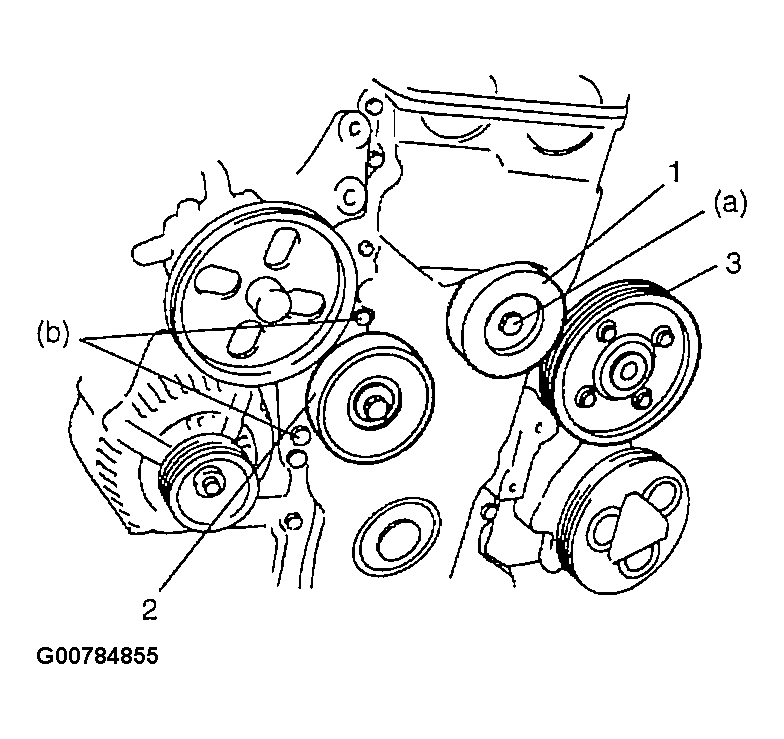

    Fig 3: Installing Water Pump Pulley
    G00784855Courtesy of SUZUKI OF AMERICA CORP.
  6. Install A/C compressor bracket (1) if equipped. Tighten bracket bolts to specified torque.

    Tightening torque

    A/C compressor bracket bolt (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

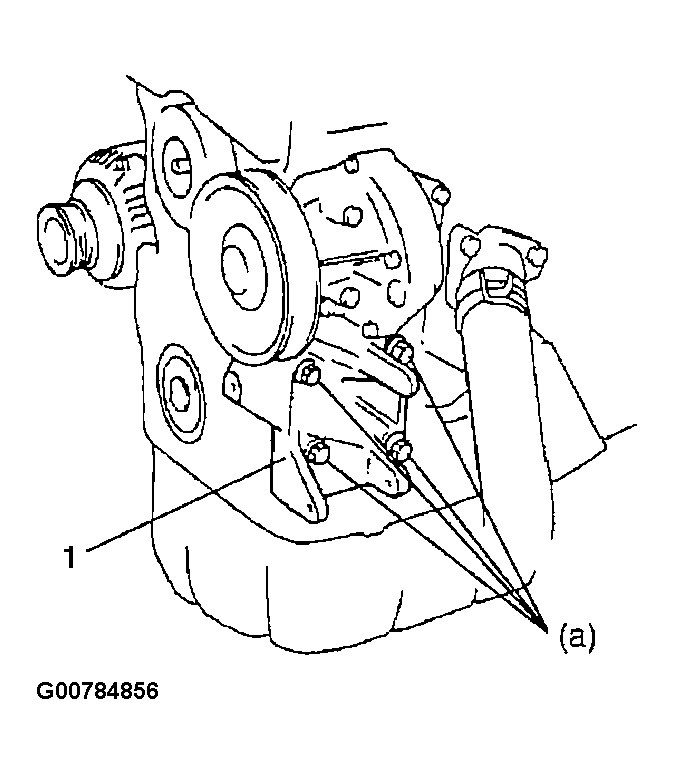

    Fig 4: Installing A/C Compressor Bracket
    G00784856Courtesy of SUZUKI OF AMERICA CORP.
  7. Install cylinder head cover. Refer toCylinder Head Cover Removal and Installation .
  8. Install oil pan. Refer to Oil Pan and Oil Pump Strainer Removal and Installation .
  9. Install crankshaft pulley. To lock crankshaft pulley (1), use special tool (camshaft pulley holder) with it as shown in figure.

    Special tool

    (A): 09917-68221

    NOTE: Be sure to use the following bolts instead of pins for fixing special tool to crank pulley. Bolt size: M8, P1.25 L = 25 mm (0.98 in.)
    Strength: 7T

    Tightening torque

    Crankshaft pulley bolt (a): 150 N.m (15.0 kg-m, 108.5 lb-ft)

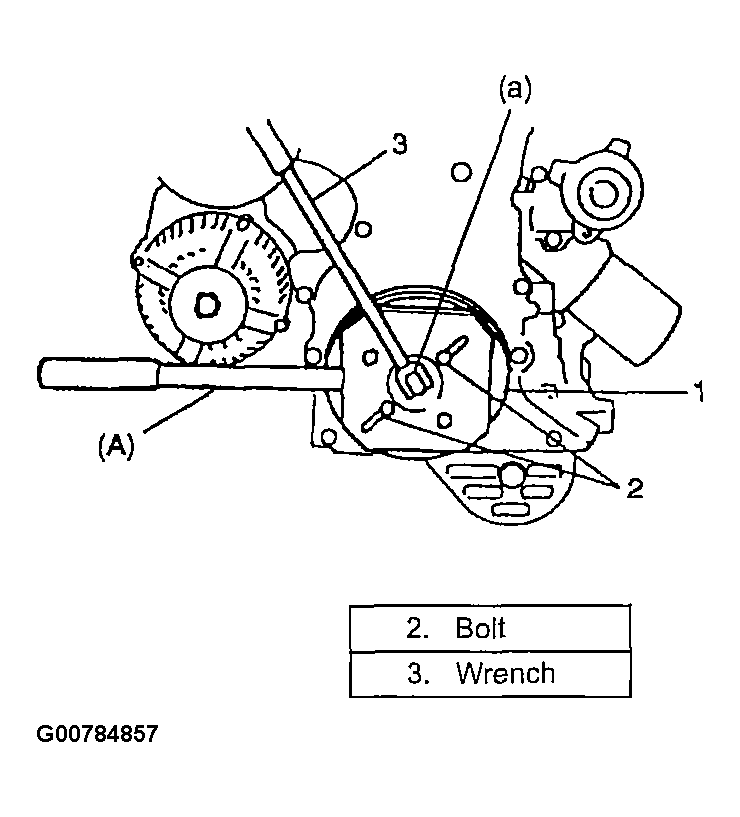

    Fig 5: Installing Crankshaft Pulley
    G00784857Courtesy of SUZUKI OF AMERICA CORP.
  10. Install engine assembly to vehicle. Refer to Engine Assembly Removal and Installation .
