Idle Air Control (IAC) Valve Removal and Installation: Installation

For installation, reverse removal procedure noting the followings:

• Install new gasket (1) to throttle body.
• Tighten IAC valve screw to specified torque.

Tightening torque

IAC valve screw (a): 4.0 N.m (0.4 kg-m, 3.0 Lb-ft)

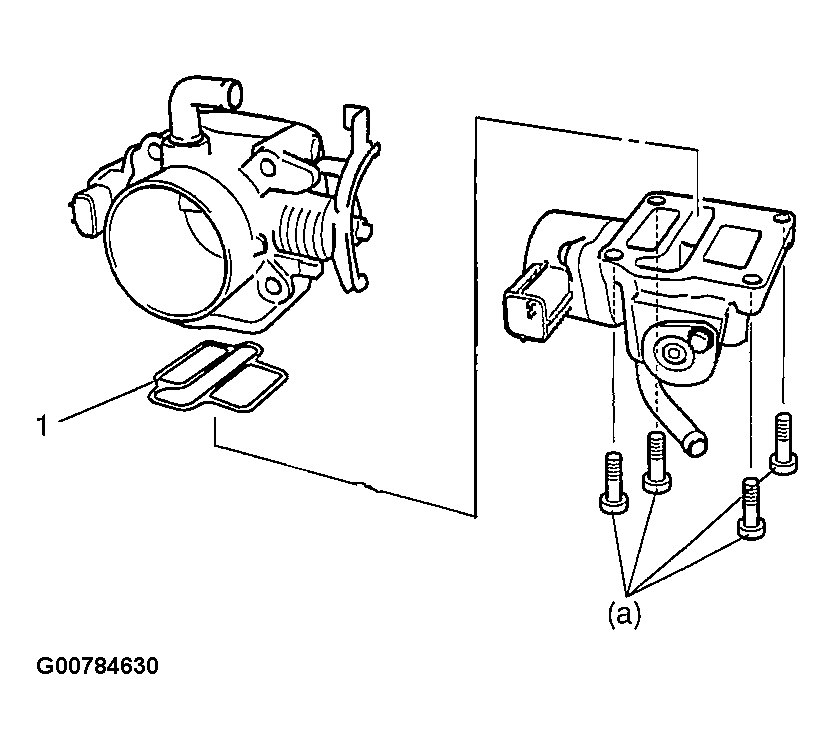

Fig 1: Installing New Gasket To Throttle Body

Courtesy of SUZUKI OF AMERICA CORP.

• Install throttle body to intake manifold referring to THROTTLE BODY REMOVAL AND INSTALLATION .
