Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation: Removal

1. Remove engine cover from cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
2. Disconnect ignition coil coupler.
3. Remove ignition coil bolt (1), and then pull out ignition coil (2).

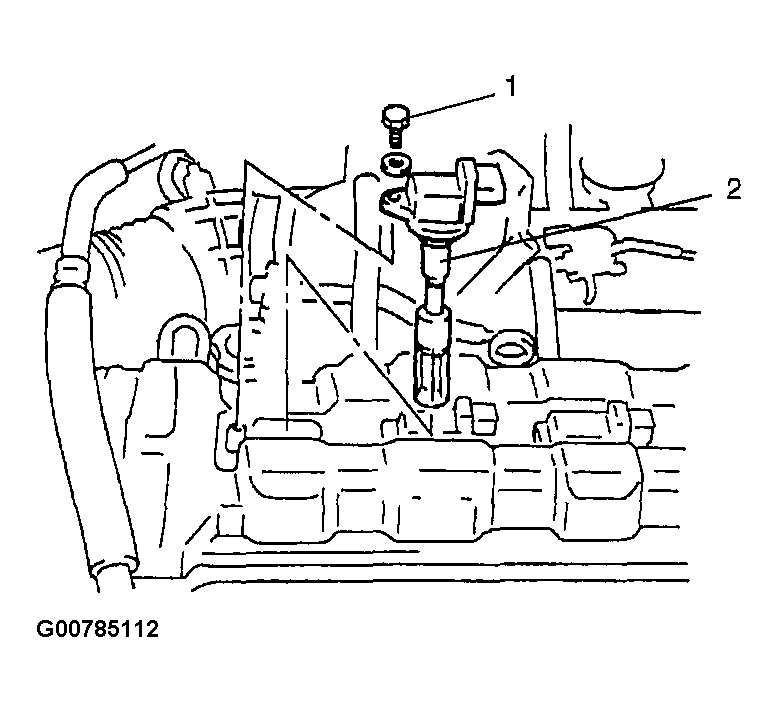

Fig 1: Remove Ignition Coil Bolt & Ignition Coil

Courtesy of SUZUKI OF AMERICA CORP.
