Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation: Installation

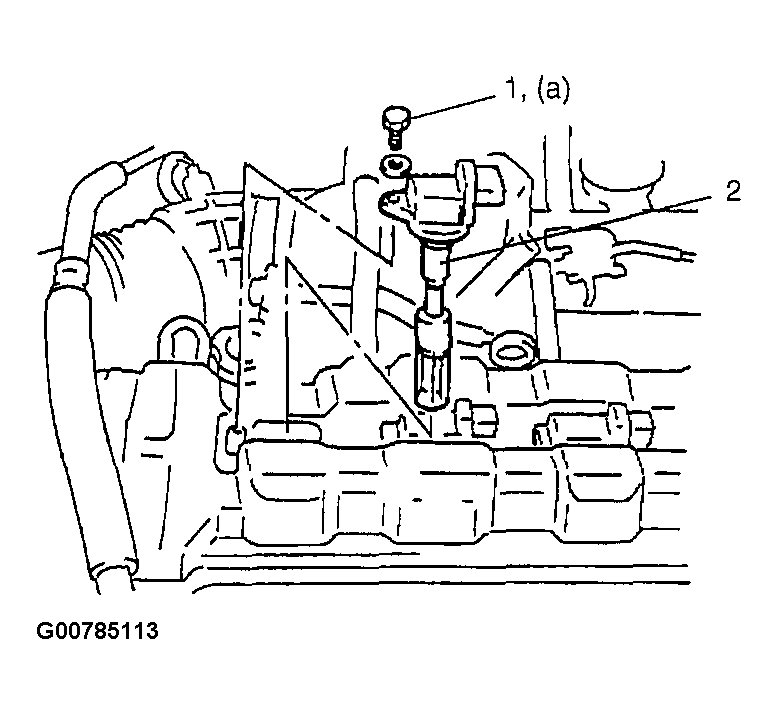

- Install ignition coil (2) securely.
- Tighten ignition coil bolt (1), and then connect ignition coil coupler.
Tightening torque
Ignition coil bolt (a): 3 N.m (0.3 kg-m, 2.5 lb-ft)
- Install engine cover to cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
