Engine Symptom Diagnosis

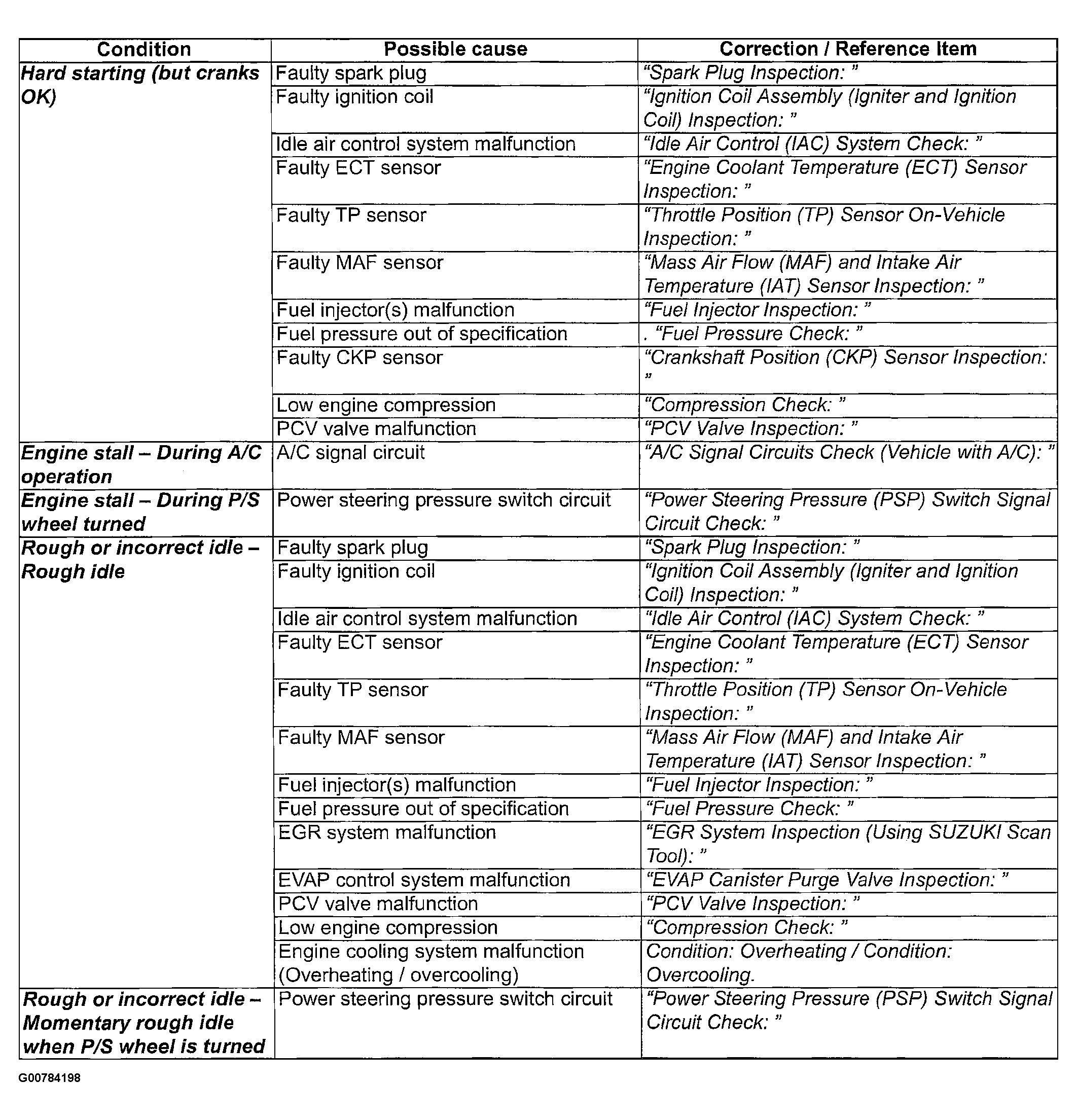

Fig 1: Engine Symptom Diagnosis Table (1 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Engine Symptom Diagnosis Table (2 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Engine Symptom Diagnosis Table (3 of 4)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Engine Symptom Diagnosis Table (4 of 4)

Courtesy of SUZUKI OF AMERICA CORP.
