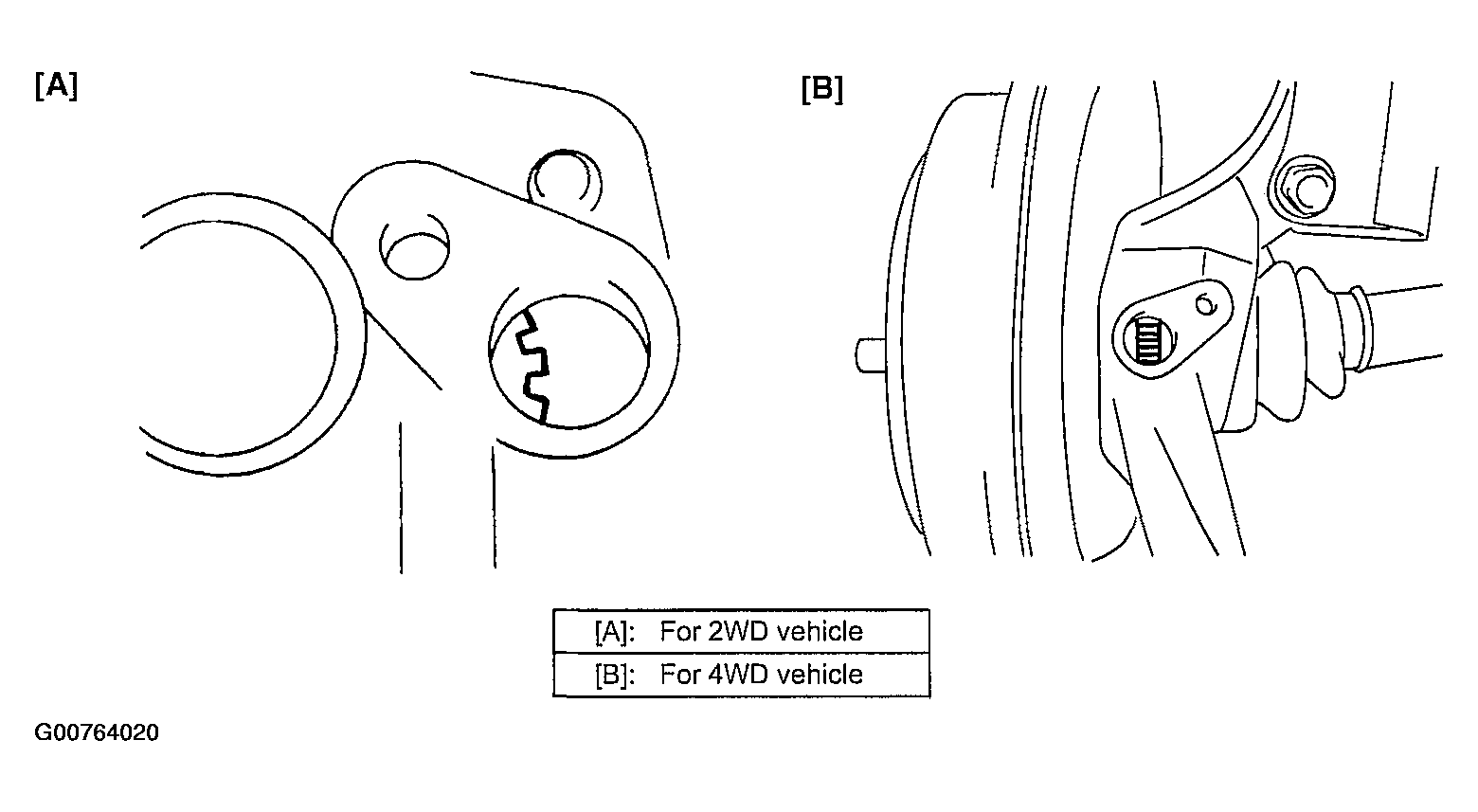

Rear Wheel Speed Sensor Ring On-Vehicle Inspection
- Check ring serration (teeth) for being missing, damaged or deformed.
- Turn wheel and check if ring rotation is free from eccentricity and looseness.
- Check that no foreign material is attached.
- If any faulty is found, repair or replace.
Courtesy of SUZUKI OF AMERICA CORP.
