Engine Basic Check

Step 1 - 5:

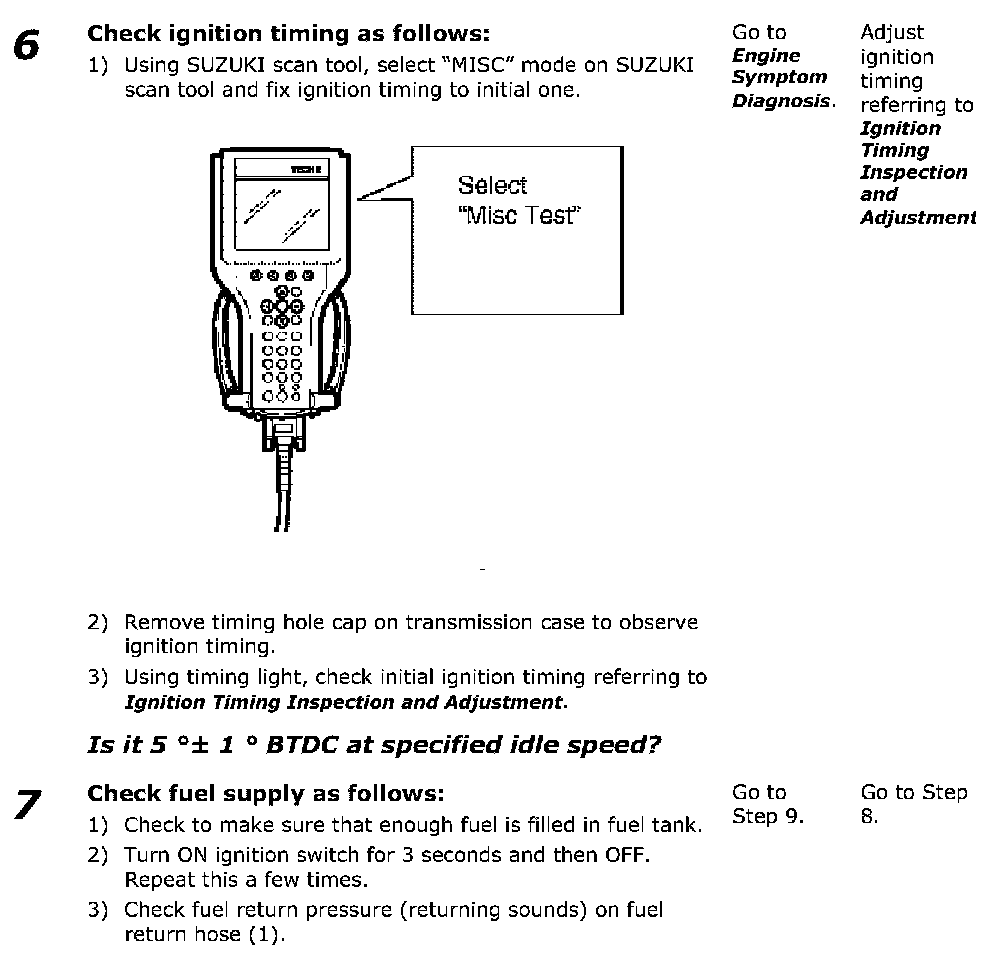

Step 6 - 7:

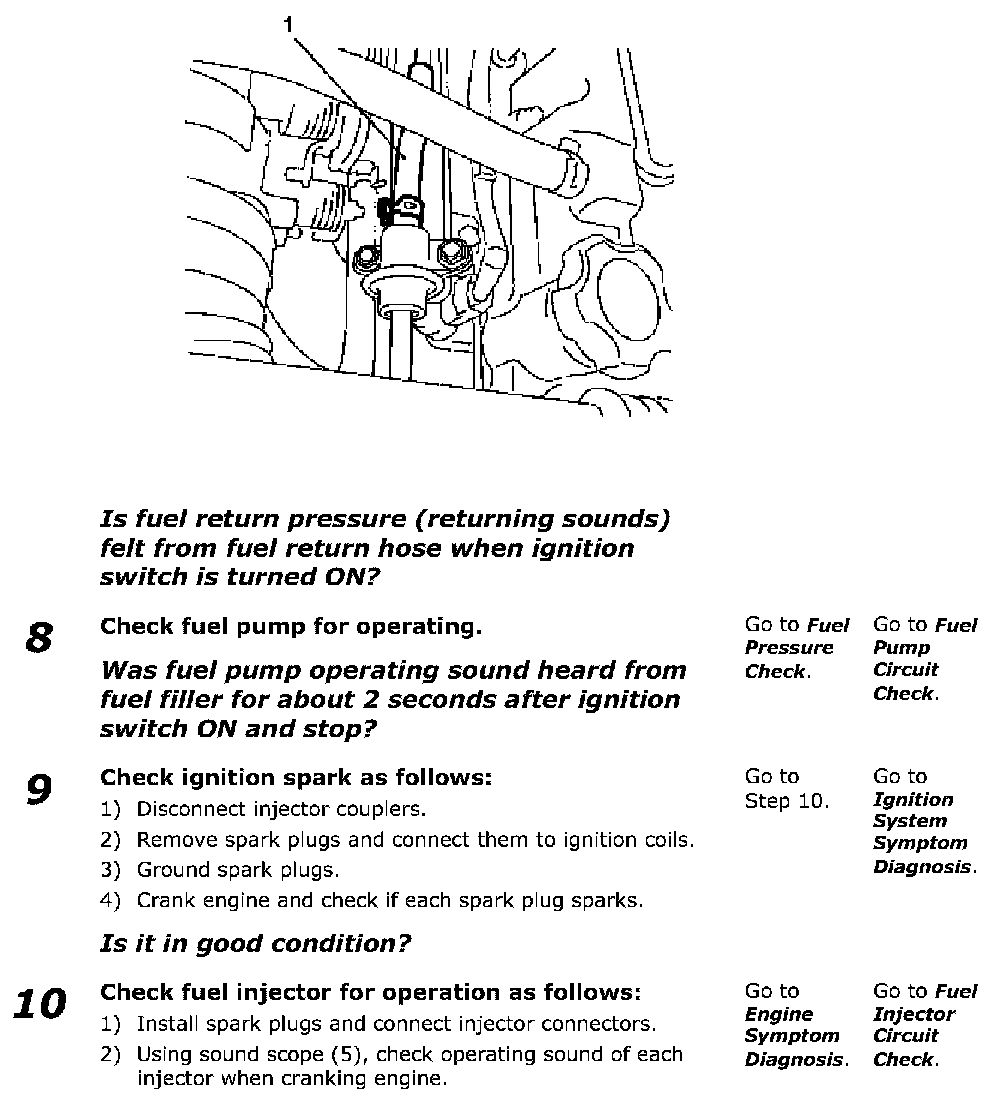

Step 7 - 10:




Step 10:




This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection.
Follow the flow carefully.
