Radiator Cooling Fan: Testing and Inspection

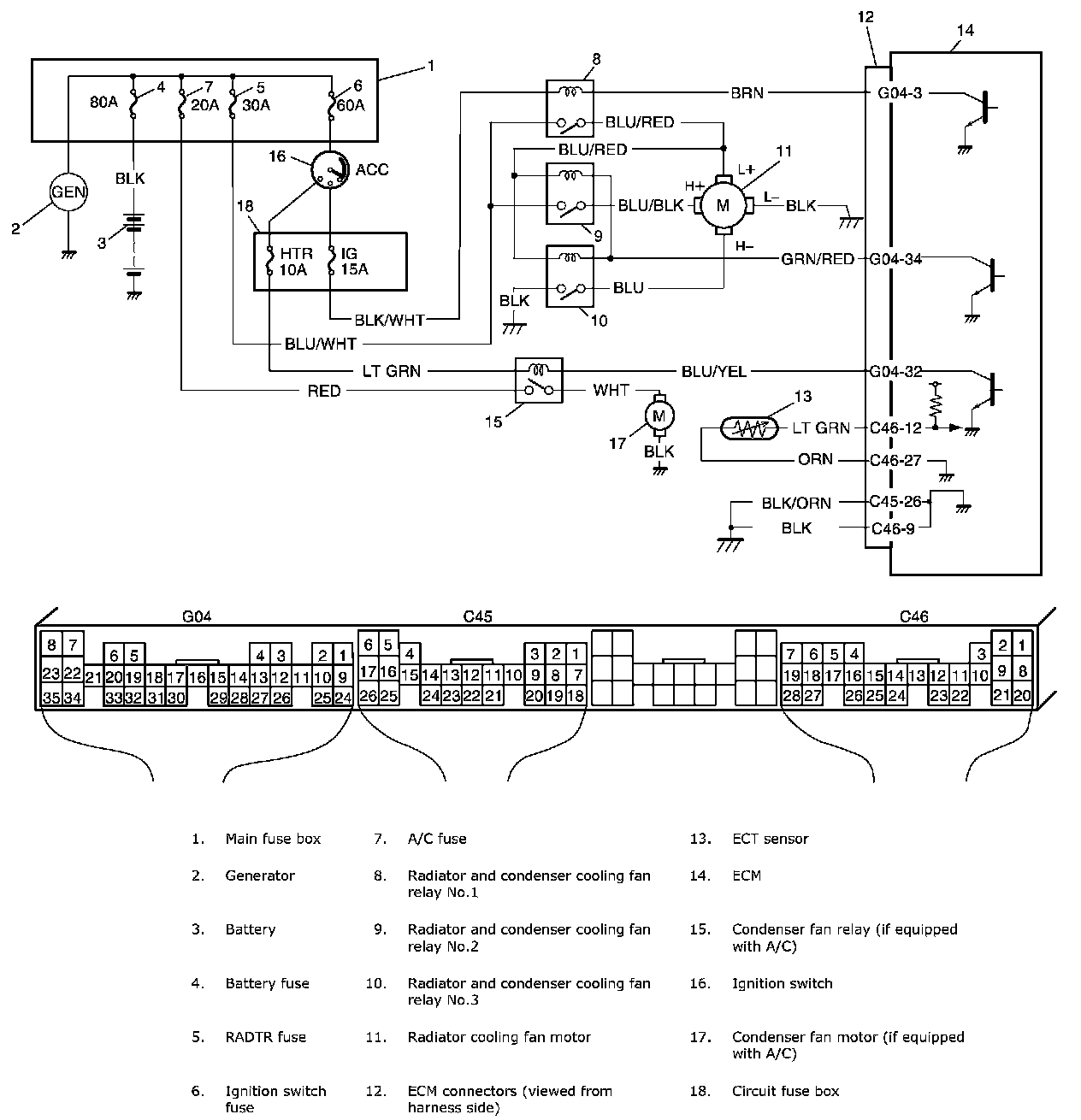

Wiring Diagram:

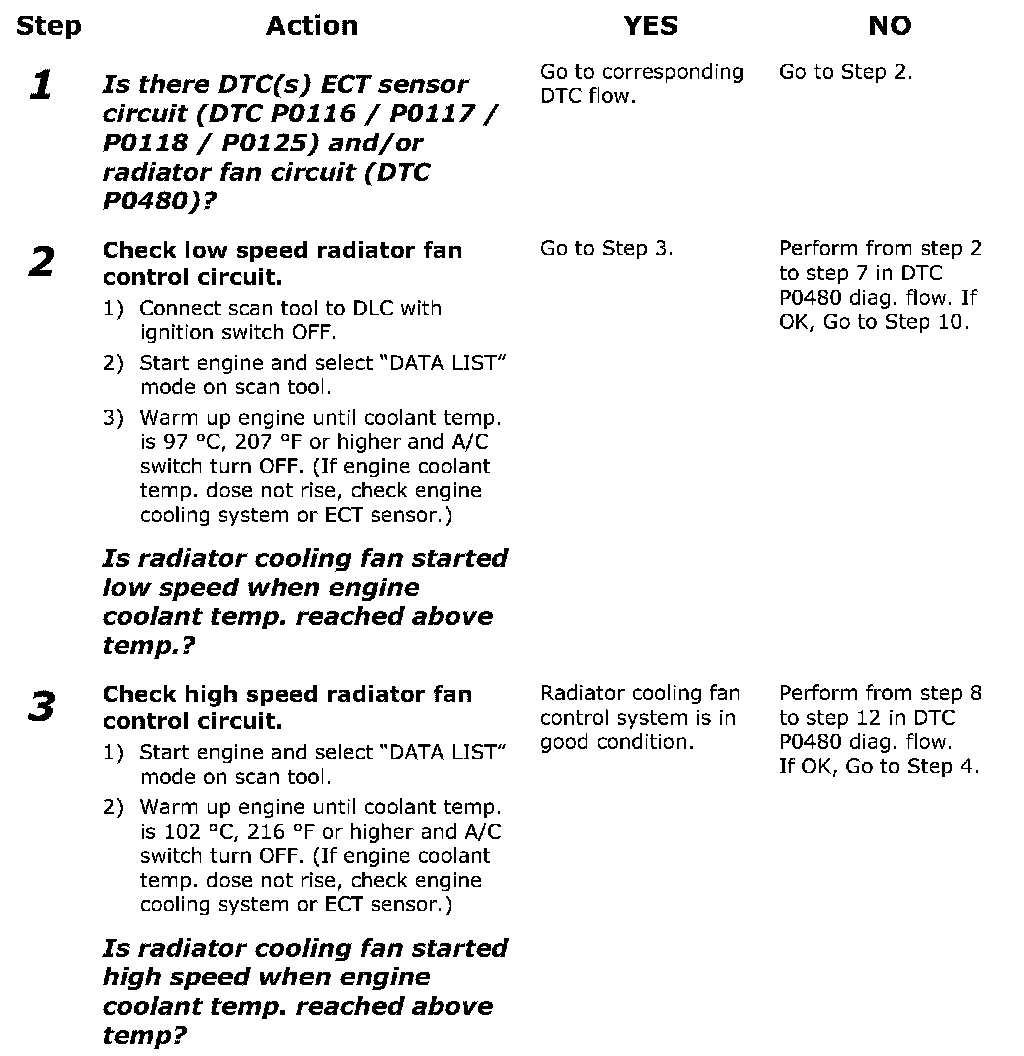

Step 1 - 3:

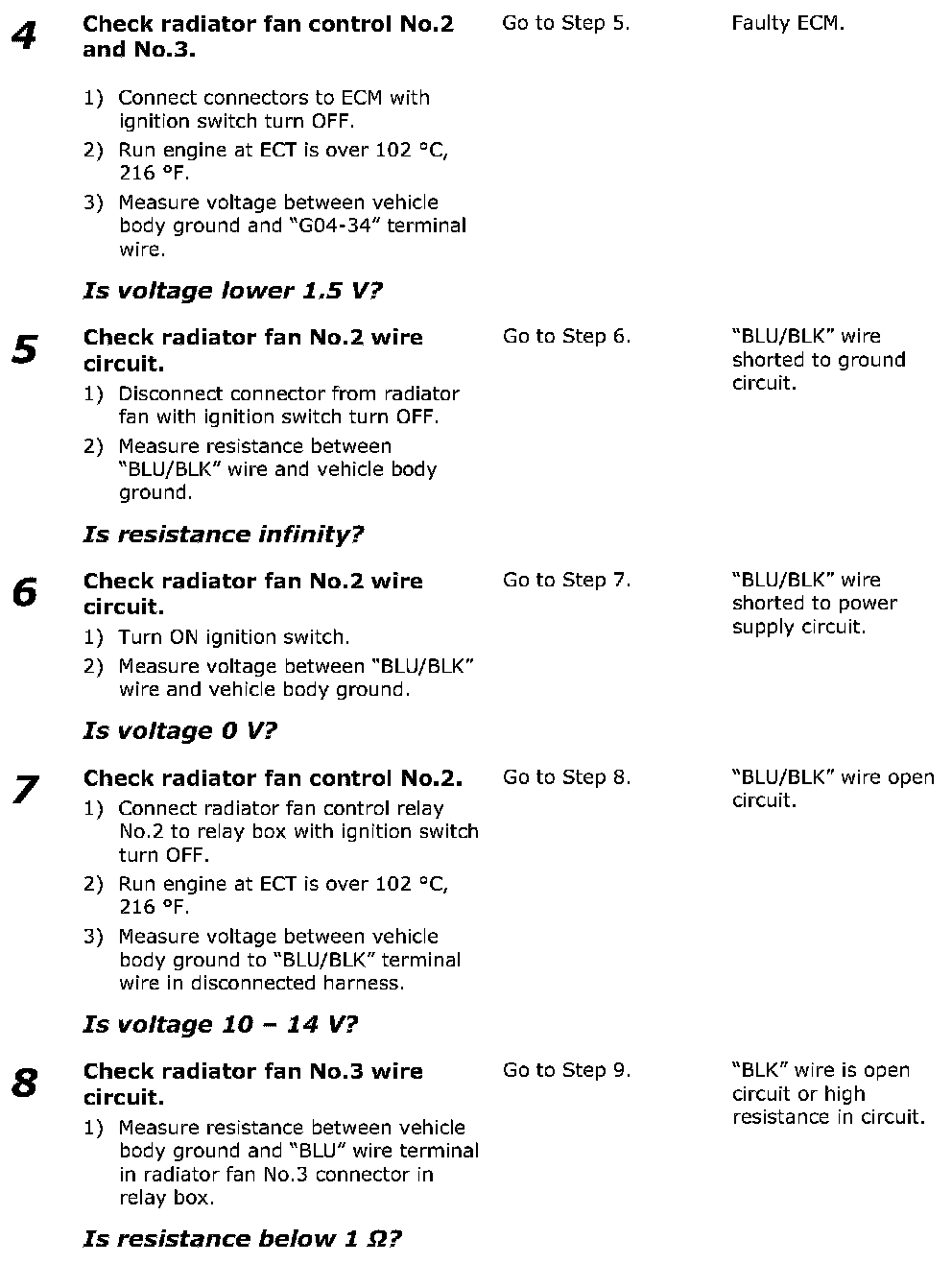

Step 4 - 8:

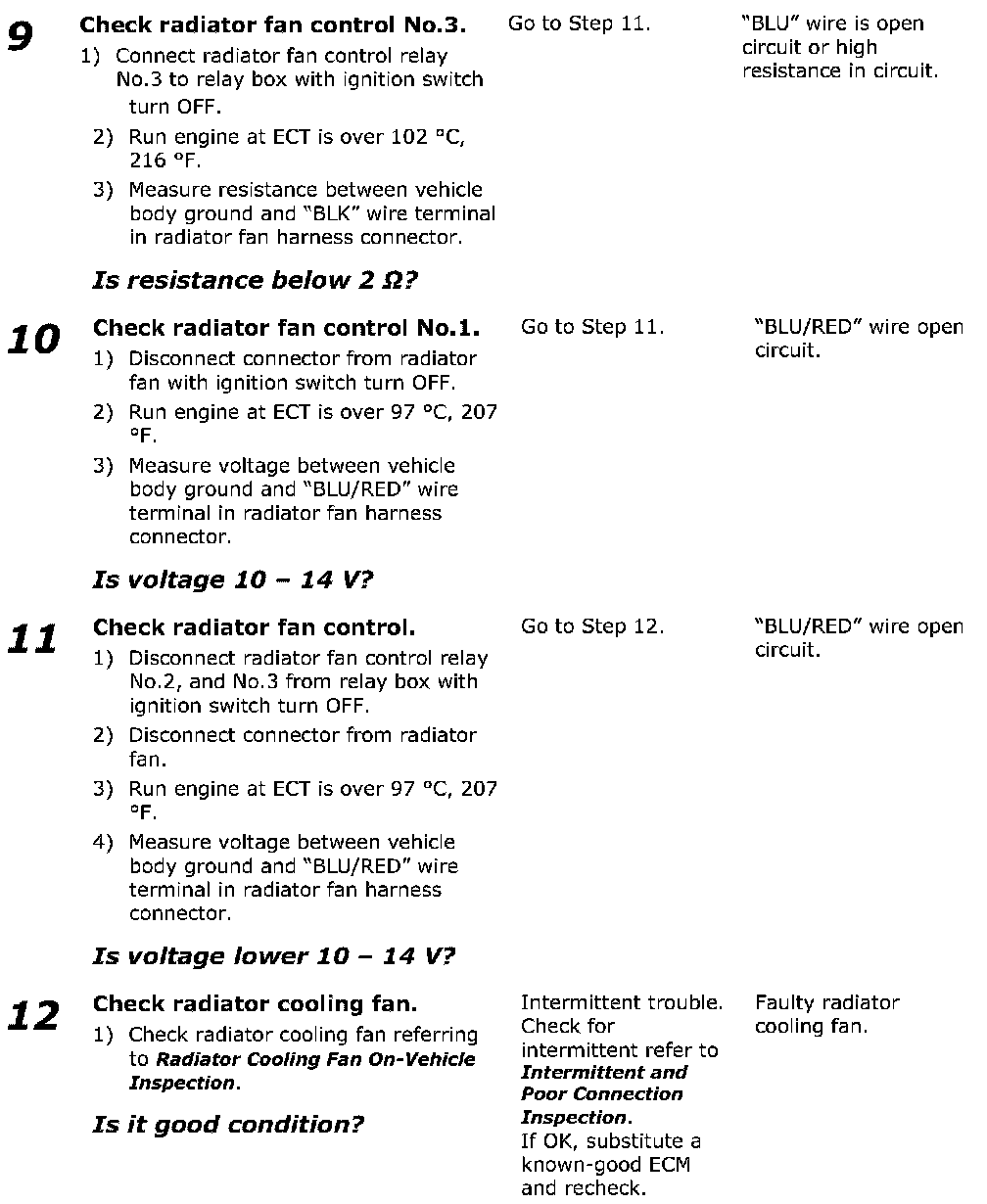

Step 9 - 12:
Troubleshooting
WARNING: Keep hands, tools, and clothing away from engine cooling fan to help prevent personal injury. This fan is electric and can come on whether or not the engine is running. The fan can start automatically in response to the ECT sensor with the ignition switch in the "ON" position.
