Emission Control Systems

Evaporative Emission Control System Diagram (Schematic And Routing):

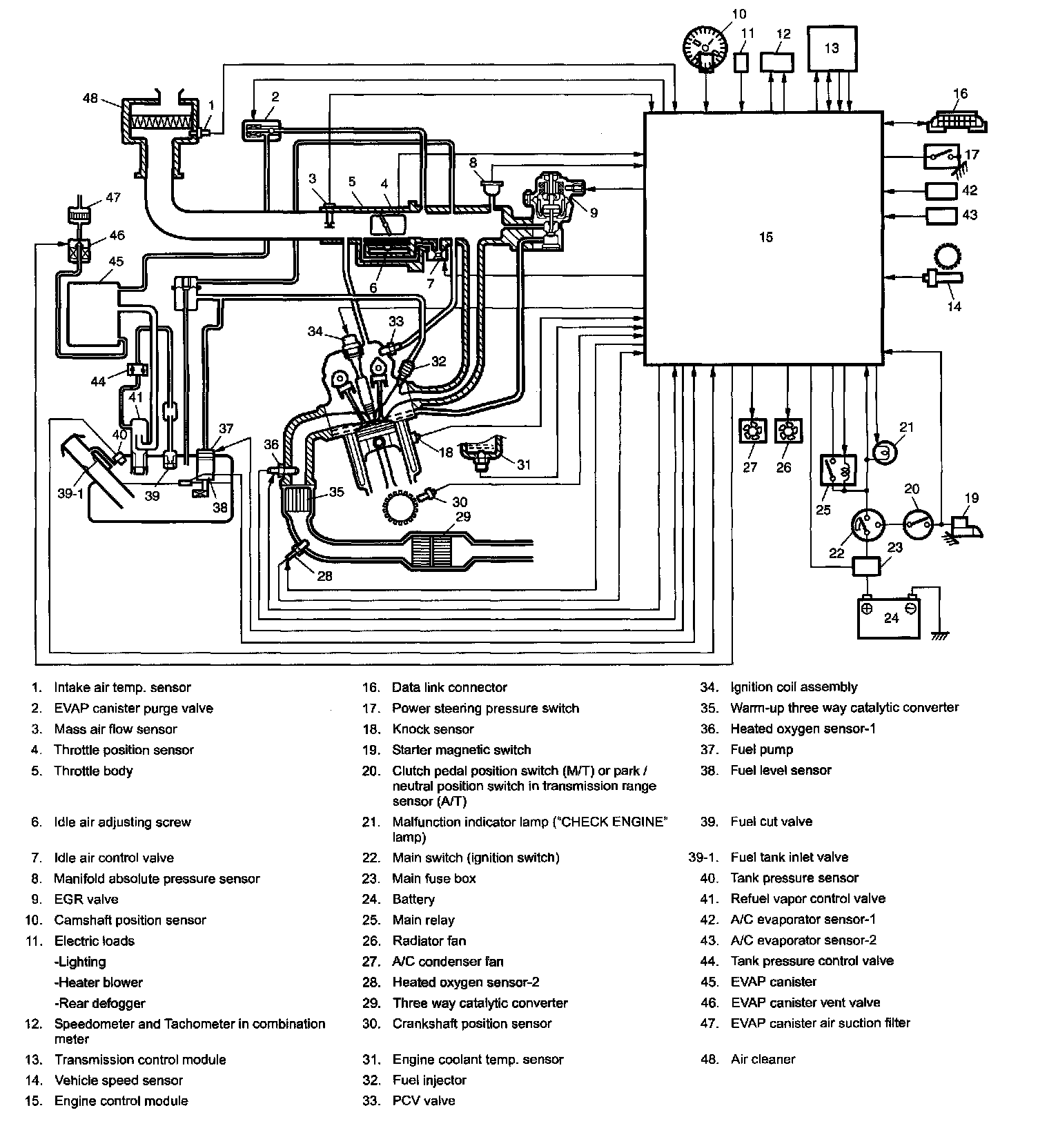

Engine And Emission Control System Diagram:



Schematic And Routing Diagram:
