Component Tests and General Diagnostics

Door Mirror Heater (If Equipped) Inspection

1. Remove door trim referring to Front Door Glass Removal and Installation.

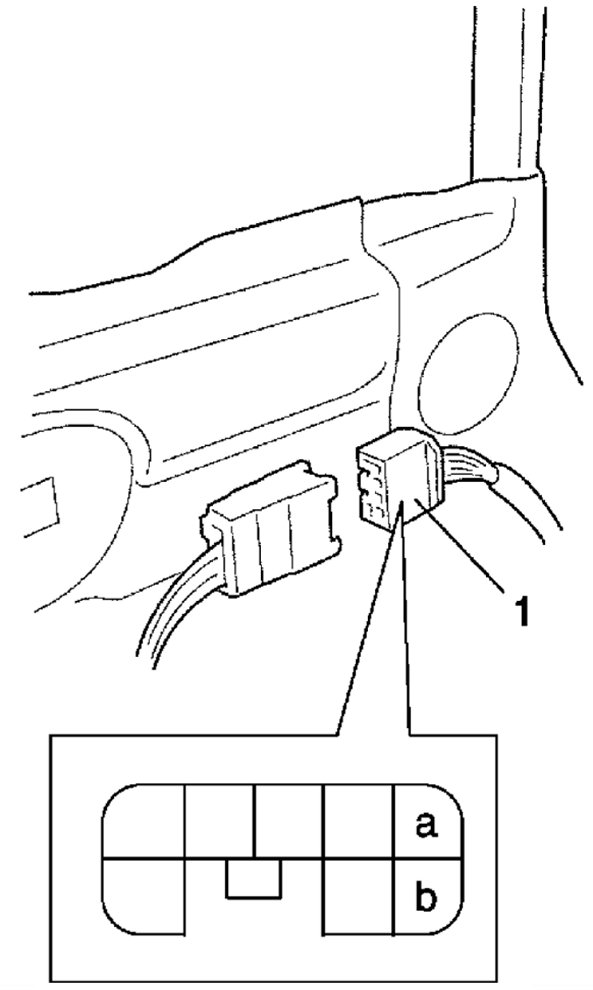

2. Disconnect door mirror coupler (1).
3. Check for continuity between terminals "a" and "b". If no continuity, replace outside mirror.
