Power Door Lock Actuator: Testing and Inspection

Power Door Lock Actuator Inspection

1. Disconnect power door lock actuator coupler.

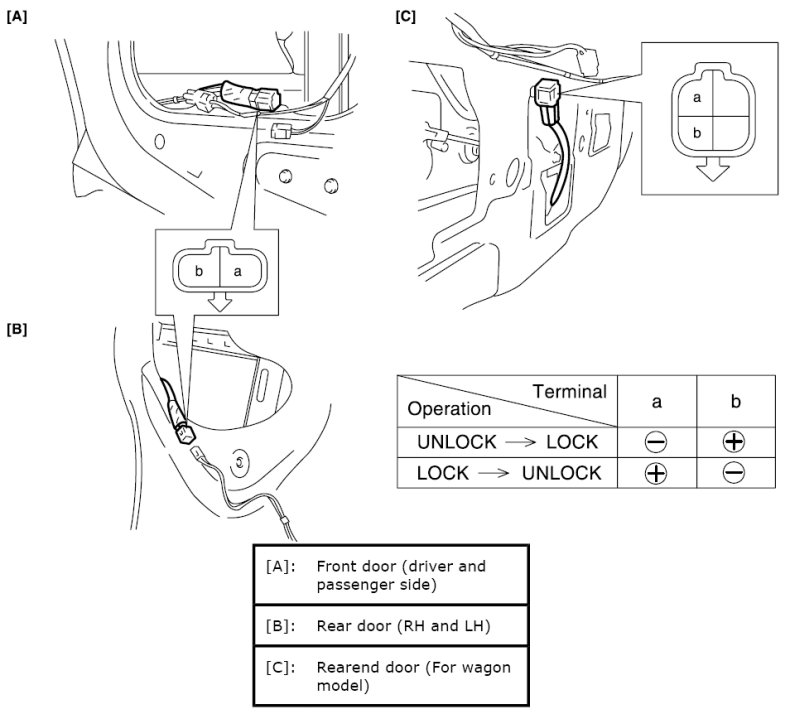

2. Connect battery positive (+) and negative (-) terminals to the door lock actuator terminals (a, b) as shown.
If it does not operate as specified in the following table, replace door lock actuator
