P2026

DTC P2026: EVAP Fuel Vapor Temp. Sensor Circuit Low Voltage

Wiring Diagram:

DTC Detecting Condition And Trouble Area:

DTC Confirmation Procedure
1. With ignition switch turned OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC using scan tool.
3. Check DTC and pending DTC.

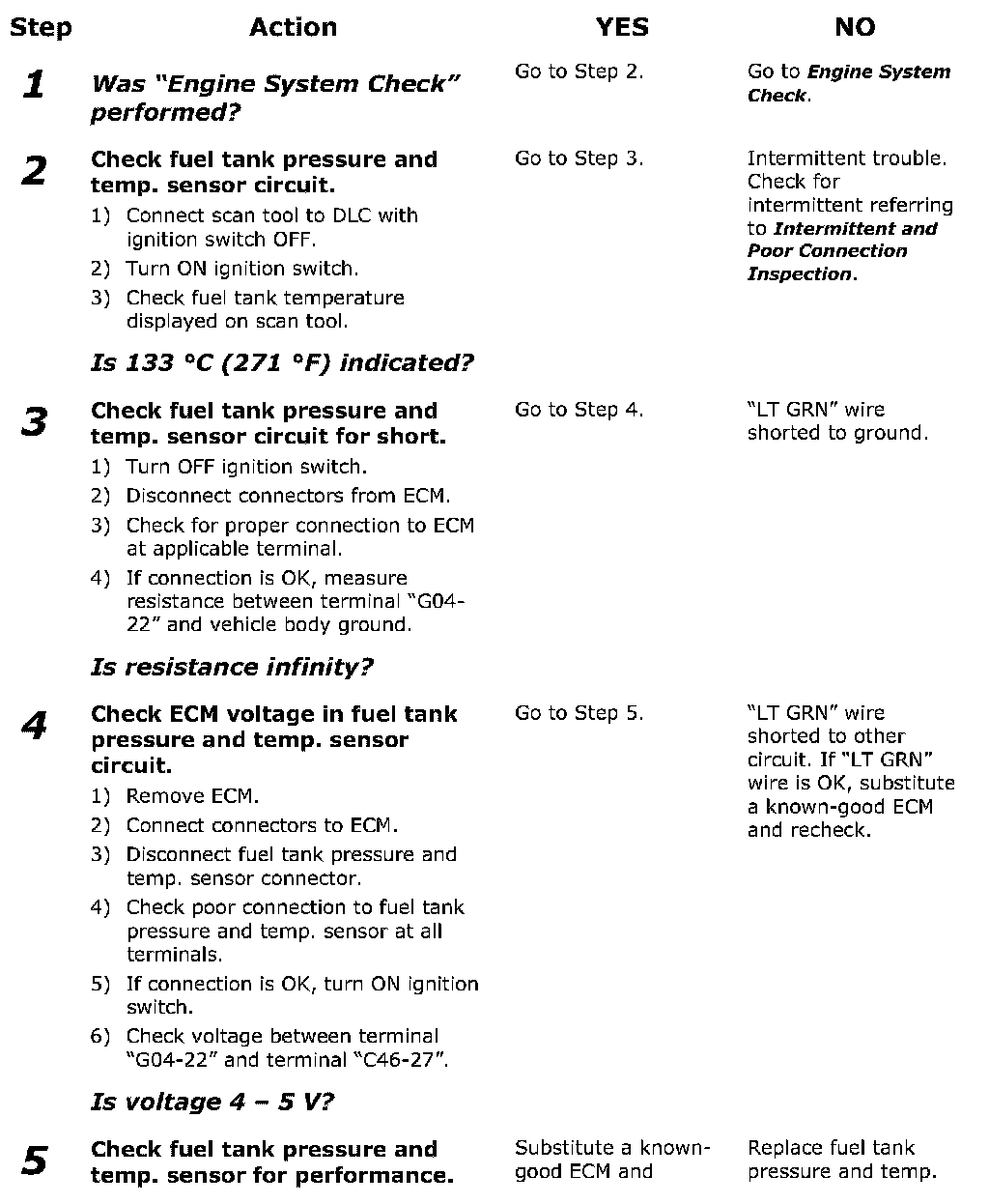

Step 1 - 5:

Step 5:

Troubleshooting

WARNING: In order to reduce risk of fire and personal injury, this work must be performed in a well ventilated area and away from any open flames such as gas hot water.
