Clutch Master Cylinder Disassembly and Assembly: Assembly

Apply brake fluid to inside of piston assembly and cylinder body.
Install piston assembly into cylinder.
With piston pushed down, install circlip (1) as shown. And install boot.

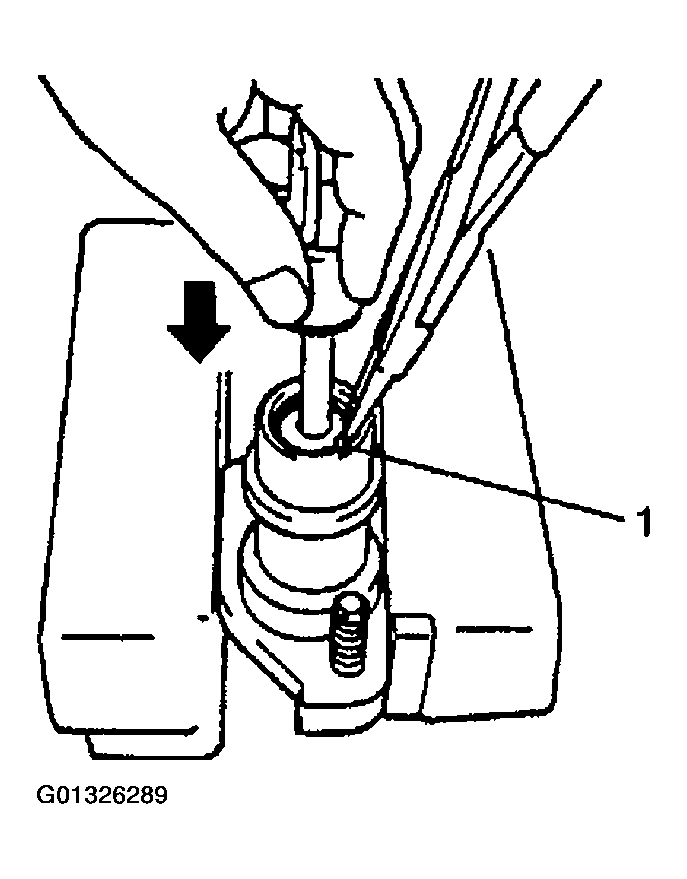

Fig 1: Installing Circlip
Courtesy of SUZUKI OF AMERICA CORP.
Tighten lock nut to specified torque.
Tightening torque

Clevis lock nut (a): 10 N.m (1.0 kg-m, 7.5 lb-ft)

Fig 2: Identifying Lock Nut
Courtesy of SUZUKI OF AMERICA CORP.
For installation of master cylinder to vehicle, refer to CLUTCH MASTER CYLINDER REMOVAL AND INSTALLATION .
