Disabling System (Ascender)
NOTE:
When AIR BAG or SIR fuse is removed, and ignition is in ON position, AIR BAG warning light will illuminate. This is normal operation and does not indicate SIR system malfunction.
- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn front wheels to straight-ahead position. Turn ignition switch to LOCK position. Remove key from ignition switch. Remove SIR fuse from underhood fuse block. Wait one minute.
- Zone 1
To disable inflatable restraint Electronic Front Sensors (EFS) located in SIR Zone 1, remove the grille. Remove headlamp wire harness from the retaining clip and raise wire harness to gain access to the front end sensor. Loosen front end sensor retaining bolts and protective cover. Remove sensor assembly from the frame. See Fig 1. Remove Connector Position Assurance (CPA) clip from the sensor electrical connector and disconnect sensor electrical connector. - Zones 2 & 6
To disable left or right front door inflatable restraint Side Impact Sensor (SIS) located in SIR Zones 2 (left) or 6 (right), remove accessory switch panel. Remove 2 trim panel retaining bolts. Release 9 trim panel fasteners from door and remove trim panel from the door. Remove CPA clip from side air bag sensor Yellow 2-pin connector located near the bottom of door. See Fig 2. Disconnect side air bag sensor Yellow 2-pin connector located near the bottom of door. - Zone 3

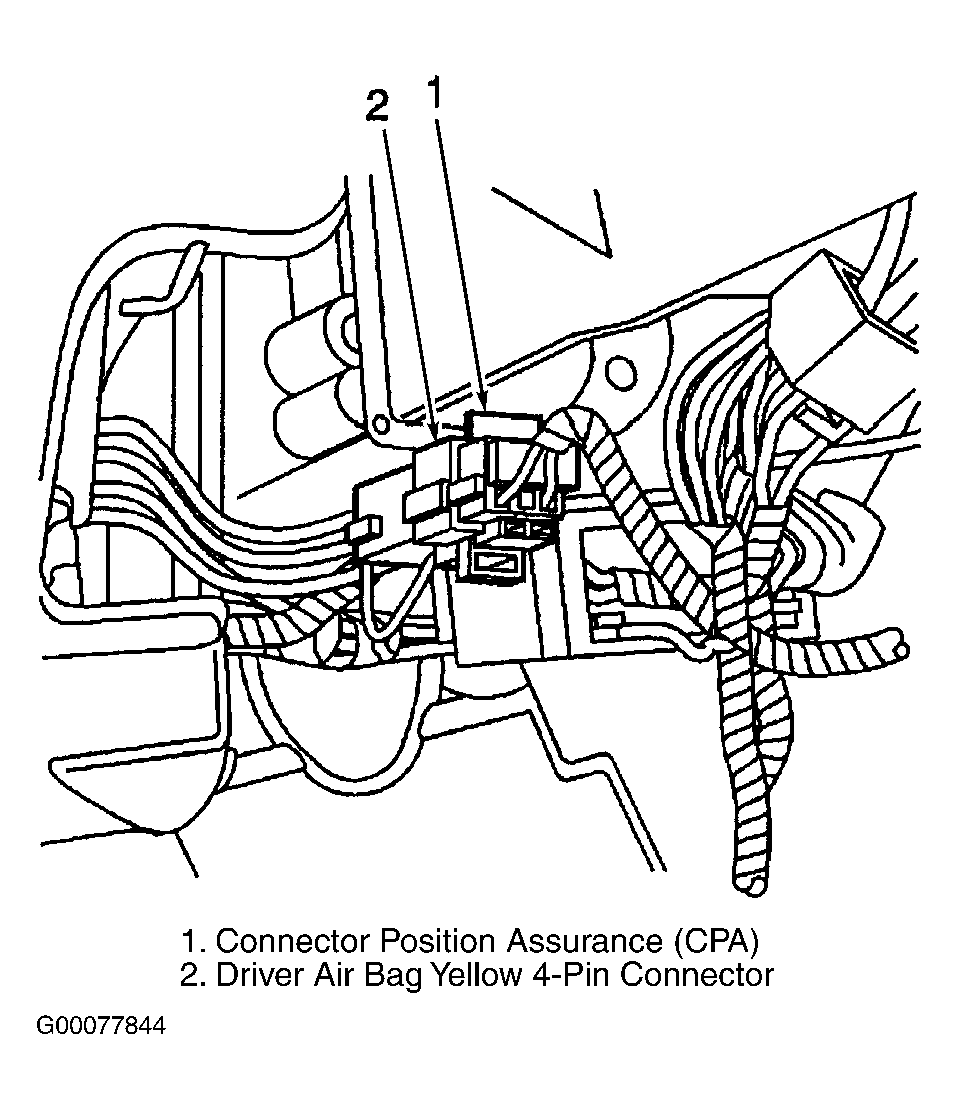

To disable driver's air bag module and coil located in SIR Zone 3, remove left instrument panel closeout/insulator panel. Remove 4 trim panel retaining screws, release trim panel retaining clips and remove trim panel. Remove CPA clip from driver's air bag module Yellow 4-pin connector located left of steering column, near knee bolster. See Fig 3. Disconnect driver's air bag module Yellow 4-pin connector. - Zone 5
To disable passenger's air bag module located in SIR Zone 5, access passenger's air bag module Yellow 4-pin connector through glove box. Remove CPA clip from passenger's air bag module Yellow 4-pin connector located behind instrument panel support. Disconnect passenger's air bag module Yellow 4-pin connector located behind instrument panel support. - Zone 7
To disable inflatable restraint side air bag module located in SIR Zone 7, remove CPA clip from left side air bag module Yellow 2-pin connector located under driver's seat. Disconnect left side air bag module Yellow 2-pin connector located under driver's seat. - Zone 8
To disable inflatable restraint Sensing and Diagnostic Module (SDM) located in SIR Zone 8, disable Zones 3, 5, 7 and 9. Disconnect Yellow component connectors. - Zone 9
To disable inflatable restraint side air bag module located in SIR Zone 9, remove CPA clip from right side air bag module Yellow 2-pin connector located under passenger's seat. Disconnect right side air bag module Yellow 2-pin connector located under passenger's seat.
CAUTION:
Vehicle is equipped with 2 inflatable restraint electronic front end sensors. When performing this procedure ensure both front end sensors are disabled.
