Automatic Gear Shift Diagram

Automatic shift schedule as a result of shift control is shown. In case that select lever is shifted to "L" at a higher than 55 km/h or 34 mile/h speed, 2nd or 3rd gear is operated and then down shifts to "1st" at a speed lower than that. No up shift is available in "L".

The same as, the select lever is shifted to "2" at a higher than 105 km/h (66 mile/h) speed, 3rd gear is operated and then down shifts to "2nd" at a speed lower than that.

[Power Mode For H25 Engine Model]

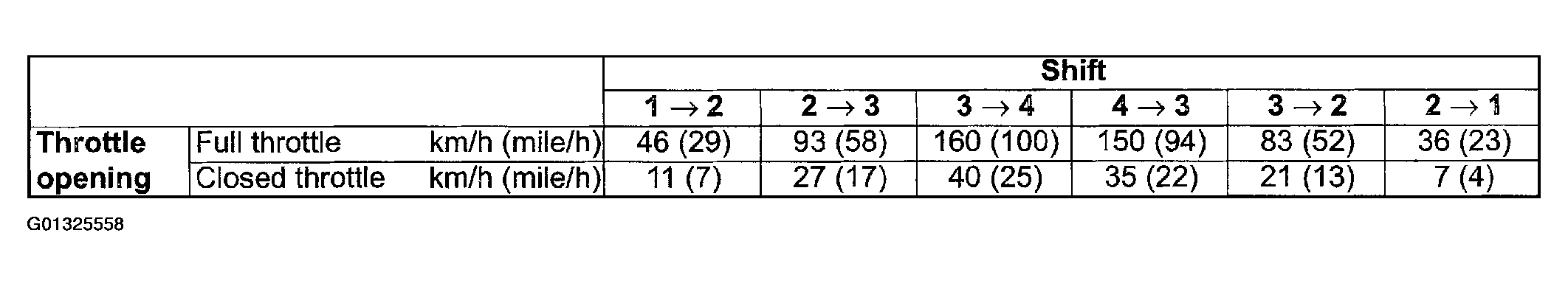

Fig 1: Identifying Power Mode (H25 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

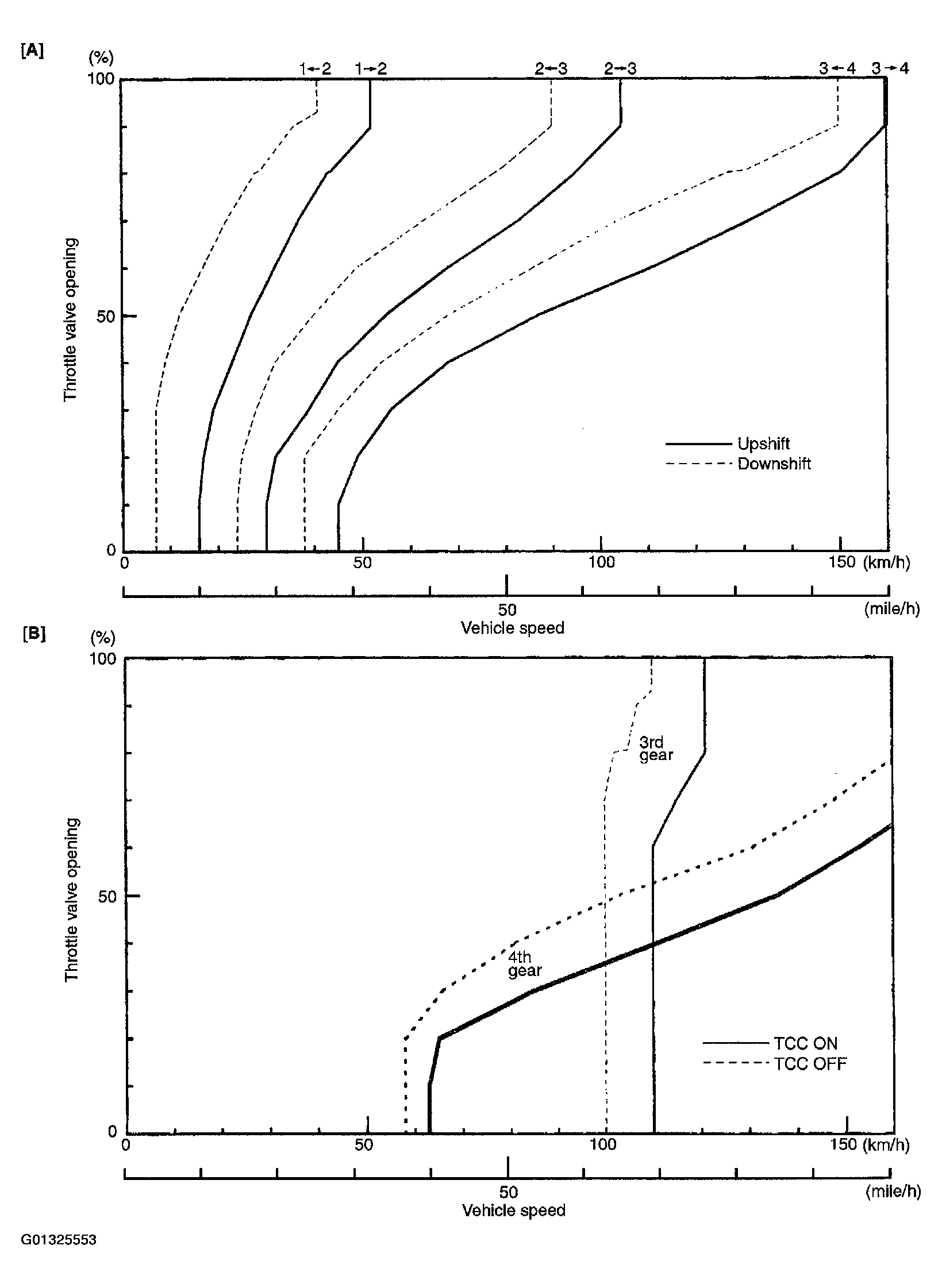

Fig 2: Power Mode Gear Shift Diagram [A] And TCC Lock-Up Diagram [B] (H25 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

[Normal Mode For H25 Engine Model]

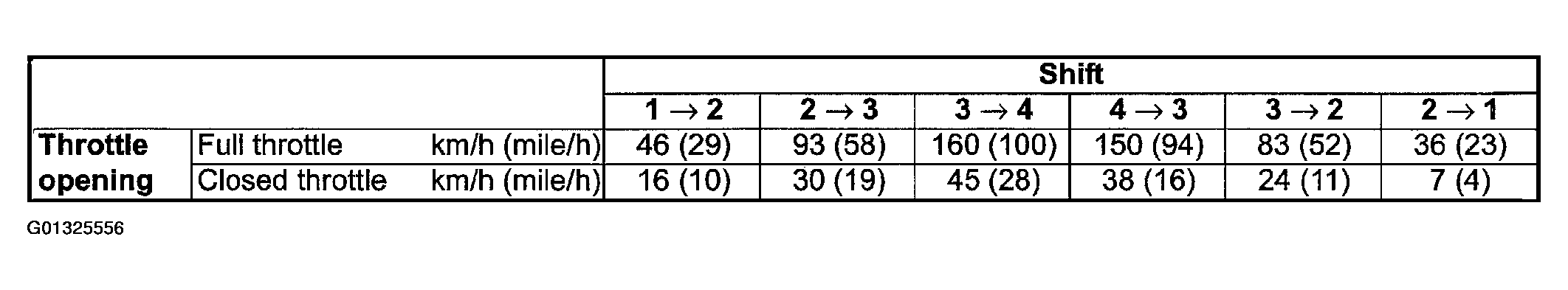

Fig 3: Identifying Normal Mode (H25 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

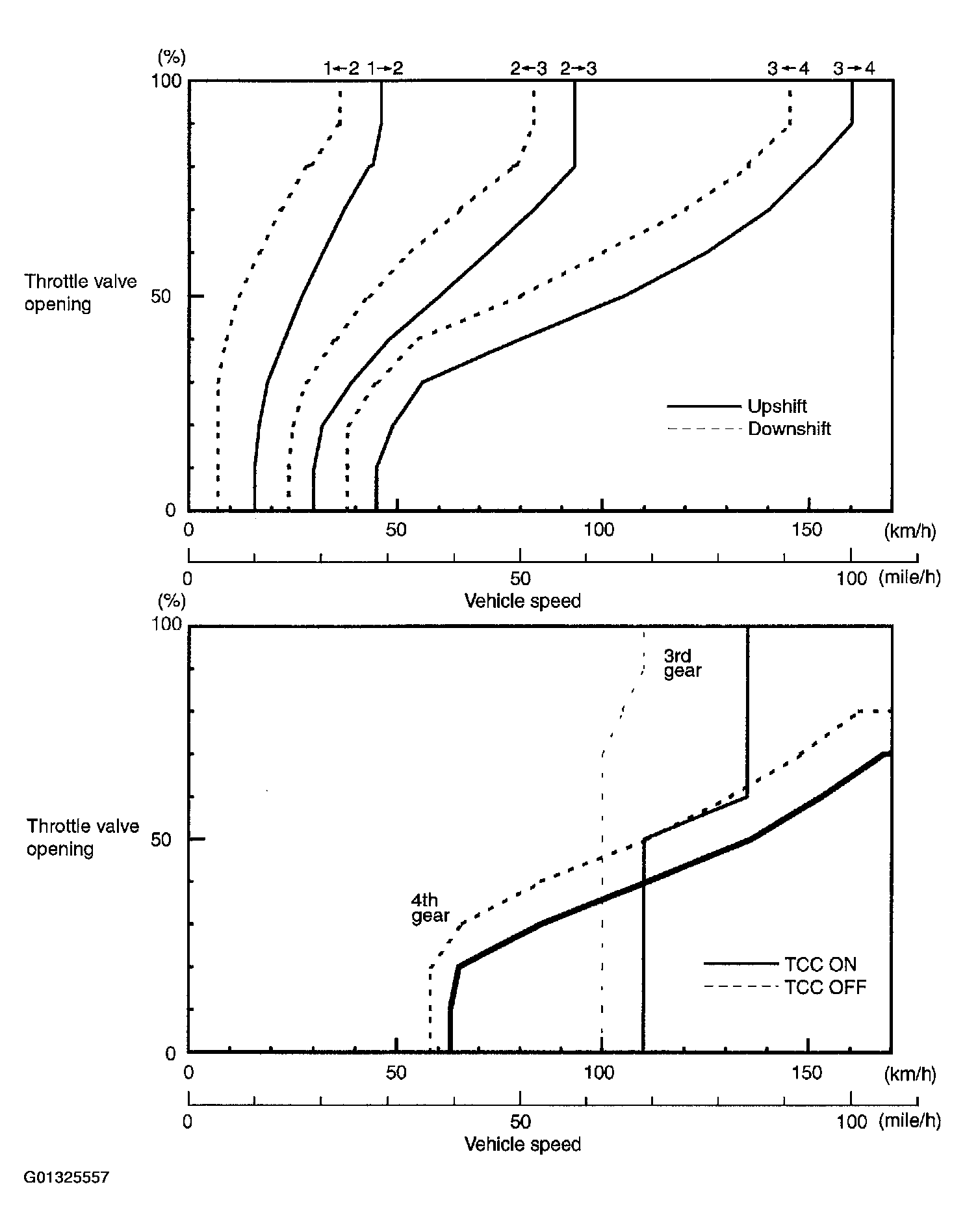

Fig 4: Normal Mode Gear Shift Diagram [A] And TCC Lock-Up Diagram [B] (H25 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

[Power Mode for H27 Engine Model]

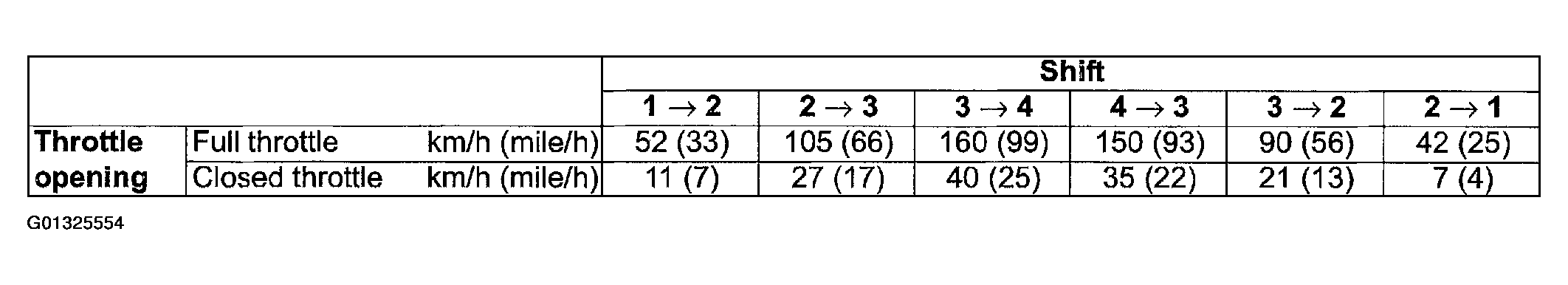

Fig 5: Identifying Power Mode (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

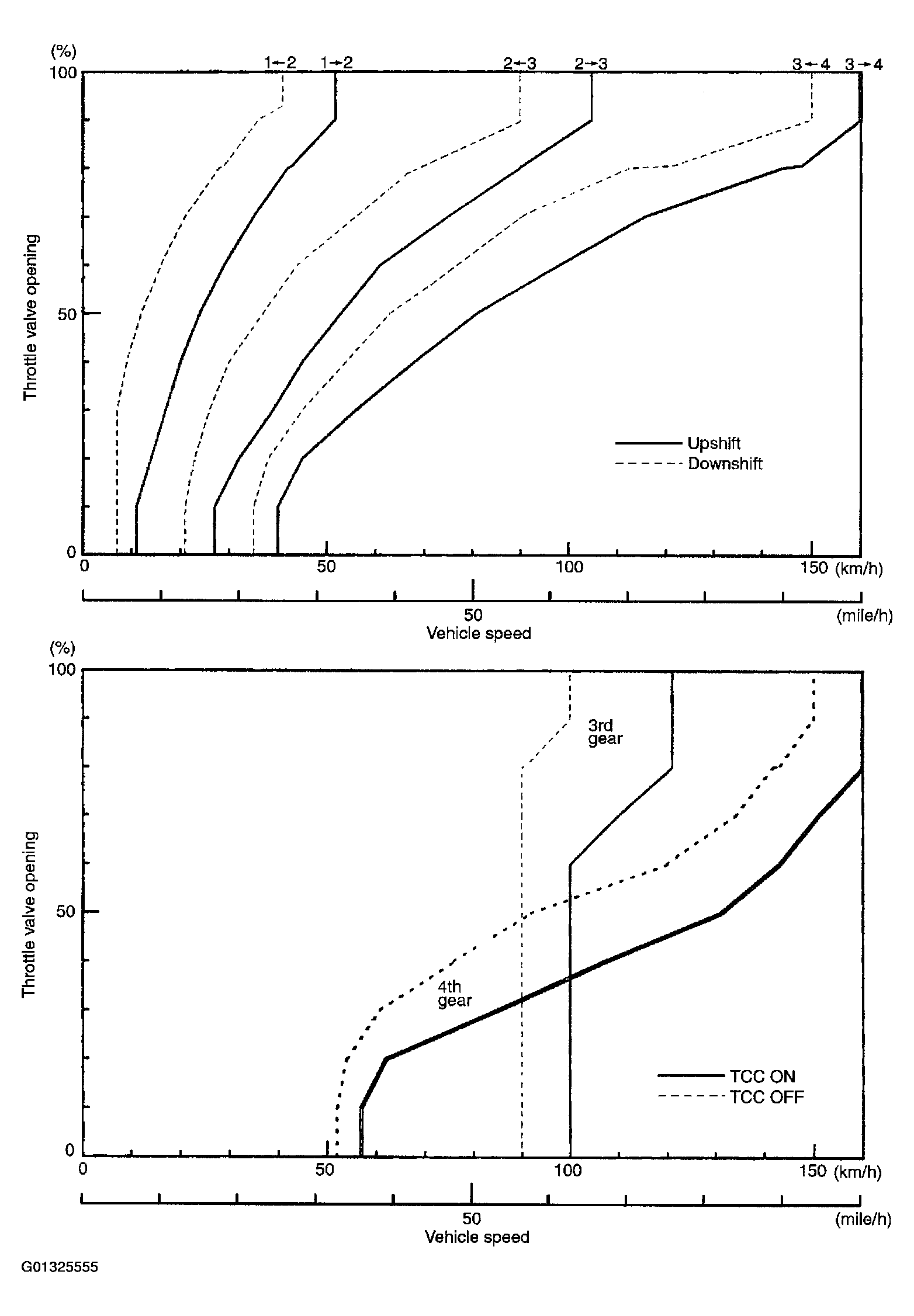

Fig 6: Power Mode Gear Shift Diagram [A] And TCC Lock-Up Diagram [B] (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

[Normal Mode For H27 Engine Model]

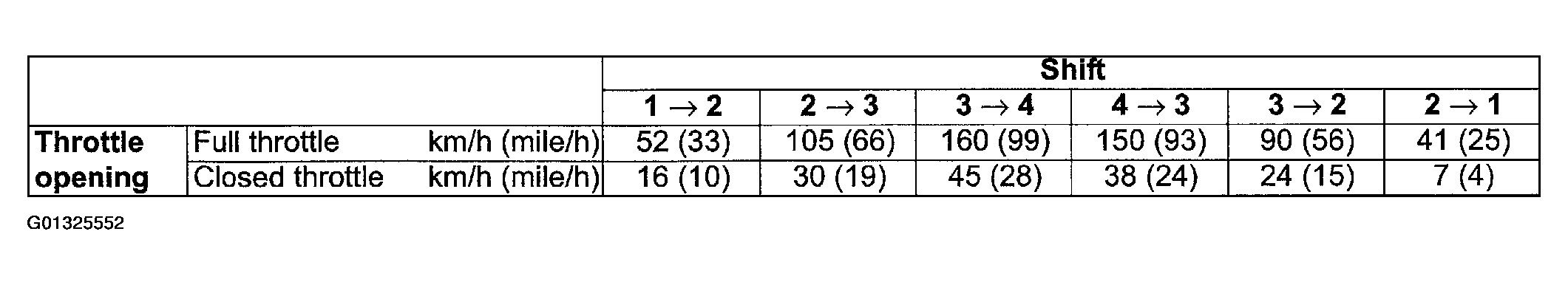

Fig 7: Identifying Normal Mode (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.

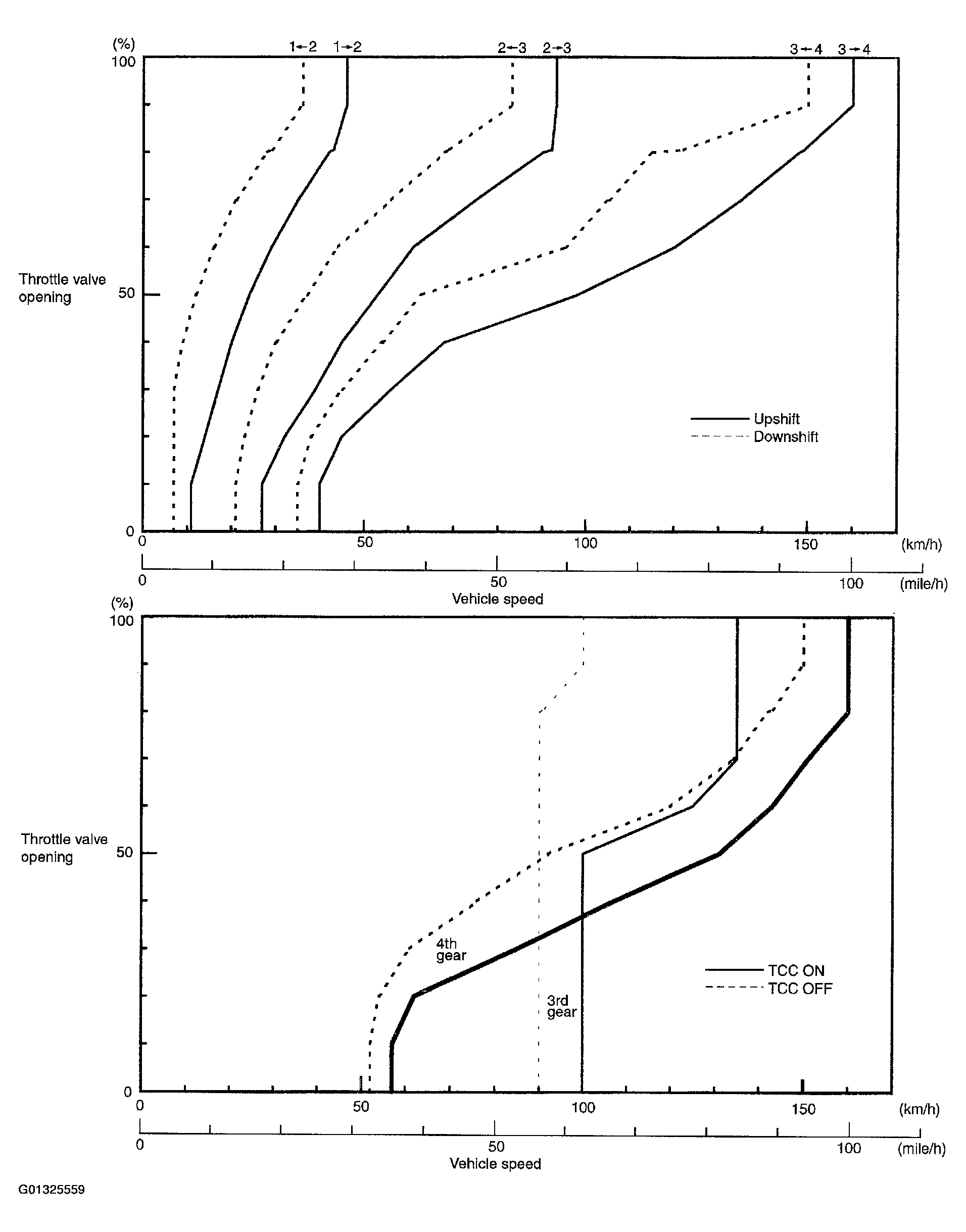

Fig 8: Normal Mode Gear Shift Diagram [A] And TCC Lock-Up Diagram [B] (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.
