DTC Detecting Condition and Trouble Area

WARNING: This page is about a different variant/trim than selected.

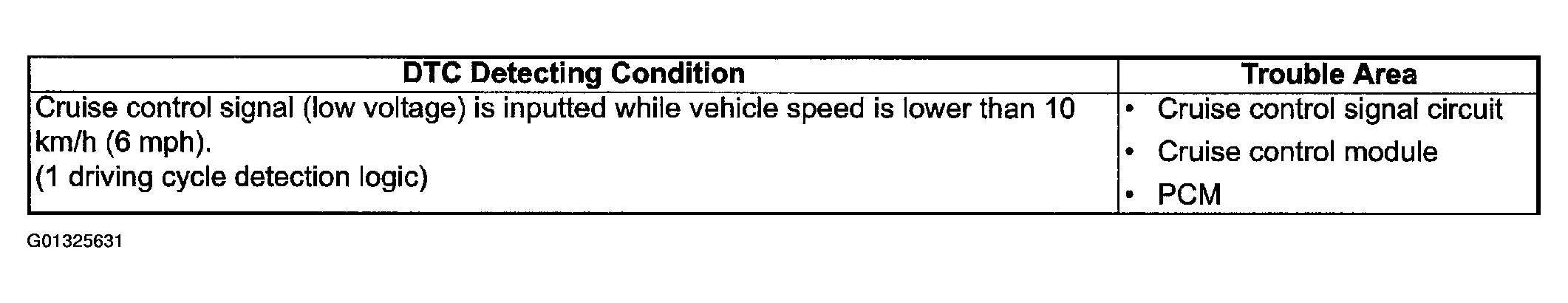

Fig 1: DTC P1740 Detecting Condition & Trouble Area Chart
G01325631Courtesy of SUZUKI OF AMERICA CORP.
