DTC Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • When performing a road test, select a place where there is no traffic or possibility of a traffic accident and be very careful during testing to avoid occurrence of an accident.
  • Road test should be carried out with 2 persons, a driver and a tester, on a level road.
  1. Connect scan tool to DLC with ignition switch OFF.
  2. Clear DTC, pending DTC and freeze frame data in PCM memory by using scan tool and start engine.
  3. Shift A/T selector lever to each of "L", "2", "D", "N", "R" and "P" ranges for 30 seconds each.
  4. Increase vehicle speed to about 70 km/h (45 mile/h) in "D" range.
  5. Keep driving above vehicle speed for 30 seconds.
  6. Release accelerator pedal, decrease vehicle speed and stop vehicle.
  7. Check pending DTC and DTC.

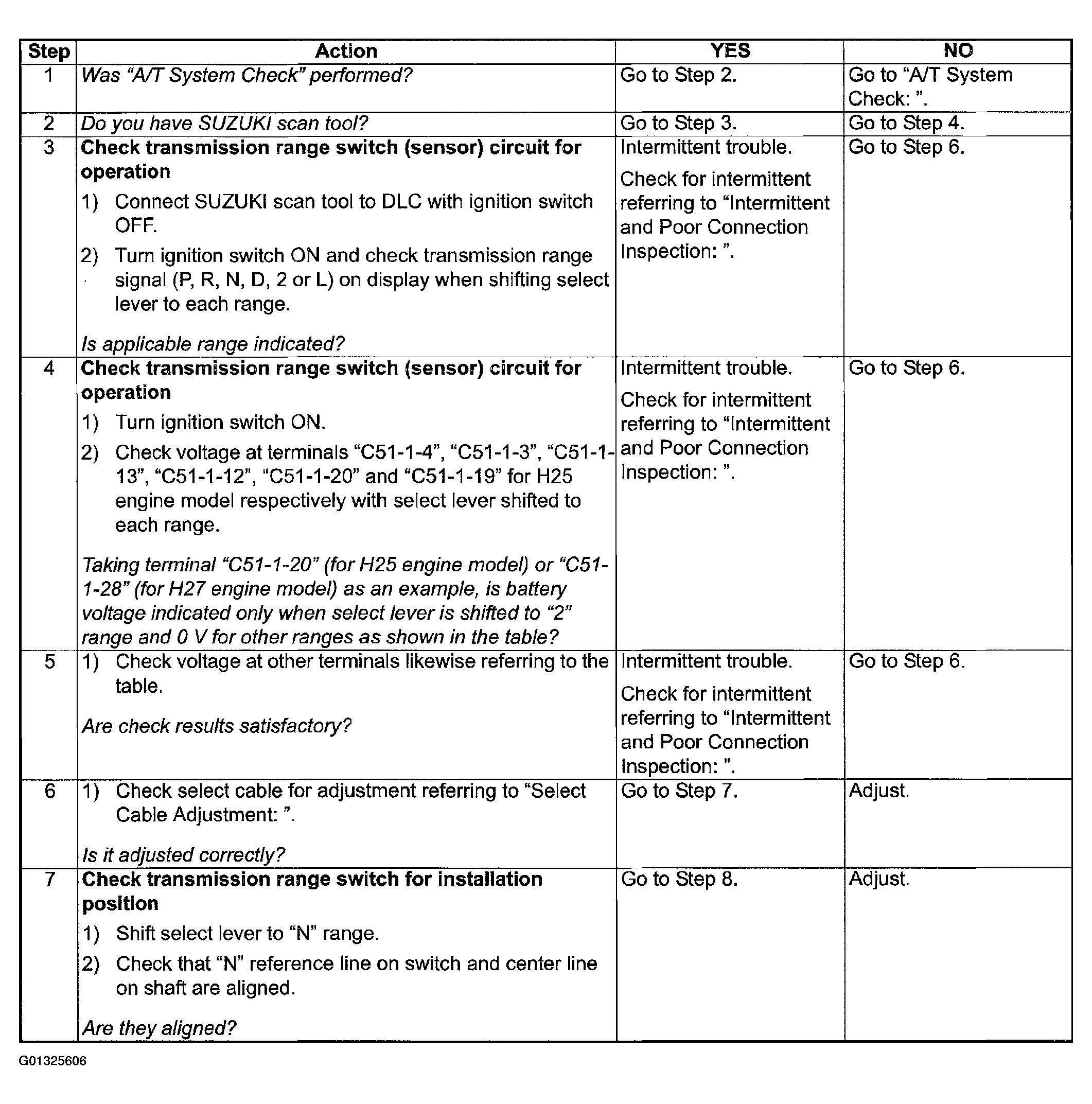

Fig 1: DTC P0705/P0707 Trouble Shooting Chart (1 Of 2)
G01325606Courtesy of SUZUKI OF AMERICA CORP.

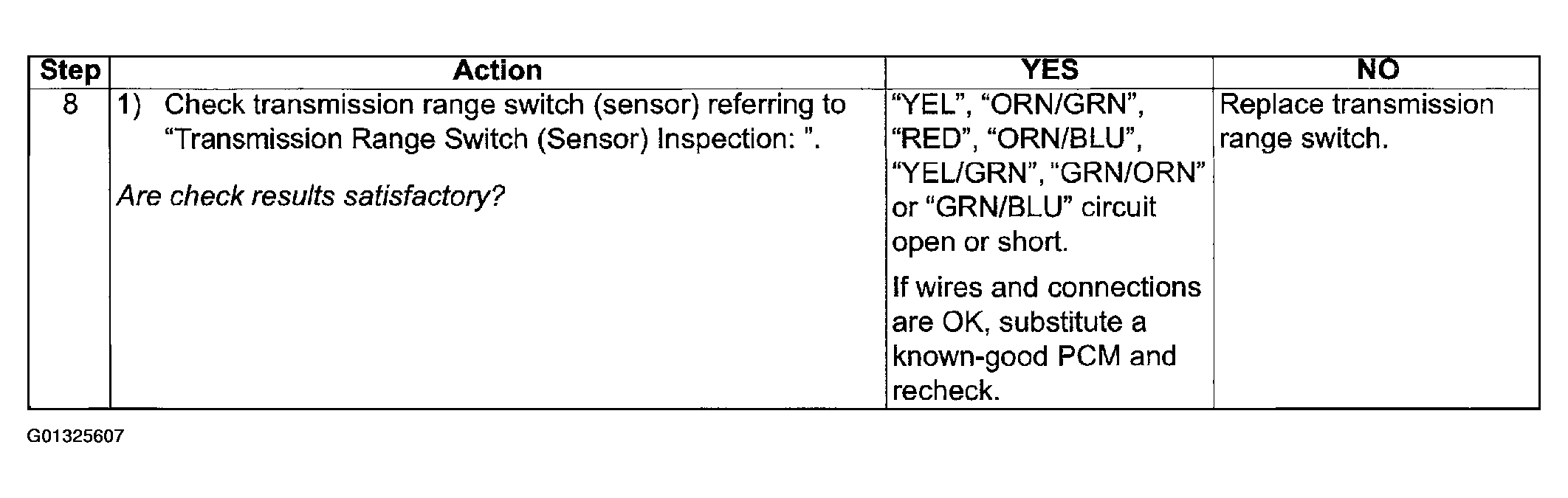

Fig 2: DTC P0705/P0707 Trouble Shooting Chart (2 Of 2)
G01325607Courtesy of SUZUKI OF AMERICA CORP.

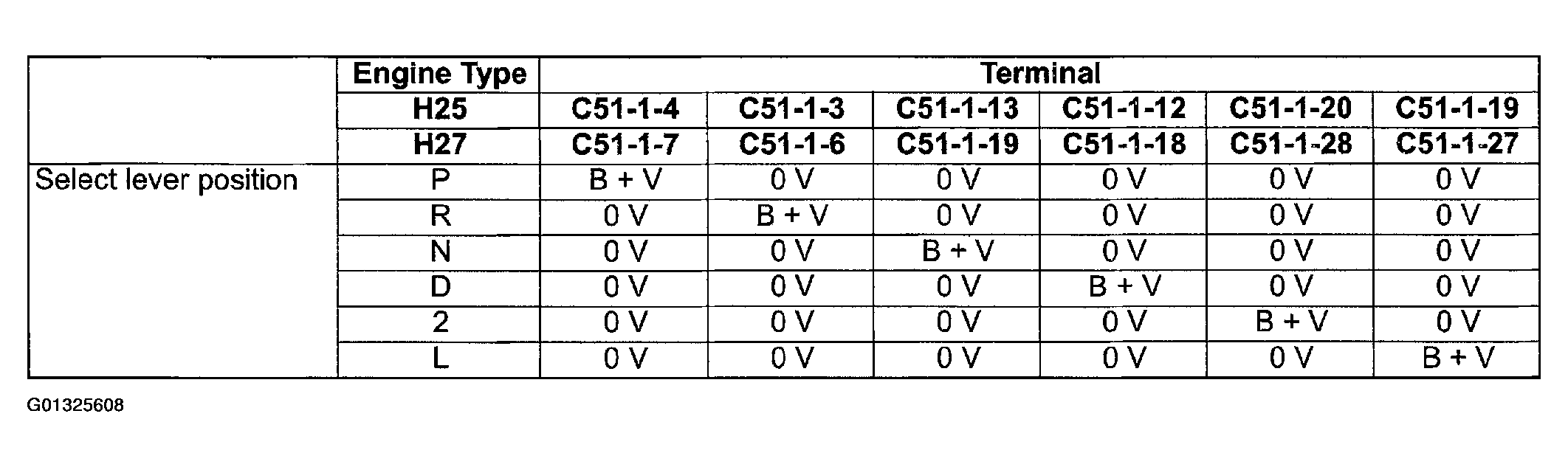

Fig 3: Step 4 and 5 Table
G01325608Courtesy of SUZUKI OF AMERICA CORP.
