Mass Air Flow (MAF) Sensor Removal & Installation: Removal
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

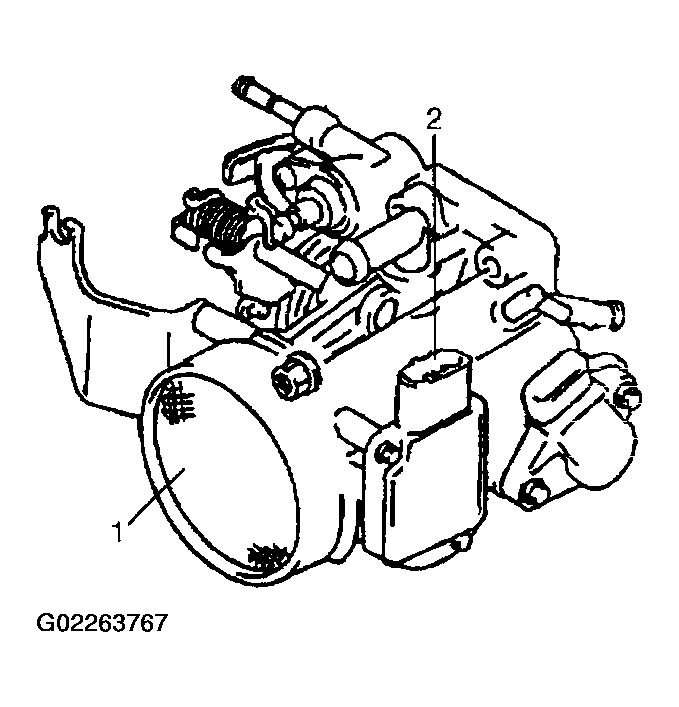

- Disconnect negative cable at battery and coupler from MAF sensor (2).
- Remove throttle body (1) referring to INTAKE MANIFOLD
.CAUTION:
- Do not remove MAF sensor from throttle body.
- Do not expose MAF sensor (throttle body) to any shock.
- Do not blow compressed air by using air gun or the like.
- Do not put finger or any other object into MAF sensor and keep away from net. Malfunction may occur.
