Idle Air Control Motor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect IAC motor connector. Check resistance between IAC motor connector terminal No. 2 and either terminal No. 1 or 3. Also check resistance between IAC motor connector terminal No. 5 and either terminals No. 4 or 6. Each resistance reading should be 28-33 ohms (Outlander: 26.5-32.5) at 68°F (20°C). If resistance readings are not as specified, replace IAC body assembly. See REMOVAL & INSTALLATION article. If resistance readings are as specified, go to next step.
- If using lab scope, go to step 4. Engine coolant temperature must be 68°F (20°C) or less. If not, an Engine Coolant Temperature (ECT) sensor that is appropriate temperature can plugged into ECT sensor connector. Turn ignition on (engine off) and listen for IAC motor operation sound. Operational sound should be heard when ignition is turned on and off.
- For testing IAC control circuit, perform diagnostic procedure for DTC P0505. See DIAGNOSTIC TESTS in appropriate SELF-DIAGNOSTICS article.

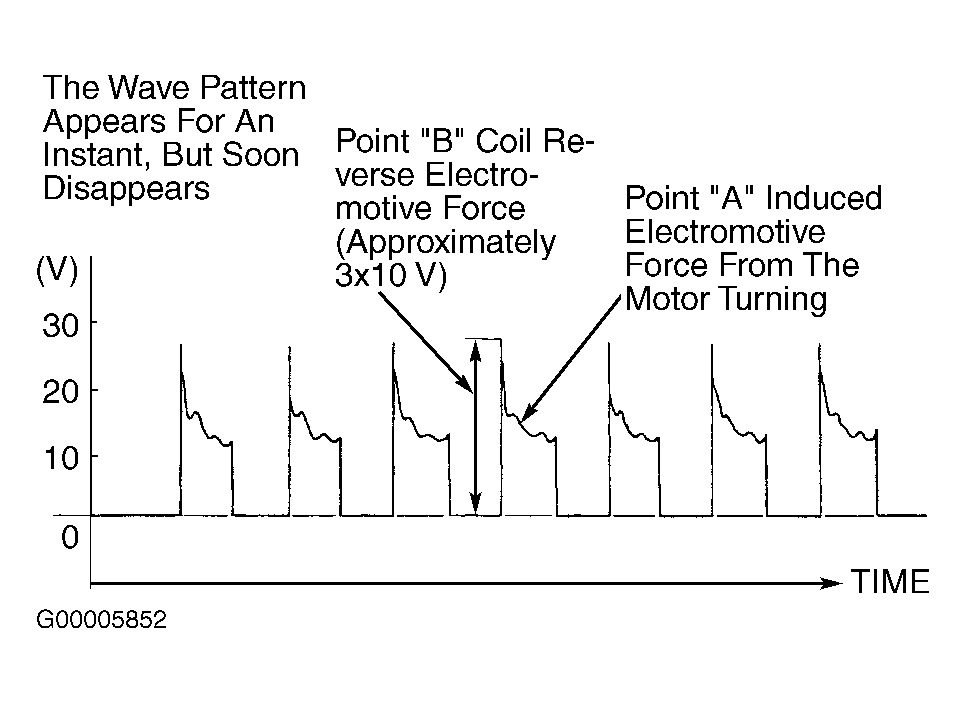

- Using test harness, or backprobing, connect lab scope pick-up, in turn, to IAC motor connector terminals No. 1, 3, 4, and 6. With engine running, compare IAC motor waveform to normal waveform. See Fig 1.
